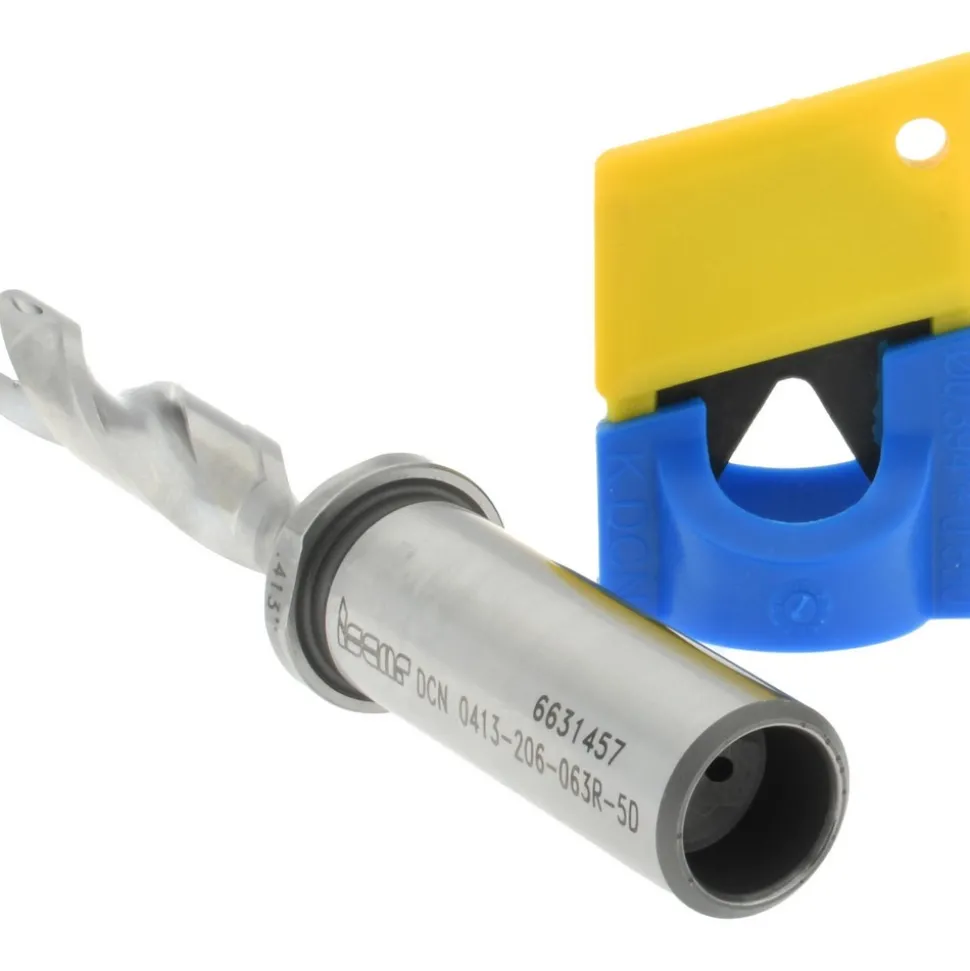

Replaceable-Tip Drill: 0.413 to 0.429" Dia, 2.06" Max Depth, 5/8" Straight-Cylindrical Shank

Replaceable-Tip Drill: 0.413 to 0.429″ Dia, 2.06″ Max Depth, 5/8″ Straight-Cylindrical Shank

128,89 $

SKU: SKUvRQHkiuVKe Categories: Indexable Cutting Tools, Indexable Holemaking, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Minimum Drill Diameter (Decimal Inch): 0.4130	Maximum Drill Diameter (Decimal Inch): 0.4290
Drill Depth by Diameter Ratio: 5xD	Maximum Drill Depth (Decimal Inch): 2.0600
Shank Type: Straight-Cylindrical	Shank Diameter (Inch): 5/8
Shank Diameter (Decimal Inch): 0.6250	Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP
Overall Length (Decimal Inch): 4.5900	Series: SumoCham
Toolholder Style: DCN	Standards: ISO 13399
Coolant Through: Yes	UNSPSC Code: 23291502
Country of Origin: Israel
Minimum Drill Diameter (Decimal Inch): 0.4130
Maximum Drill Diameter (Decimal Inch): 0.4290
Drill Depth by Diameter Ratio: 5xD
Maximum Drill Depth (Decimal Inch): 2.0600
Shank Type: Straight-Cylindrical
Shank Diameter (Inch): 5/8
Shank Diameter (Decimal Inch): 0.6250
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP
Overall Length (Decimal Inch): 4.5900
Series: SumoCham
Toolholder Style: DCN
Standards: ISO 13399
Coolant Through: Yes
UNSPSC Code: 23291502
Country of Origin: Israel
