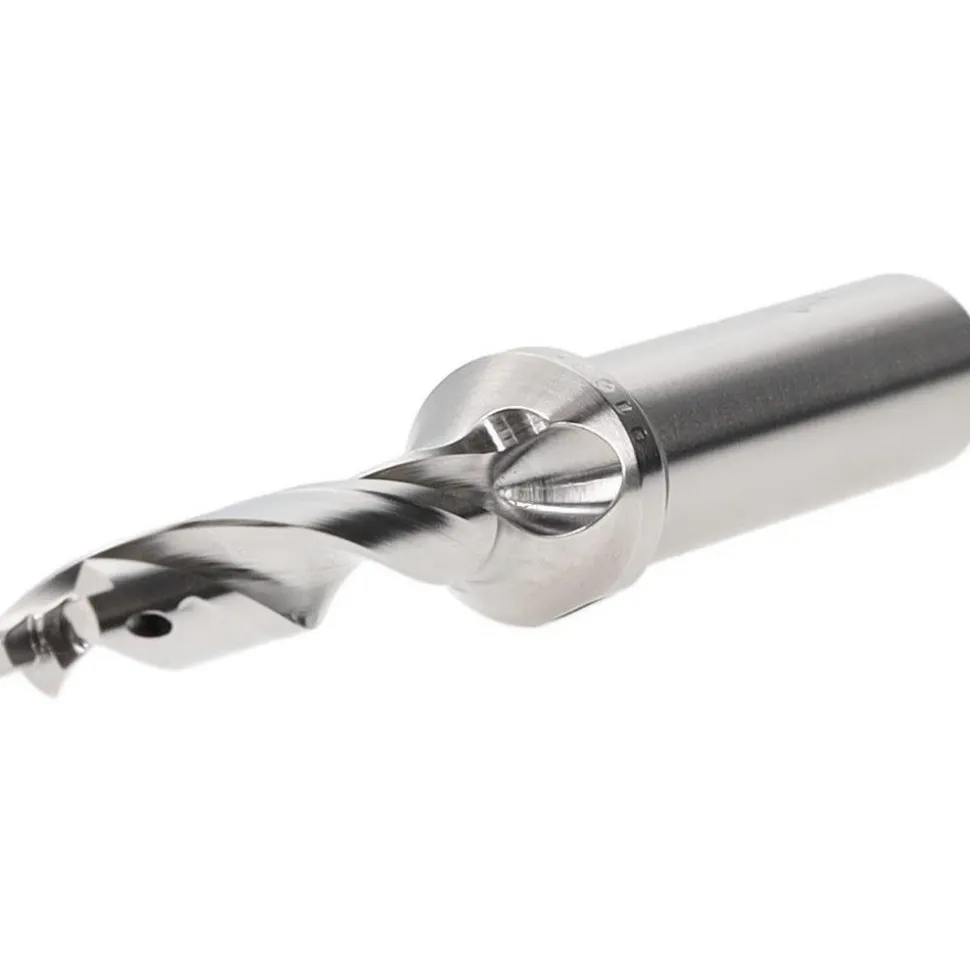

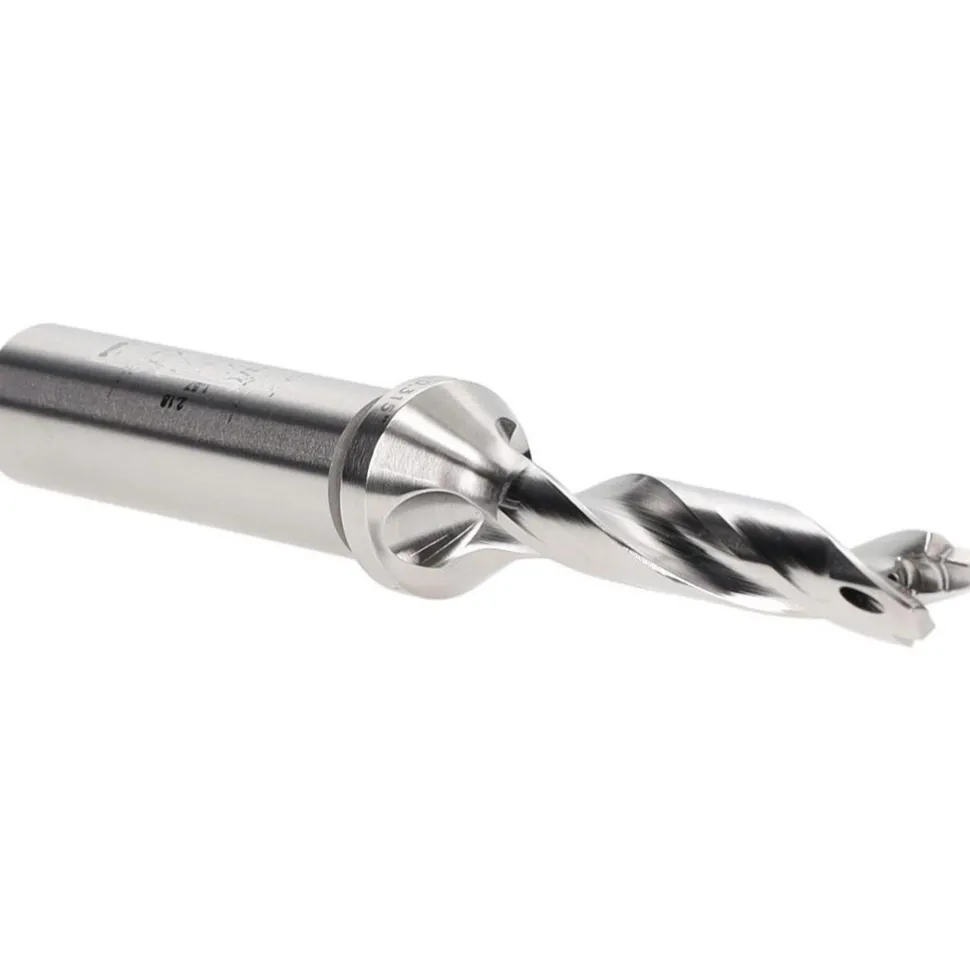

Replaceable-Tip Drill: 0.315 to 0.331″ Dia, 1.57″ Max Depth, 1/2″ Straight-Cylindrical Shank
Original price was: 283,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.3150 | Maximum Drill Diameter (Decimal Inch): 0.3310 |
| Drill Depth by Diameter Ratio: 5xD | Maximum Drill Depth (Decimal Inch): 1.5700 |
| Shank Type: Straight-Cylindrical | Shank Diameter (Inch): 1/2 |
| Shank Diameter (Decimal Inch): 0.5000 | Insert Seat Size: 8 |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | Overall Length (Decimal Inch): 3.9500 |
| Series: SumoCham | Toolholder Style: DCN |
| Standards: ISO 13399 | Coolant Through: Yes |
| UNSPSC Code: 23291502 | Country of Origin: Israel |
| Minimum Drill Diameter (Decimal Inch): 0.3150 | |
| Maximum Drill Diameter (Decimal Inch): 0.3310 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Maximum Drill Depth (Decimal Inch): 1.5700 | |
| Shank Type: Straight-Cylindrical | |
| Shank Diameter (Inch): 1/2 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Insert Seat Size: 8 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | |
| Overall Length (Decimal Inch): 3.9500 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 91104836 |
| Mfr# | 3202617 |
