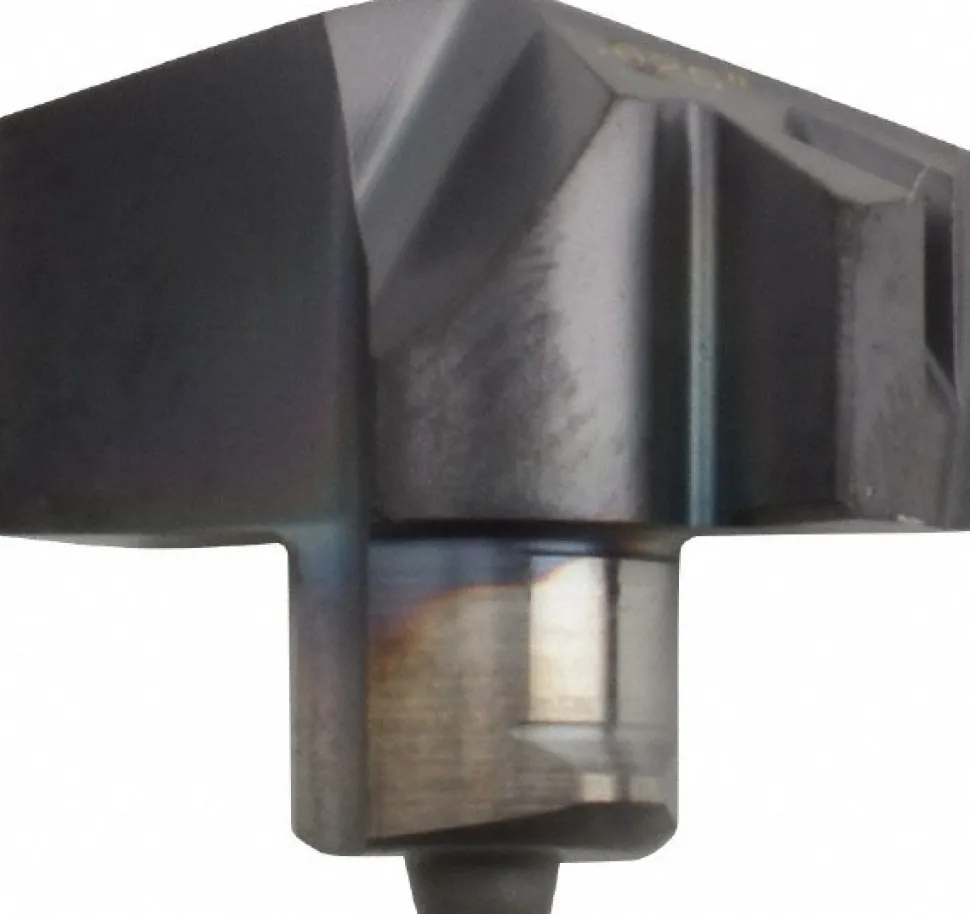

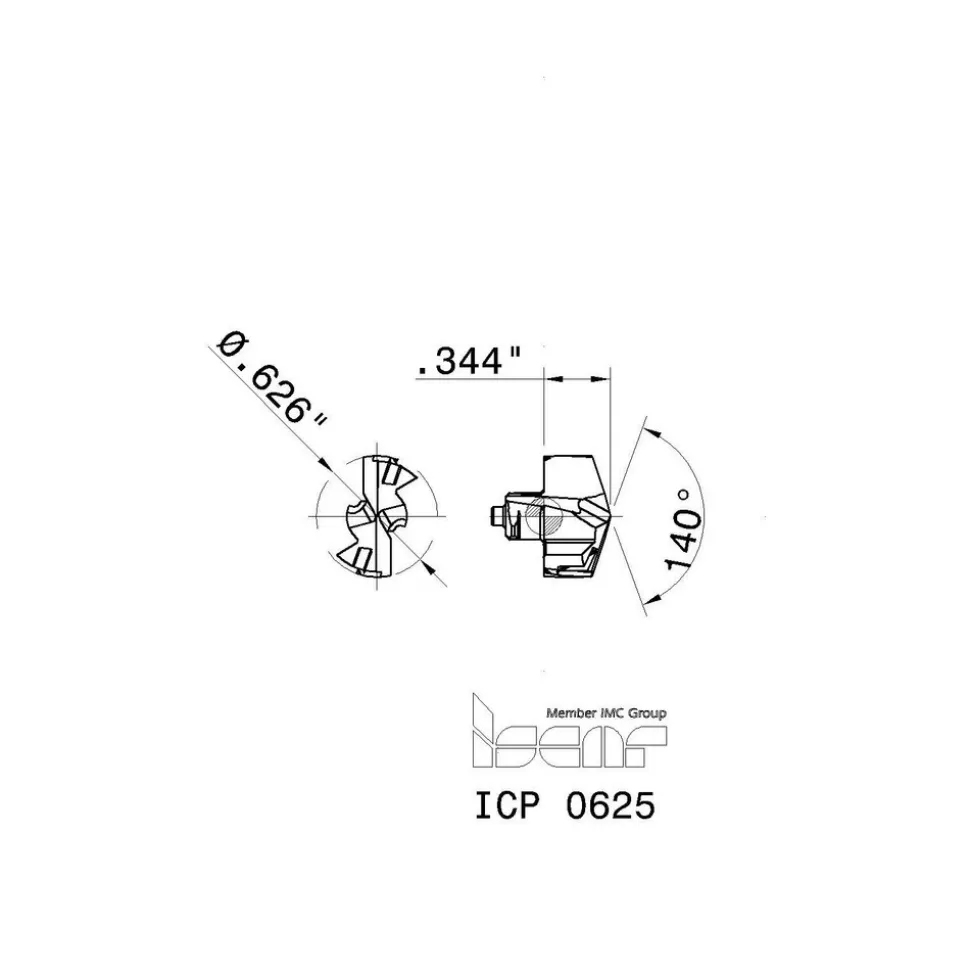

Replaceable Drill Tip: ICP0625 IC908, 0.6260″ Dia, 15.90 mm Dia, 140 deg Point
Original price was: 131,00 $.90,99 $Current price is: 90,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.6260 | Cutting Diameter (mm): 15.90 |
| Tip Material: Solid Carbide | Manufacturer Grade: IC908 |
| Material Grade: Submicron | Series: ICP |
| Coating Process: PVD | Insert Geometry: P |
| Insert Seat Size: 15 | Functional Length (Decimal Inch): 0.2482 |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P |
| Secondary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium | Secondary Workpiece Material Code: S; H; K; M |
| Standards: ISO 13399 | Height (Decimal Inch): 0.3439 |
| Overall Length/Projection (Decimal Inch): 0.3439 | Web Thinning: Web Thinned |
| Drill Point Angle: 140 | Flute Type: Helical |
| Insert Holding Method: Clamp | ISO Number: ICP 159 |
| Coolant Through: No | Flute Length (mm): 6.00 |
| Point Type: Standard | Spiral Type: Regular Spiral |
| Height (Inch): 11/32 | Style: ICP |
| Applications: Drilling; Chamfering; Gundrills; Hole Making | UNSPSC Code: 23242105 |
| Coating/Finish: TiAlN | Included Angle Degree: 140 |
| Number Of Flutes: 2 | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.6260 | |
| Cutting Diameter (mm): 15.90 | |
| Tip Material: Solid Carbide | |
| Manufacturer Grade: IC908 | |
| Material Grade: Submicron | |
| Series: ICP | |
| Coating Process: PVD | |
| Insert Geometry: P | |
| Insert Seat Size: 15 | |
| Functional Length (Decimal Inch): 0.2482 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium | |
| Secondary Workpiece Material Code: S; H; K; M | |
| Standards: ISO 13399 | |
| Height (Decimal Inch): 0.3439 | |
| Overall Length/Projection (Decimal Inch): 0.3439 | |
| Web Thinning: Web Thinned | |
| Drill Point Angle: 140 | |
| Flute Type: Helical | |
| Insert Holding Method: Clamp | |
| ISO Number: ICP 159 | |
| Coolant Through: No | |
| Flute Length (mm): 6.00 | |
| Point Type: Standard | |
| Spiral Type: Regular Spiral | |
| Height (Inch): 11/32 | |
| Style: ICP | |
| Applications: Drilling; Chamfering; Gundrills; Hole Making | |
| UNSPSC Code: 23242105 | |
| Coating/Finish: TiAlN | |
| Included Angle Degree: 140 | |
| Number Of Flutes: 2 | |
| Country of Origin: Israel |
| MSC# | 63918791 |
| Mfr# | 5508454 |
