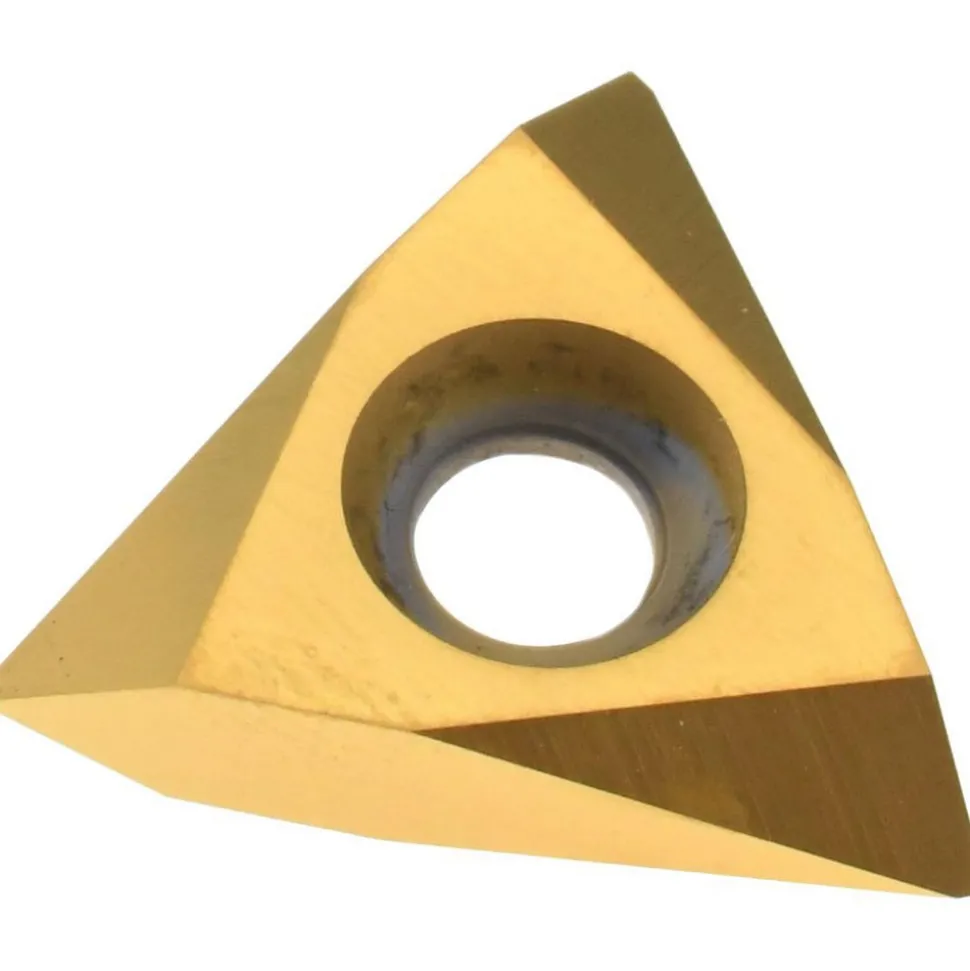

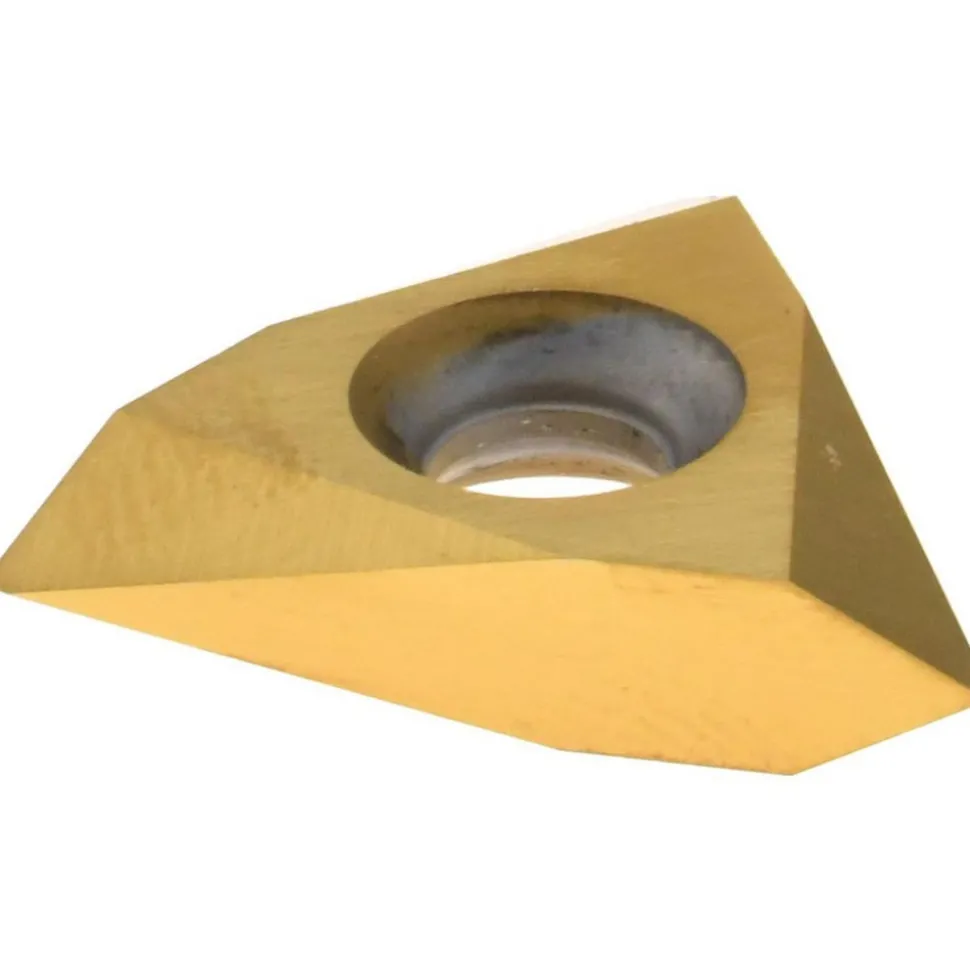

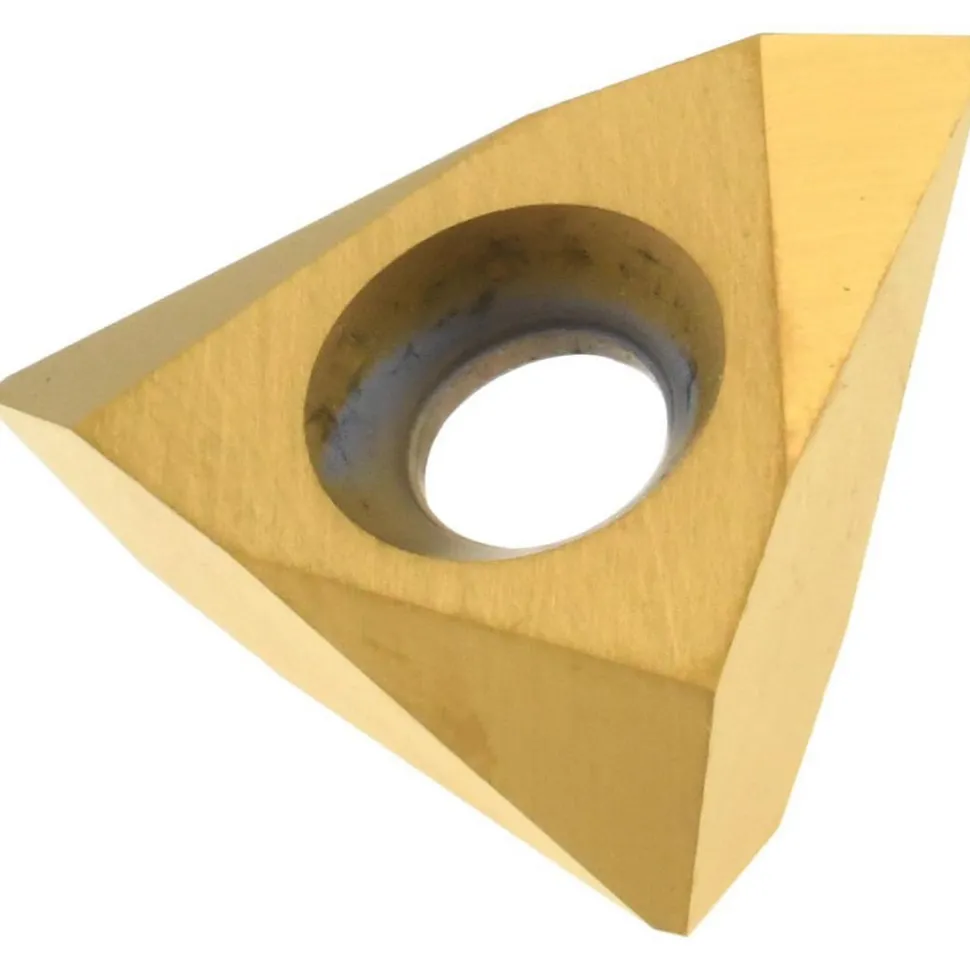

On-Edge Threading Insert: 60 ° V

28,89 $

Specifications

Insert Style: TNMC	Insert Size Code: 43
Insert Material: Solid Carbide	Manufacturer Grade: TCN55
Thread Standard: 60 Deg V	Thickness (Inch): 3/16
Inscribed Circle (Decimal Inch): 0.5000	Inscribed Circle (Inch): 1/2
Hole Diameter (Decimal Inch): 0.2040	Material Grade: Submicron
Thickness (Decimal Inch – 4 Decimals): 0.1875	Coating/Finish: Titanium Nitride; PVD TiN
UNSPSC Code: 23291804	Country of Origin: VARIOUS
Insert Style: TNMC
Insert Size Code: 43
Insert Material: Solid Carbide
Manufacturer Grade: TCN55
Thread Standard: 60 Deg V
Thickness (Inch): 3/16
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Hole Diameter (Decimal Inch): 0.2040
Material Grade: Submicron
Thickness (Decimal Inch – 4 Decimals): 0.1875
Coating/Finish: Titanium Nitride; PVD TiN
UNSPSC Code: 23291804
Country of Origin: VARIOUS
