Sale!

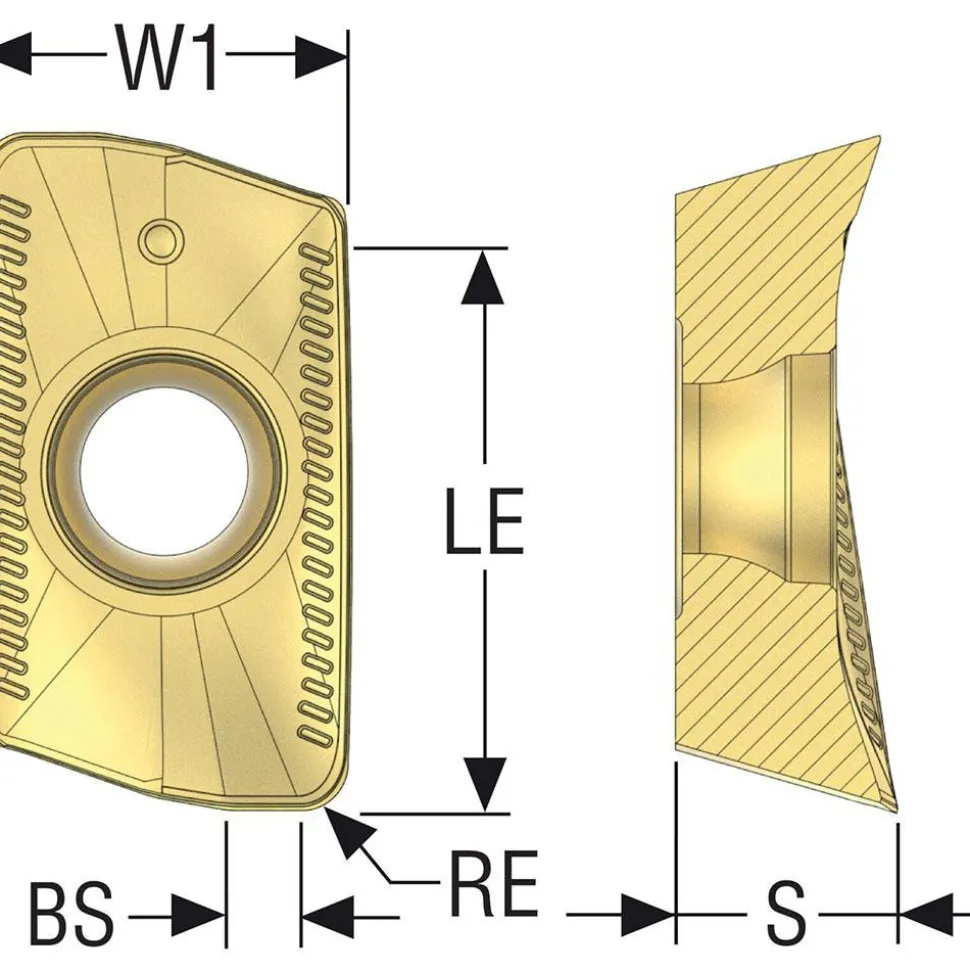

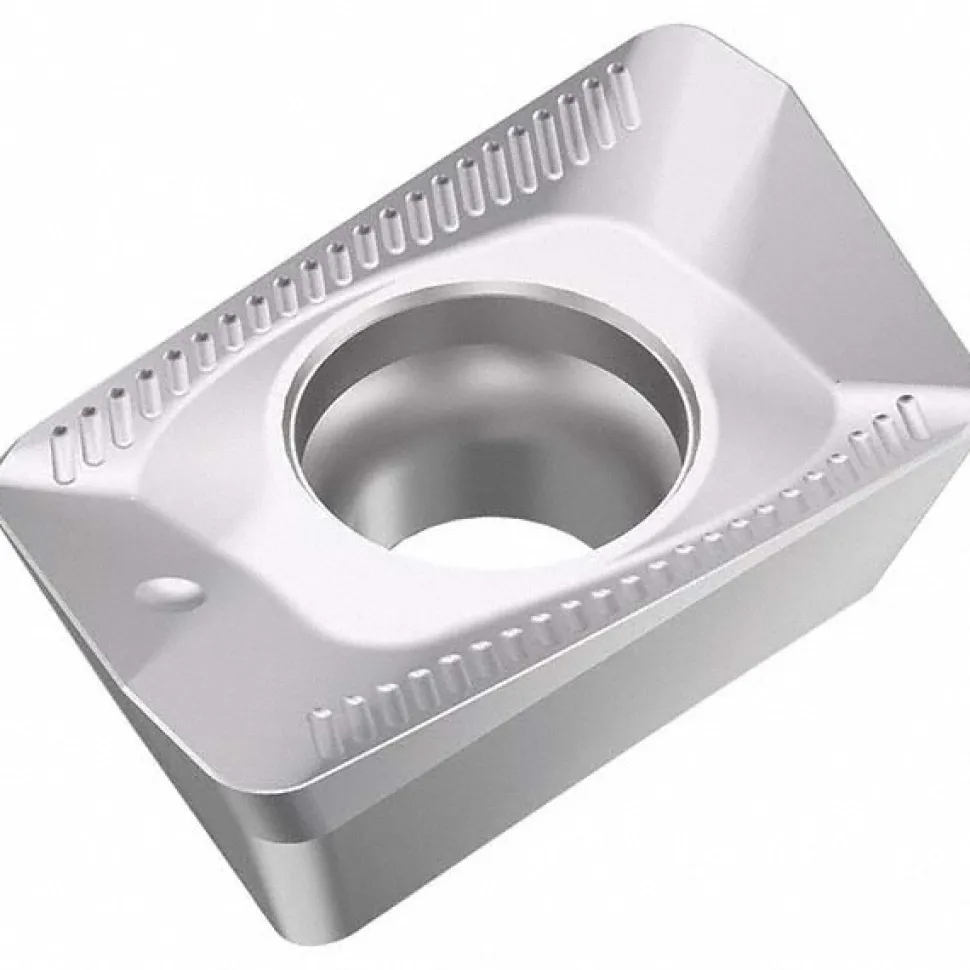

Milling Inserts: Insert Style: XOMX; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 32,00 $.24,89 $Current price is: 24,89 $.
Specifications
| Insert Style: XOMX | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: MP2501 | Corner Radius (Decimal Inch): 0.0315 |
| Number Of Cutting Edges: 2 | Thickness (Decimal Inch – 4 Decimals): 0.1996 |
| Thickness (mm): 5.07 | Coating/Finish: TiCN; Al2O3 |
| Relief Angle: 15.000 | Insert Size Code: 120408 |
| Material Grade: Fine Grain | Inscribed Circle (Decimal Inch): 0.3228 |
| Inscribed Circle (mm): 8.20 | Thickness Range (Decimal Inch): 0.1850 to 0.2000 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (mm): 5.80 | Maximum Depth of Cut (Decimal Inch): 0.4567 |
| Series: XOMX-12 | Coating Process: CVD |
| Hole Diameter (mm): 0.15 | Hole Diameter (Decimal Inch): 0.1535 |
| Cutting Edge Effective Length (Decimal Inch): 0.4567 | Rake: Positive |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium | Secondary Workpiece Material Code: S; K; M |
| Ansi Code: XOMX120408TR-ME08 | Iso Code: XOMX120408TR-ME08 |
| Standards: ISO | Rake Angle: 20.100 |
| Cutting Edge Style: T-Land | Manufacturers Catalog Number: XOMX120408TR-ME08 |
| Cutter Series Compatibility: R217.69-12; R220.69-12 | Chip Breaker: ME08 |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape: Parallelogram | Insert Holding Method: Screw |
| Coating Classification: Duratomic | Single or Double Sided Insert: Single |
| Included Angle Degree: 90 | Length (mm): 11.60 |
| Width (Decimal Inch – 4 Decimals): 0.3228 | Width (mm – 2 Decimals): 8.20 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4567 |
| Country of Origin: Sweden | |
| Insert Style: XOMX | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: MP2501 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1996 | |
| Thickness (mm): 5.07 | |
| Coating/Finish: TiCN; Al2O3 | |
| Relief Angle: 15.000 | |
| Insert Size Code: 120408 | |
| Material Grade: Fine Grain | |
| Inscribed Circle (Decimal Inch): 0.3228 | |
| Inscribed Circle (mm): 8.20 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 | |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 5.80 | |
| Maximum Depth of Cut (Decimal Inch): 0.4567 | |
| Series: XOMX-12 | |
| Coating Process: CVD | |
| Hole Diameter (mm): 0.15 | |
| Hole Diameter (Decimal Inch): 0.1535 | |
| Cutting Edge Effective Length (Decimal Inch): 0.4567 | |
| Rake: Positive | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium | |
| Secondary Workpiece Material Code: S; K; M | |
| Ansi Code: XOMX120408TR-ME08 | |
| Iso Code: XOMX120408TR-ME08 | |
| Standards: ISO | |
| Rake Angle: 20.100 | |
| Cutting Edge Style: T-Land | |
| Manufacturers Catalog Number: XOMX120408TR-ME08 | |
| Cutter Series Compatibility: R217.69-12; R220.69-12 | |
| Chip Breaker: ME08 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Shape: Parallelogram | |
| Insert Holding Method: Screw | |
| Coating Classification: Duratomic | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Length (mm): 11.60 | |
| Width (Decimal Inch – 4 Decimals): 0.3228 | |
| Width (mm – 2 Decimals): 8.20 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4567 | |
| Country of Origin: Sweden |
| MSC# | 96598545 |
| Mfr# | 03272827 |
