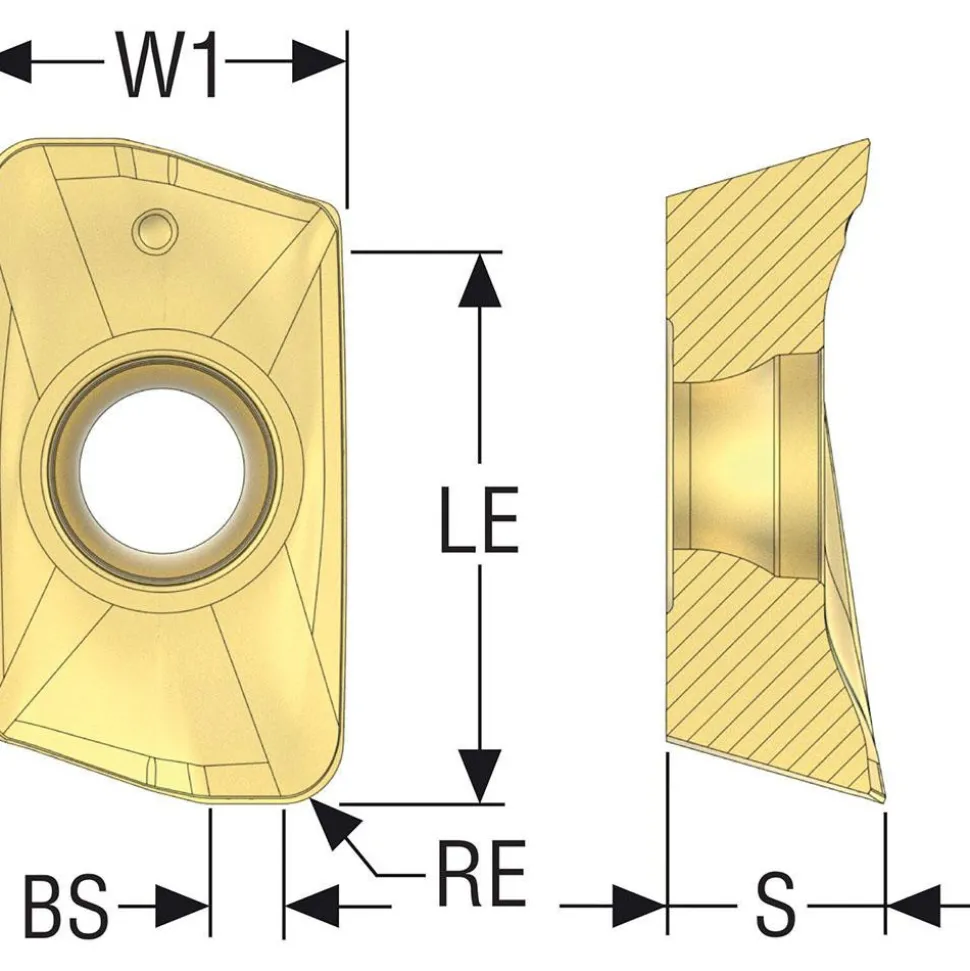

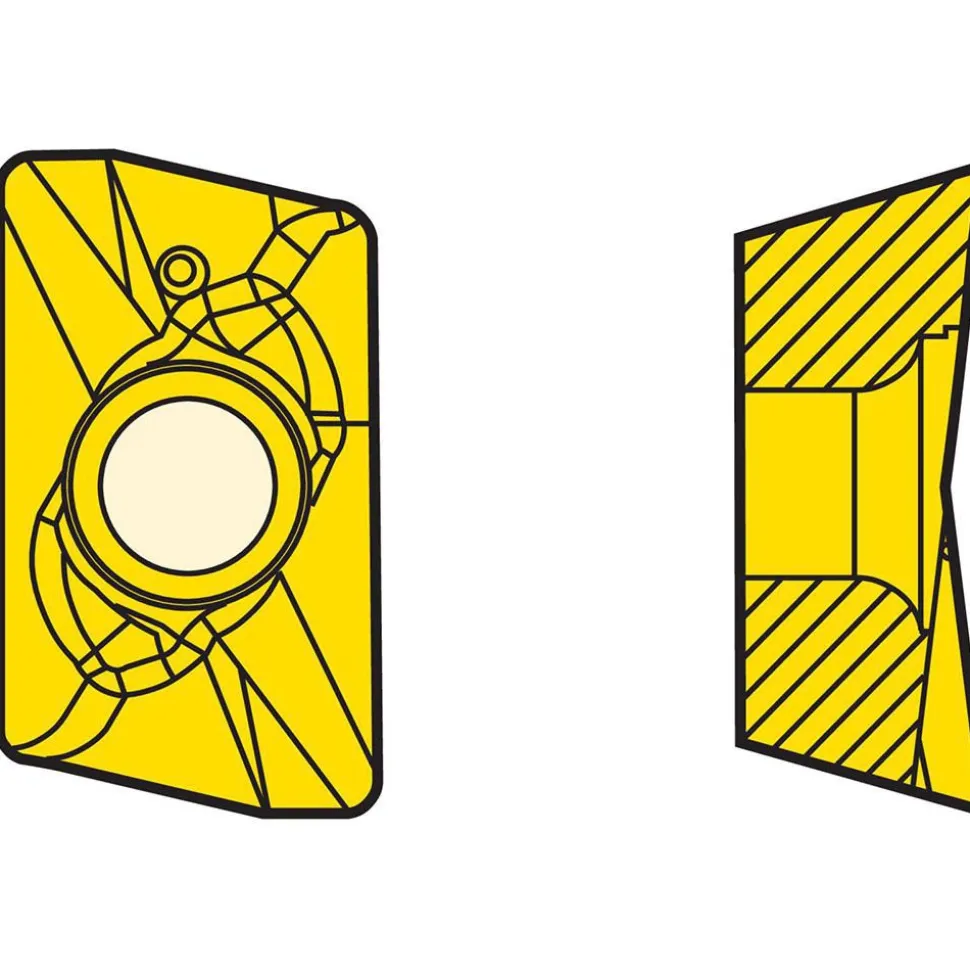

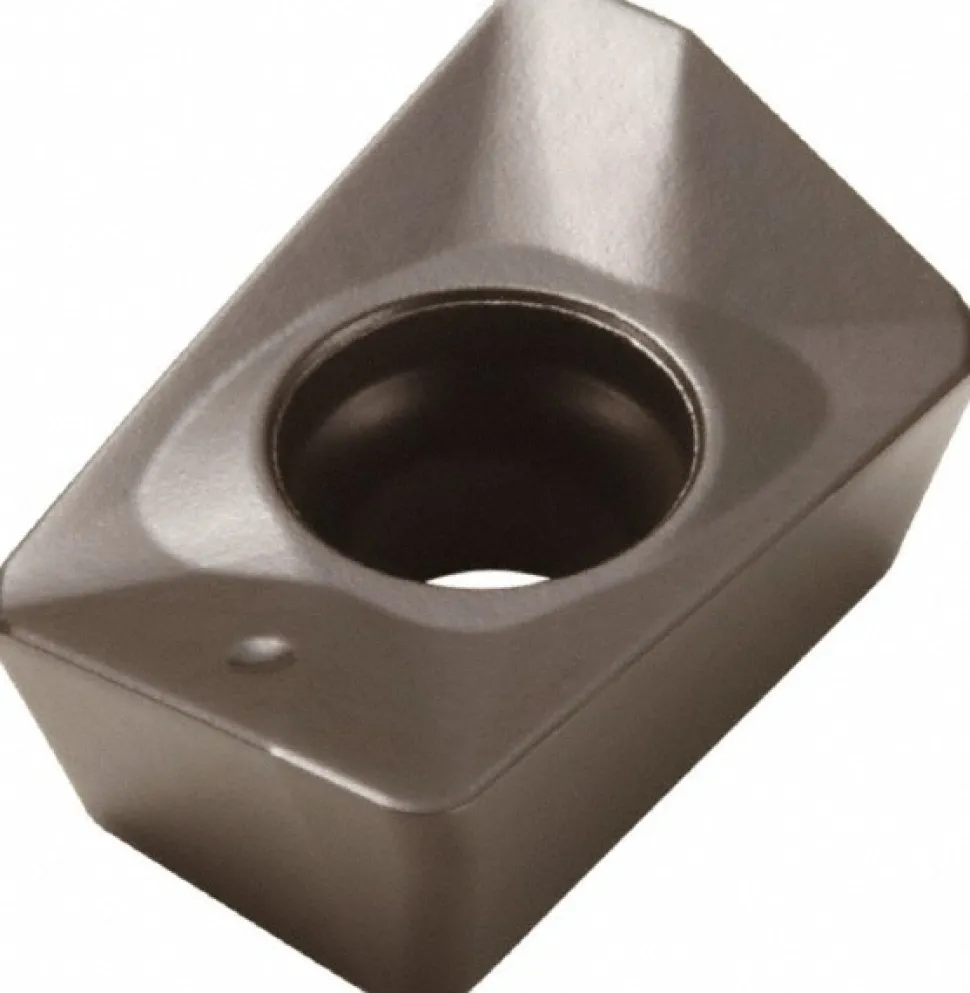

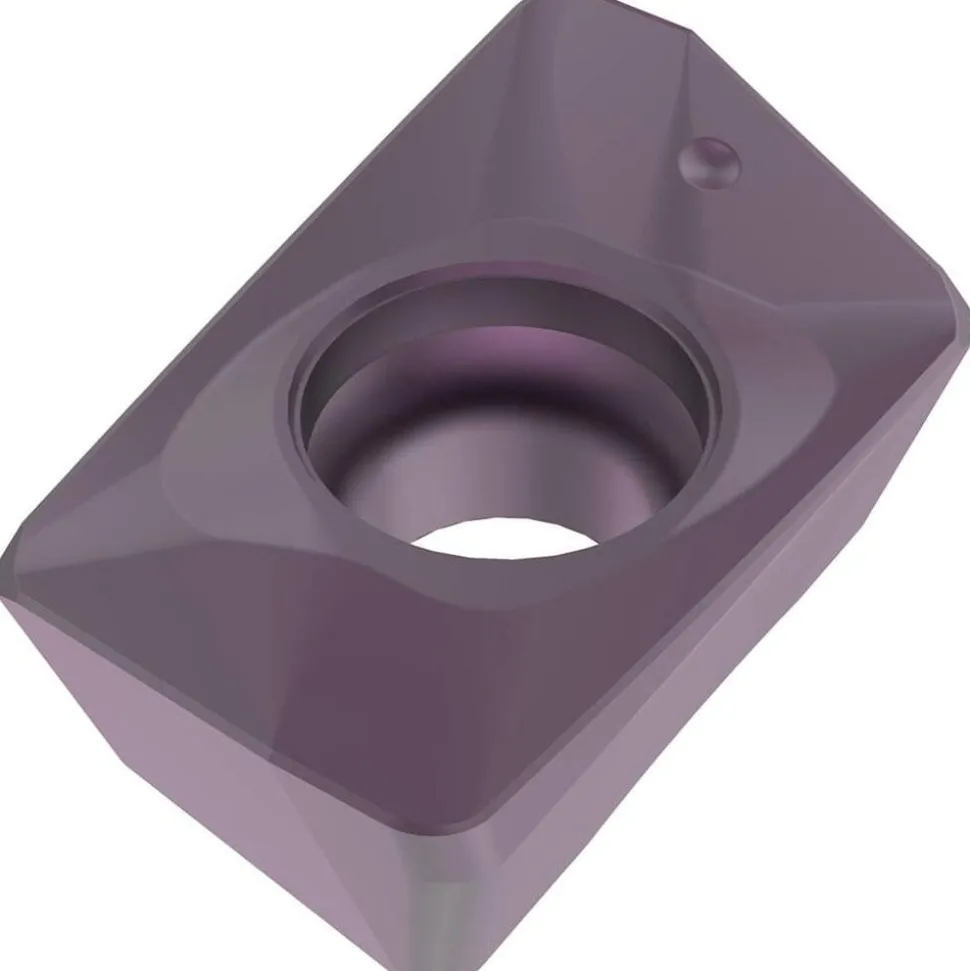

Milling Inserts: Insert Style: XOMX; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Parallelogram
23,89 $
Specifications
| Insert Style: XOMX | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: MK2050 | Corner Radius (Decimal Inch): 0.0315 |
| Number Of Cutting Edges: 2 | Thickness (Decimal Inch – 4 Decimals): 0.1996 |
| Coating/Finish: TiSiN; TiAlN | Relief Angle: 15.000 |
| Insert Size Code: 120408 | Material Grade: Medium Grain |
| Thickness (Inch): 1/4 | Inscribed Circle (Decimal Inch): 0.3228 |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 | Length Range (Decimal Inch): 0.4500 to 0.5000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.4567 |
| Series: XOMX-12 | Coating Process: PVD |
| Hole Diameter (Decimal Inch): 0.1535 | Cutting Edge Effective Length (Decimal Inch): 0.4567 |
| Rake: Positive | Primary Workpiece Material: Cast Iron |
| Primary Workpiece Material Code: K | Secondary Workpiece Material: Hard Material; Steel |
| Secondary Workpiece Material Code: P; H | Ansi Code: XOMX120408TR-M12 |
| Iso Code: XOMX120408TR-M12 | Standards: ISO |
| Rake Angle: 10.400 | Cutting Edge Style: T-Land |
| Manufacturers Catalog Number: XOMX120408TR-M12 | Cutter Series Compatibility: R217.69-12; R220.69-12 |
| Chip Breaker: M12 | UNSPSC Code: 23291601 |
| Material Application: Hard Material; Cast Iron; Steel | Shape: Parallelogram |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.3228 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.4567 | Country of Origin: Sweden |
| Insert Style: XOMX | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: MK2050 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1996 | |
| Coating/Finish: TiSiN; TiAlN | |
| Relief Angle: 15.000 | |
| Insert Size Code: 120408 | |
| Material Grade: Medium Grain | |
| Thickness (Inch): 1/4 | |
| Inscribed Circle (Decimal Inch): 0.3228 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 | |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.4567 | |
| Series: XOMX-12 | |
| Coating Process: PVD | |
| Hole Diameter (Decimal Inch): 0.1535 | |
| Cutting Edge Effective Length (Decimal Inch): 0.4567 | |
| Rake: Positive | |
| Primary Workpiece Material: Cast Iron | |
| Primary Workpiece Material Code: K | |
| Secondary Workpiece Material: Hard Material; Steel | |
| Secondary Workpiece Material Code: P; H | |
| Ansi Code: XOMX120408TR-M12 | |
| Iso Code: XOMX120408TR-M12 | |
| Standards: ISO | |
| Rake Angle: 10.400 | |
| Cutting Edge Style: T-Land | |
| Manufacturers Catalog Number: XOMX120408TR-M12 | |
| Cutter Series Compatibility: R217.69-12; R220.69-12 | |
| Chip Breaker: M12 | |
| UNSPSC Code: 23291601 | |
| Material Application: Hard Material; Cast Iron; Steel | |
| Shape: Parallelogram | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.3228 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4567 | |
| Country of Origin: Sweden |
| MSC# | 65947269 |
| Mfr# | 02827870 |
| Big Book# | 665 |
