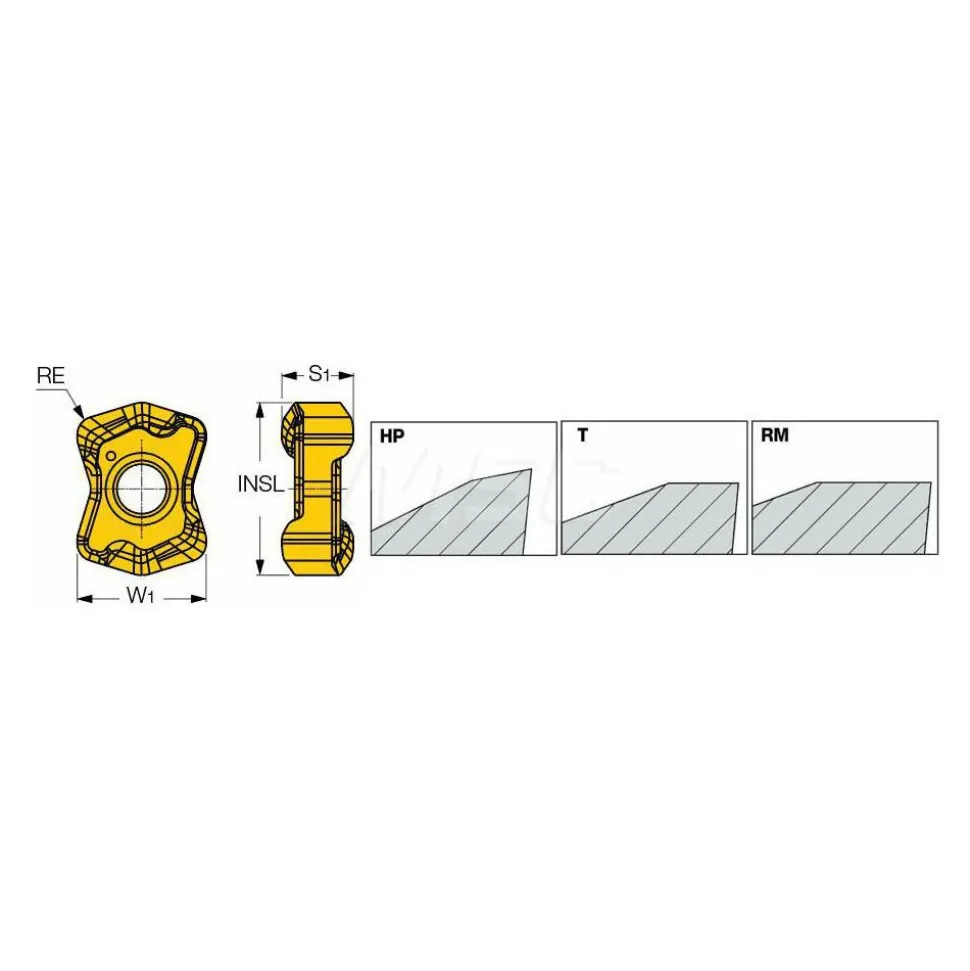

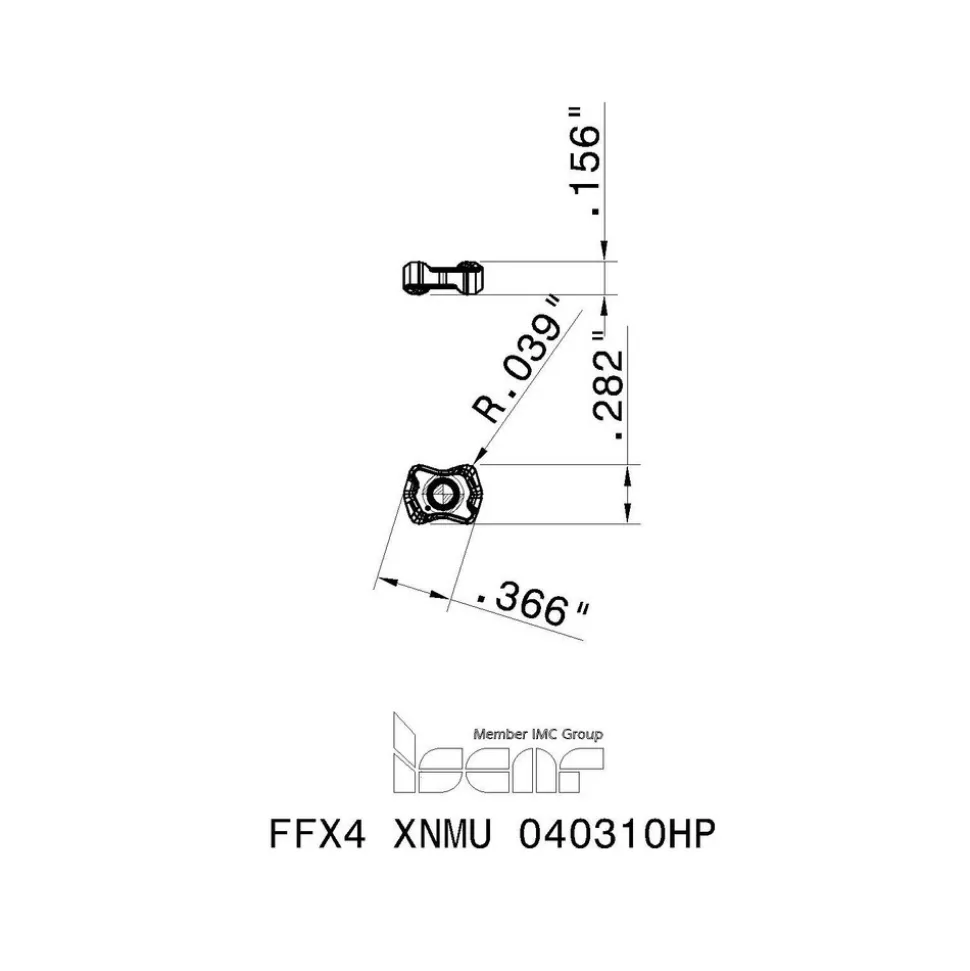

Milling Inserts: Insert Style: XNMU; Insert Size: 04; Insert Material: Solid Carbide; Insert Shape: Bone
26,99 $
Specifications
| Insert Style: XNMU | Insert Size: 04 |
| Insert Material: Solid Carbide | Insert Shape: Bone |
| Manufacturer Grade: IC882 | Corner Radius (Decimal Inch): 0.0394 |
| Corner Radius (mm): 1.00 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch – 4 Decimals): 0.1563 | Thickness (mm): 6.00 |
| Coating/Finish: TiSiN; TiAlSiN; AlTiN | Relief Angle: 0.000 |
| Insert Size Code: 040310 | Thickness (Inch): 5/32 |
| Inscribed Circle (Decimal Inch): 0.2820 | Thickness Range (Decimal Inch): 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | Length Range (Decimal Inch): 0.3200 to 0.4000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (mm): 0.90 |
| Maximum Depth of Cut (Decimal Inch): 0.0315 | Series: LOGIQ4FEED |
| Coating Process: PVD | Cutting Edge Effective Length (Decimal Inch): 0.0315 |
| Rake: Negative | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code: S; M | Secondary Workpiece Material Code: S |
| Ansi Code: FFX4 XNMU 040310HP IC882 | Iso Code: FFX4 XNMU 040310HP |
| Standards: ISO 13399; ANSI | Cutting Edge Style: Honed |
| Manufacturers Catalog Number: FFX4 XNMU 040310HP IC882 | Cutter Series Compatibility: FFX4 |
| Chip Breaker: HP | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Double |
| Included Angle Degree: 90 | Length (mm): 9.58 |
| Width (Decimal Inch – 4 Decimals): 0.2820 | Width (mm – 2 Decimals): 7.16 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.3770 |
| Country of Origin: Israel | |
| Insert Style: XNMU | |
| Insert Size: 04 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Bone | |
| Manufacturer Grade: IC882 | |
| Corner Radius (Decimal Inch): 0.0394 | |
| Corner Radius (mm): 1.00 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1563 | |
| Thickness (mm): 6.00 | |
| Coating/Finish: TiSiN; TiAlSiN; AlTiN | |
| Relief Angle: 0.000 | |
| Insert Size Code: 040310 | |
| Thickness (Inch): 5/32 | |
| Inscribed Circle (Decimal Inch): 0.2820 | |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | |
| Length Range (Decimal Inch): 0.3200 to 0.4000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 0.90 | |
| Maximum Depth of Cut (Decimal Inch): 0.0315 | |
| Series: LOGIQ4FEED | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.0315 | |
| Rake: Negative | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material Code: S | |
| Ansi Code: FFX4 XNMU 040310HP IC882 | |
| Iso Code: FFX4 XNMU 040310HP | |
| Standards: ISO 13399; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: FFX4 XNMU 040310HP IC882 | |
| Cutter Series Compatibility: FFX4 | |
| Chip Breaker: HP | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Double | |
| Included Angle Degree: 90 | |
| Length (mm): 9.58 | |
| Width (Decimal Inch – 4 Decimals): 0.2820 | |
| Width (mm – 2 Decimals): 7.16 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.3770 | |
| Country of Origin: Israel |
| MSC# | 31320708 |
| Mfr# | 3336664 |
