Sale!

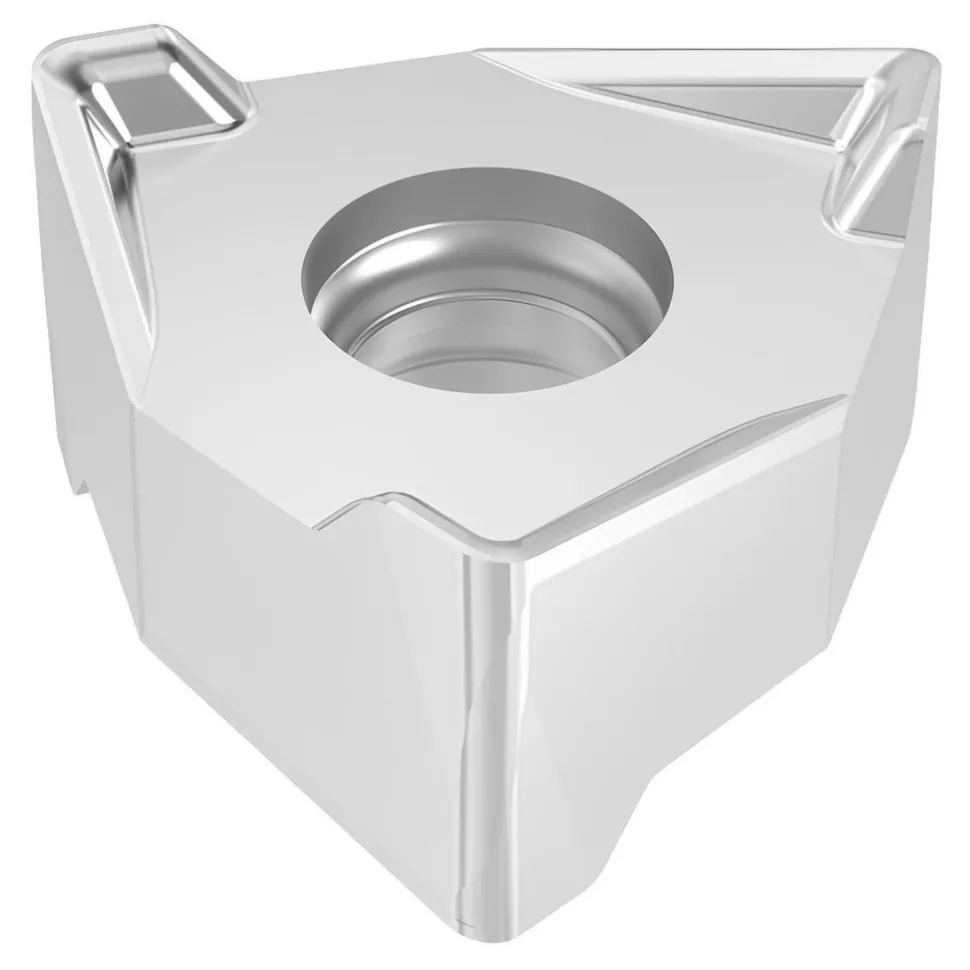

Milling Inserts: Insert Style: XNEX; Insert Size: 08; Insert Material: Solid Carbide; Insert Shape: Trigon
Original price was: 46,00 $.33,99 $Current price is: 33,99 $.

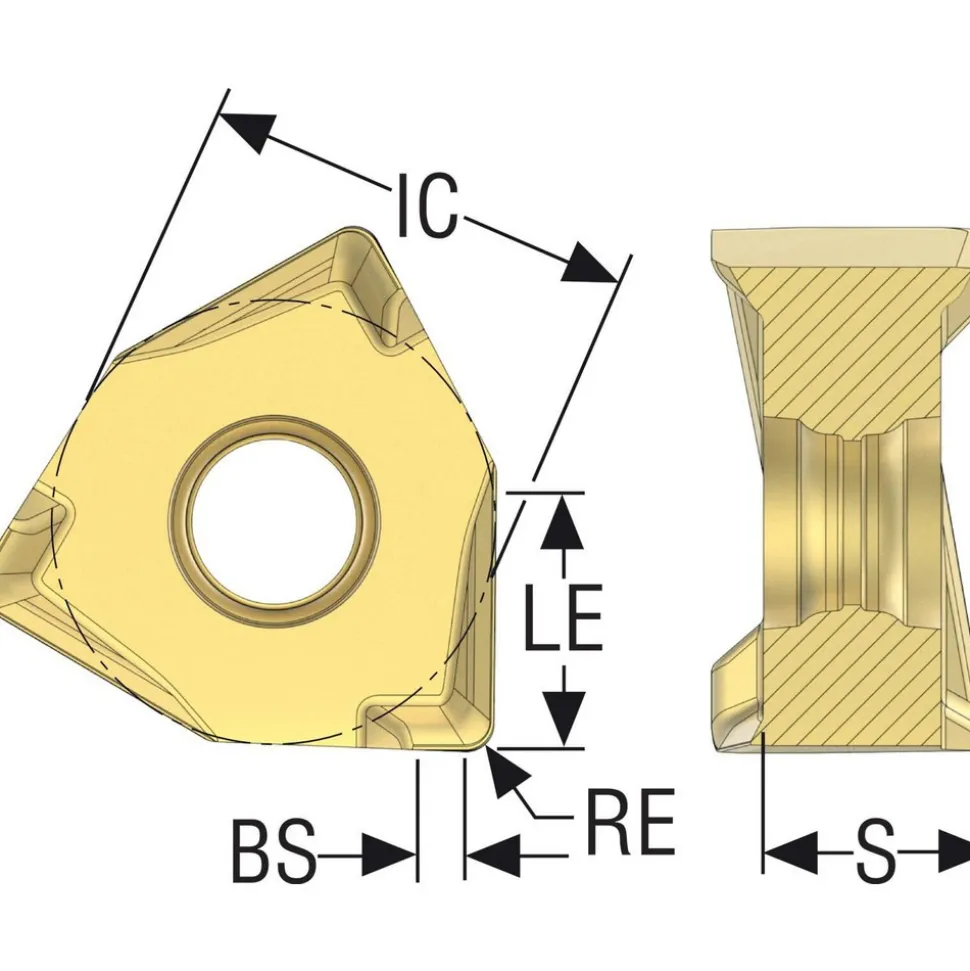

Specifications
| Insert Style: XNEX | Insert Size: 08 |
| Insert Material: Solid Carbide | Insert Shape: Trigon |
| Manufacturer Grade: MP2501 | Corner Radius (Decimal Inch): 0.0315 |
| Number Of Cutting Edges: 6 | Thickness (Decimal Inch – 4 Decimals): 0.2539 |
| Coating/Finish: TiCN; Al2O3 | Relief Angle: 0.000 |
| Insert Size Code: 080608 | Material Grade: Fine Grain |
| Length (Inch): 19/64 | Inscribed Circle (Decimal Inch): 0.4913 |
| Thickness Range (Decimal Inch): 0.2500 to 0.3500 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | Length Range (Decimal Inch): 0.0000 to 0.3200 |
| Insert Hand: Right Hand | Maximum Depth of Cut (mm): 3.75 |
| Maximum Depth of Cut (Decimal Inch): 0.2953 | Series: XNEX-08 |
| Coating Process: CVD | Hole Diameter (Decimal Inch): 0.1811 |
| Cutting Edge Effective Length (Decimal Inch): 0.2953 | Rake: Negative |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium | Secondary Workpiece Material Code: S; K; M |
| Ansi Code: XNEX080608TR-M13 | Iso Code: XNEX080608TR-M13 |
| Standards: ISO | Rake Angle: 22.000 |
| Cutting Edge Style: T-Land | Manufacturers Catalog Number: XNEX080608TR-M13 |
| Cutter Series Compatibility: R220.96-08; R217.96-08 | Chip Breaker: M13 |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape: Trigon | Insert Holding Method: Screw |
| Coating Classification: Duratomic | Single or Double Sided Insert: Double |
| Included Angle Degree: 88.28 | Width (Decimal Inch – 4 Decimals): 0.4913 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.2953 |
| Country of Origin: Sweden | |
| Insert Style: XNEX | |
| Insert Size: 08 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Trigon | |
| Manufacturer Grade: MP2501 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Number Of Cutting Edges: 6 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2539 | |
| Coating/Finish: TiCN; Al2O3 | |
| Relief Angle: 0.000 | |
| Insert Size Code: 080608 | |
| Material Grade: Fine Grain | |
| Length (Inch): 19/64 | |
| Inscribed Circle (Decimal Inch): 0.4913 | |
| Thickness Range (Decimal Inch): 0.2500 to 0.3500 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | |
| Length Range (Decimal Inch): 0.0000 to 0.3200 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 3.75 | |
| Maximum Depth of Cut (Decimal Inch): 0.2953 | |
| Series: XNEX-08 | |
| Coating Process: CVD | |
| Hole Diameter (Decimal Inch): 0.1811 | |
| Cutting Edge Effective Length (Decimal Inch): 0.2953 | |
| Rake: Negative | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium | |
| Secondary Workpiece Material Code: S; K; M | |
| Ansi Code: XNEX080608TR-M13 | |
| Iso Code: XNEX080608TR-M13 | |
| Standards: ISO | |
| Rake Angle: 22.000 | |
| Cutting Edge Style: T-Land | |
| Manufacturers Catalog Number: XNEX080608TR-M13 | |
| Cutter Series Compatibility: R220.96-08; R217.96-08 | |
| Chip Breaker: M13 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Shape: Trigon | |
| Insert Holding Method: Screw | |
| Coating Classification: Duratomic | |
| Single or Double Sided Insert: Double | |
| Included Angle Degree: 88.28 | |
| Width (Decimal Inch – 4 Decimals): 0.4913 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.2953 | |
| Country of Origin: Sweden |
| MSC# | 96593348 |
| Mfr# | 03272909 |
