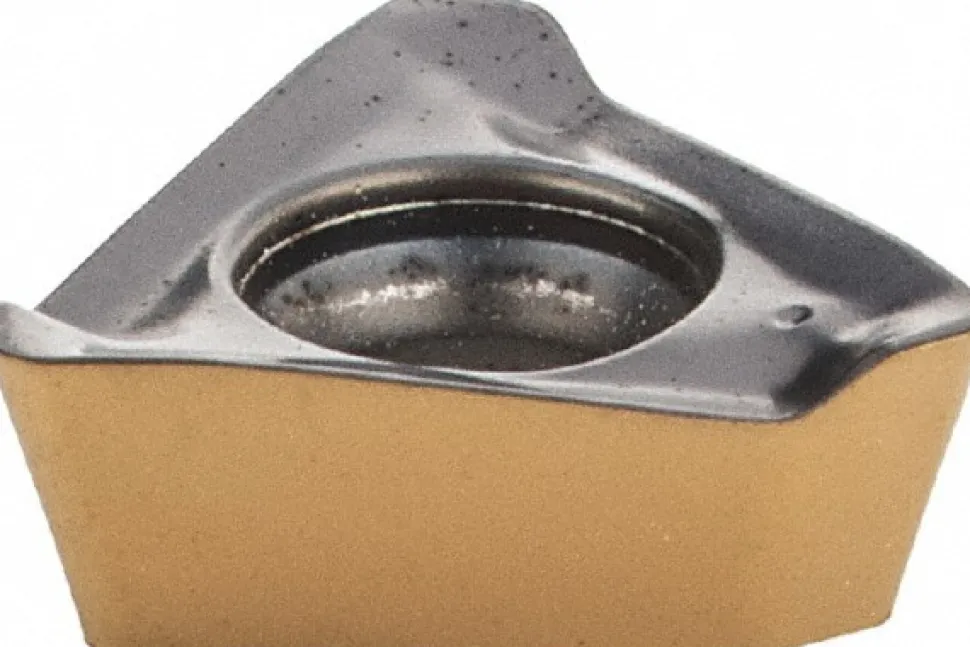

Milling Inserts: Insert Style: TPKT; Insert Size: 10; Insert Material: Solid Carbide; Insert Shape: Triangle
18,89 $
Specifications
| Insert Style: TPKT | Insert Size: 10 |
| Insert Material: Solid Carbide | Insert Shape: Triangle |
| Manufacturer Grade: IC830 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 3 |
| Thickness (Decimal Inch – 4 Decimals): 0.1520 | Coating/Finish: AlTiN; TiN |
| Relief Angle: 11.000 | Insert Size Code: 1003 |
| Inscribed Circle (Decimal Inch): 0.2953 | Inscribed Circle (mm): 7.50 |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | Length Range (Decimal Inch): 0.4000 to 0.4500 |
| Insert Hand: Right Hand | Maximum Depth of Cut (mm): 8.00 |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | Series: HELI3MILL |
| Coating Process: PVD | Cutting Edge Effective Length (Decimal Inch): 0.3150 |
| Rake: Positive | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Secondary Workpiece Material Code: S |

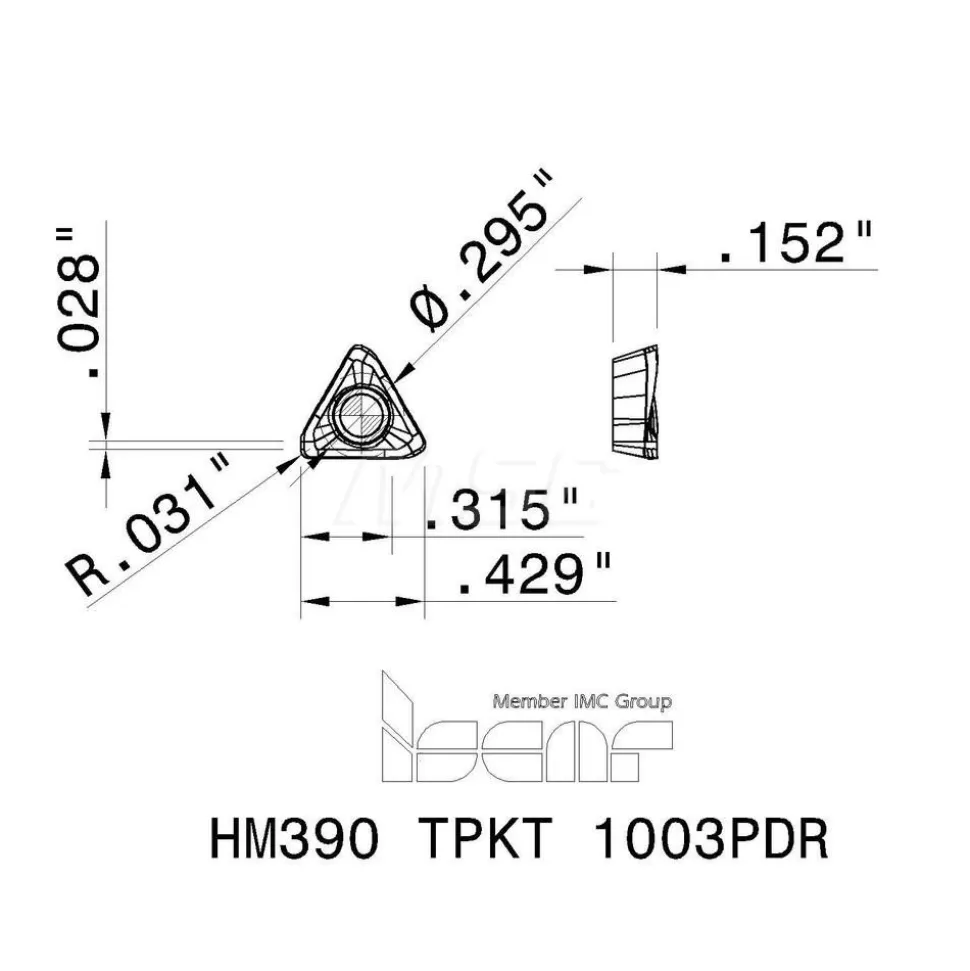

| Ansi Code: HM390 TPKT 1003PDR IC830 | Iso Code: HM390 TPKT 1003PDR |
| Standards: ISO 13399; ANSI | Cutting Edge Style: Helical |
| Manufacturers Catalog Number: HM390 TPKT 1003PDR IC830 | Cutter Series Compatibility: HM390-10 |
| Chip Breaker: PDR | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: Sumotec PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 60 | Width (Decimal Inch – 4 Decimals): 0.4290 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4290 |
| Country of Origin: Israel | |
| Insert Style: TPKT | |
| Insert Size: 10 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Triangle | |
| Manufacturer Grade: IC830 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 3 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1520 | |
| Coating/Finish: AlTiN; TiN | |
| Relief Angle: 11.000 | |
| Insert Size Code: 1003 | |
| Inscribed Circle (Decimal Inch): 0.2953 | |
| Inscribed Circle (mm): 7.50 | |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | |
| Length Range (Decimal Inch): 0.4000 to 0.4500 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 8.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | |
| Series: HELI3MILL | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.3150 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Secondary Workpiece Material Code: S | |
| Ansi Code: HM390 TPKT 1003PDR IC830 | |
| Iso Code: HM390 TPKT 1003PDR | |
| Standards: ISO 13399; ANSI | |
| Cutting Edge Style: Helical | |
| Manufacturers Catalog Number: HM390 TPKT 1003PDR IC830 | |
| Cutter Series Compatibility: HM390-10 | |
| Chip Breaker: PDR | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: Sumotec PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 60 | |
| Width (Decimal Inch – 4 Decimals): 0.4290 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4290 | |
| Country of Origin: Israel |
| MSC# | 65927451 |
| Mfr# | 5607512 |
| Big Book# | 683 |
