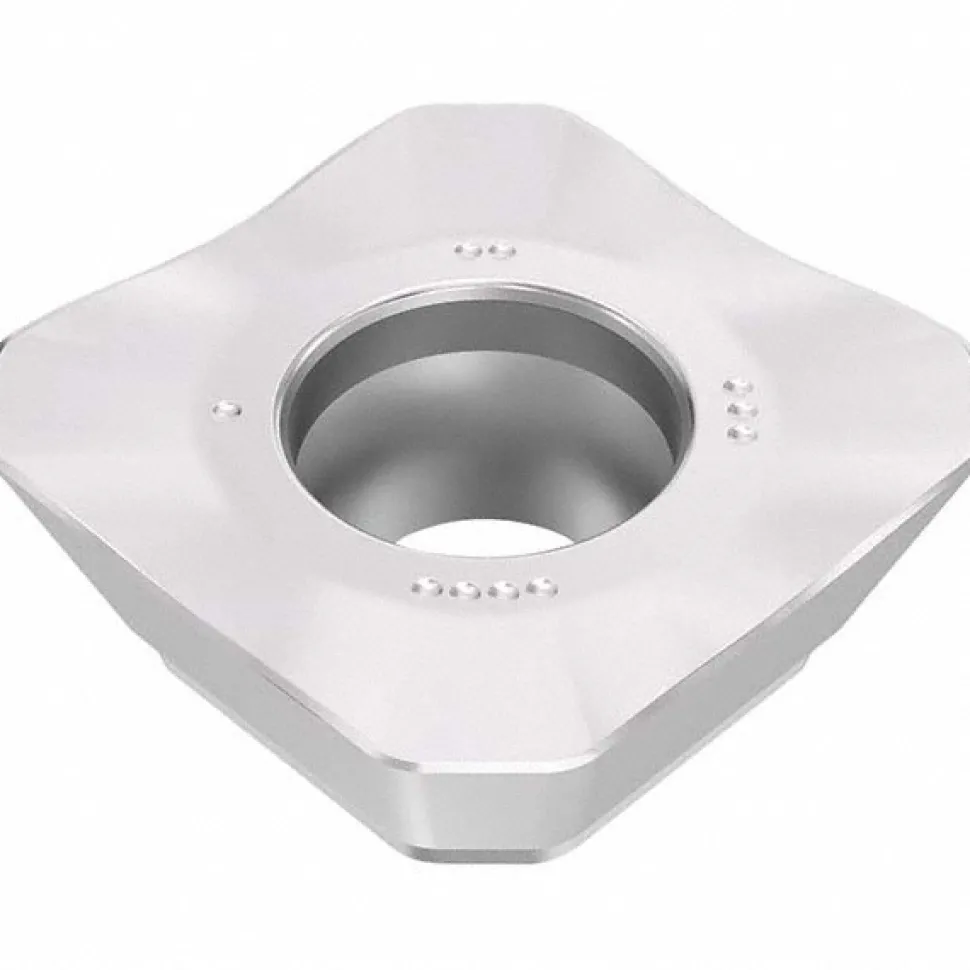

Milling Inserts: Insert Style: SEMX; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Square
20,89 $
Specifications
| Insert Style: SEMX | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: MP2501 | Corner Radius (Decimal Inch): 0.0441 |
| Number Of Cutting Edges: 4 | Thickness (Decimal Inch – 4 Decimals): 0.1874 |
| Coating/Finish: TiCN; Al2O3 | Relief Angle: 20.000 |
| Insert Size Code: 1204 | Material Grade: Fine Grain |
| Width (Inch): 1/2 | Length (Inch): 1/2 |
| Thickness (Inch): 3/16 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Thickness Range (Decimal Inch): 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | Length Range (Decimal Inch): 0.5000 to 0.6000 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.3425 |
| Series: SEMX-12 | Coating Process: CVD |
| Hole Diameter (Decimal Inch): 0.1772 | Cutting Edge Effective Length (Decimal Inch): 0.5000 |
| Rake: Positive | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code: S; K; M | Ansi Code: SEMX1204AFTN-M15 |
| Iso Code: SEMX1204AFTN-M15 | Standards: ISO |
| Rake Angle: 4.000 | Cutting Edge Style: T-Land |
| Manufacturers Catalog Number: SEMX1204AFTN-M15 | Cutter Series Compatibility: R220.53-12; R217.53-12 |
| Chip Breaker: M15 | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Shape: Square |
| Insert Holding Method: Screw | Coating Classification: Duratomic |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Width (mm – 2 Decimals): 8.70 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.5000 |
| Country of Origin: Sweden | |
| Insert Style: SEMX | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: MP2501 | |
| Corner Radius (Decimal Inch): 0.0441 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1874 | |
| Coating/Finish: TiCN; Al2O3 | |
| Relief Angle: 20.000 | |
| Insert Size Code: 1204 | |
| Material Grade: Fine Grain | |
| Width (Inch): 1/2 | |
| Length (Inch): 1/2 | |
| Thickness (Inch): 3/16 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.3425 | |
| Series: SEMX-12 | |
| Coating Process: CVD | |
| Hole Diameter (Decimal Inch): 0.1772 | |
| Cutting Edge Effective Length (Decimal Inch): 0.5000 | |
| Rake: Positive | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium | |
| Secondary Workpiece Material Code: S; K; M | |
| Ansi Code: SEMX1204AFTN-M15 | |
| Iso Code: SEMX1204AFTN-M15 | |
| Standards: ISO | |
| Rake Angle: 4.000 | |
| Cutting Edge Style: T-Land | |
| Manufacturers Catalog Number: SEMX1204AFTN-M15 | |
| Cutter Series Compatibility: R220.53-12; R217.53-12 | |
| Chip Breaker: M15 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Shape: Square | |
| Insert Holding Method: Screw | |
| Coating Classification: Duratomic | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Width (mm – 2 Decimals): 8.70 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5000 | |
| Country of Origin: Sweden |
| MSC# | 96590922 |
| Mfr# | 03272967 |
