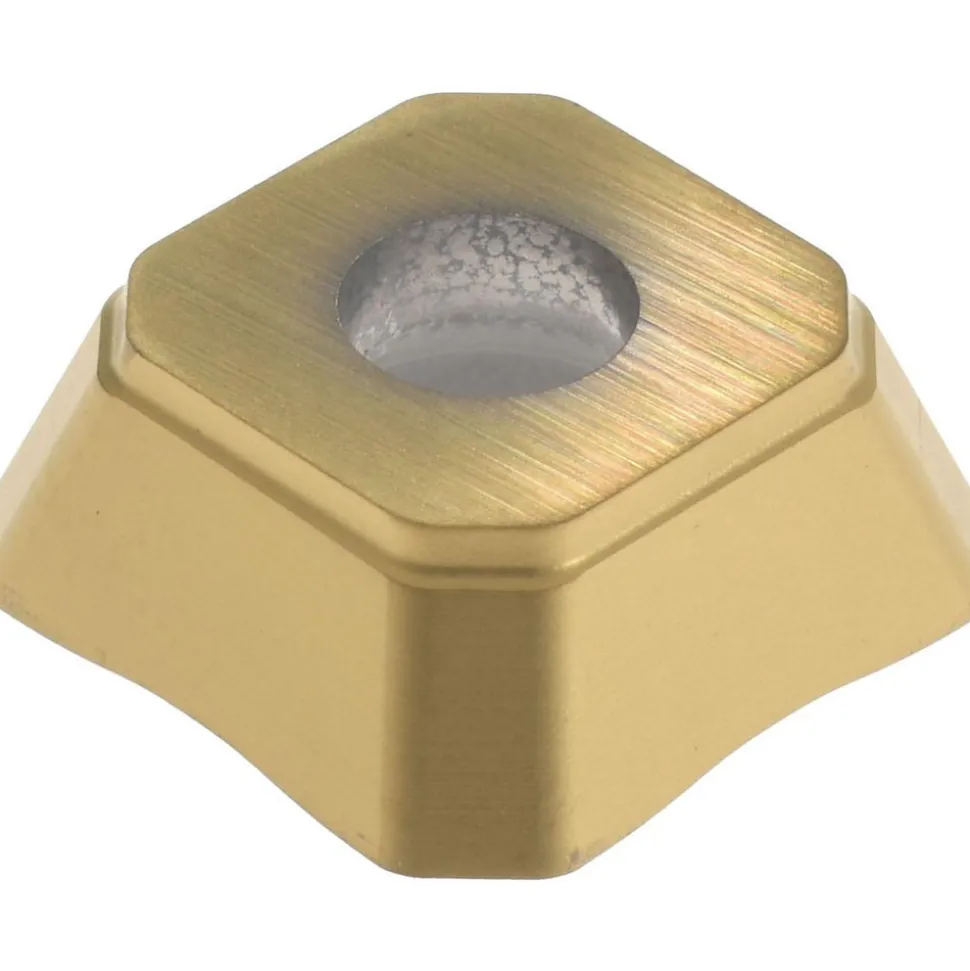

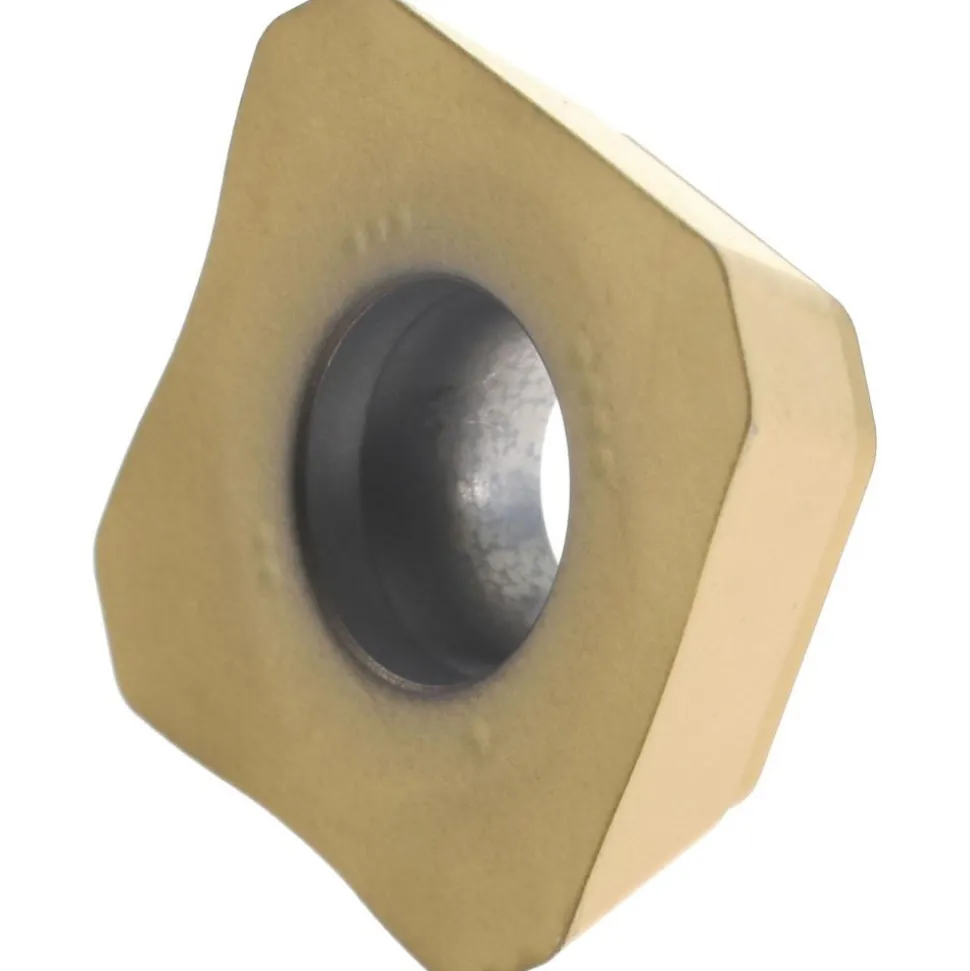

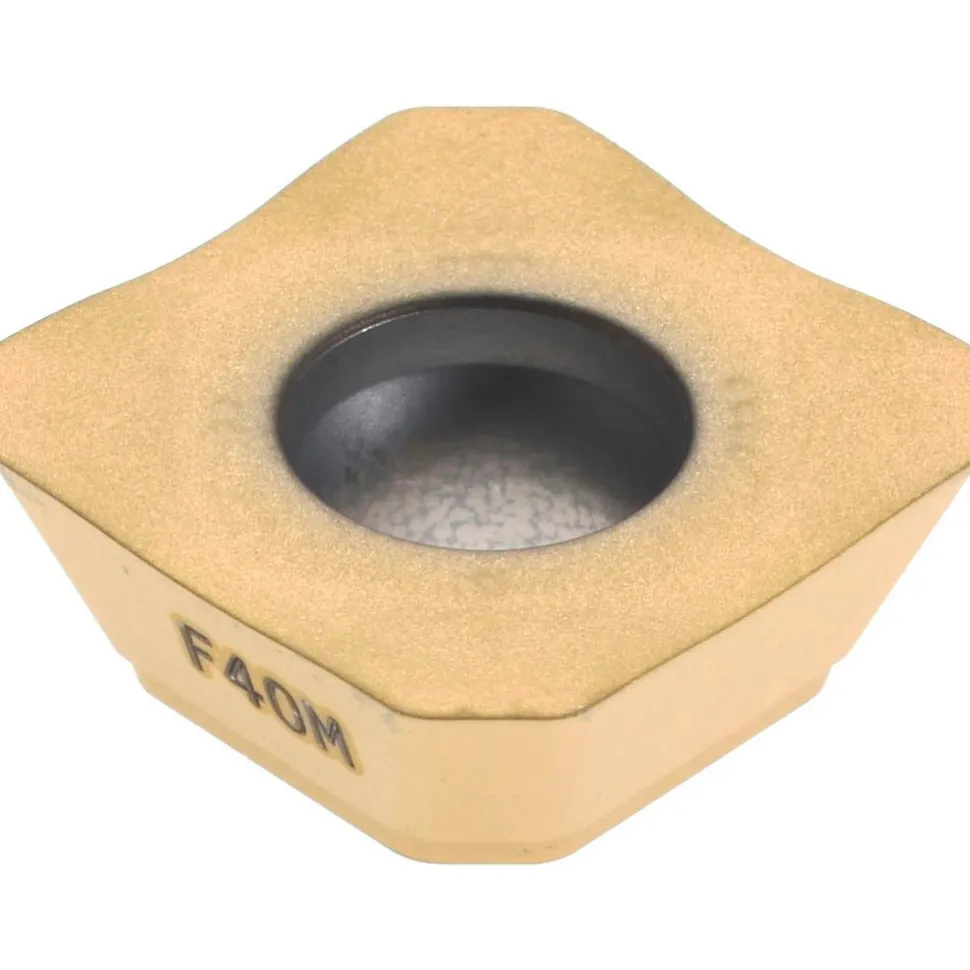

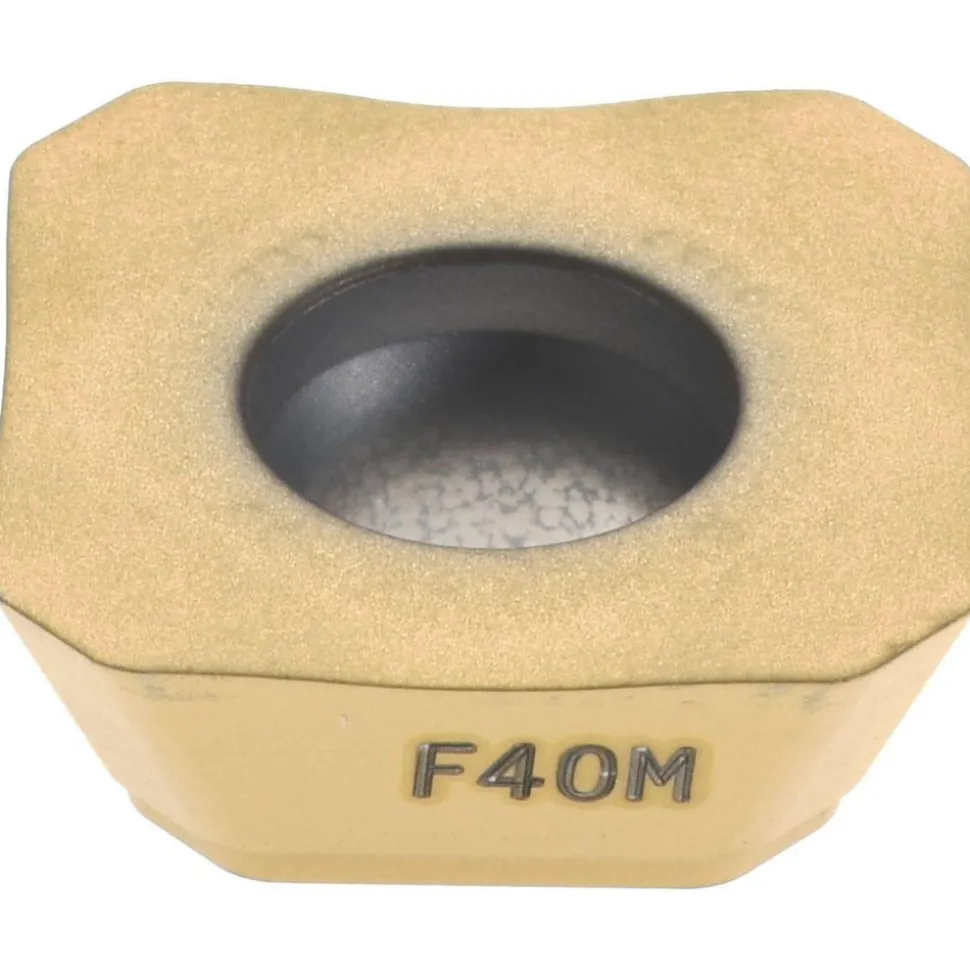

Milling Inserts: Insert Style: SEEX; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Square
25,89 $
Specifications
| Insert Style: SEEX | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: F40M | Corner Radius (Decimal Inch): 0.0441 |
| Number Of Cutting Edges: 4 | Thickness (Decimal Inch – 4 Decimals): 0.1874 |
| Coating/Finish: TiN; TiAlN | Relief Angle: 20.000 |
| Insert Size Code: 1204 | Material Grade: Fine Grain |
| Width (Inch): 1/2 | Length (Inch): 1/2 |
| Thickness (Inch): 3/16 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Thickness Range (Decimal Inch): 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | Length Range (Decimal Inch): 0.5000 to 0.6000 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.3425 |
| Series: SEEX-12 | Coating Process: PVD |
| Hole Diameter (Decimal Inch): 0.1772 | Cutting Edge Effective Length (Decimal Inch): 0.5000 |
| Rake: Positive | Primary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; K | Secondary Workpiece Material: Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code: K; N | Ansi Code: SEEX1204AFN-M10 |
| Iso Code: SEEX1204AFN-M10 | Standards: ISO |
| Rake Angle: 5.000 | Cutting Edge Style: Sharp |
| Manufacturers Catalog Number: SEEX1204AFN-M10 | Cutter Series Compatibility: R220.53-12; R217.53-12 |
| Chip Breaker: M10 | UNSPSC Code: 23291601 |
| Material Application: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Shape: Square |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.5000 | Country of Origin: Sweden |
| Insert Style: SEEX | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: F40M | |
| Corner Radius (Decimal Inch): 0.0441 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1874 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 20.000 | |
| Insert Size Code: 1204 | |
| Material Grade: Fine Grain | |
| Width (Inch): 1/2 | |
| Length (Inch): 1/2 | |
| Thickness (Inch): 3/16 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.3425 | |
| Series: SEEX-12 | |
| Coating Process: PVD | |
| Hole Diameter (Decimal Inch): 0.1772 | |
| Cutting Edge Effective Length (Decimal Inch): 0.5000 | |
| Rake: Positive | |
| Primary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K | |
| Secondary Workpiece Material: Non-Ferrous Metal; Cast Iron | |
| Secondary Workpiece Material Code: K; N | |
| Ansi Code: SEEX1204AFN-M10 | |
| Iso Code: SEEX1204AFN-M10 | |
| Standards: ISO | |
| Rake Angle: 5.000 | |
| Cutting Edge Style: Sharp | |
| Manufacturers Catalog Number: SEEX1204AFN-M10 | |
| Cutter Series Compatibility: R220.53-12; R217.53-12 | |
| Chip Breaker: M10 | |
| UNSPSC Code: 23291601 | |
| Material Application: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Shape: Square | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5000 | |
| Country of Origin: Sweden |
| MSC# | 08797011 |
| Mfr# | 02426811 |
| Big Book# | 662 |
