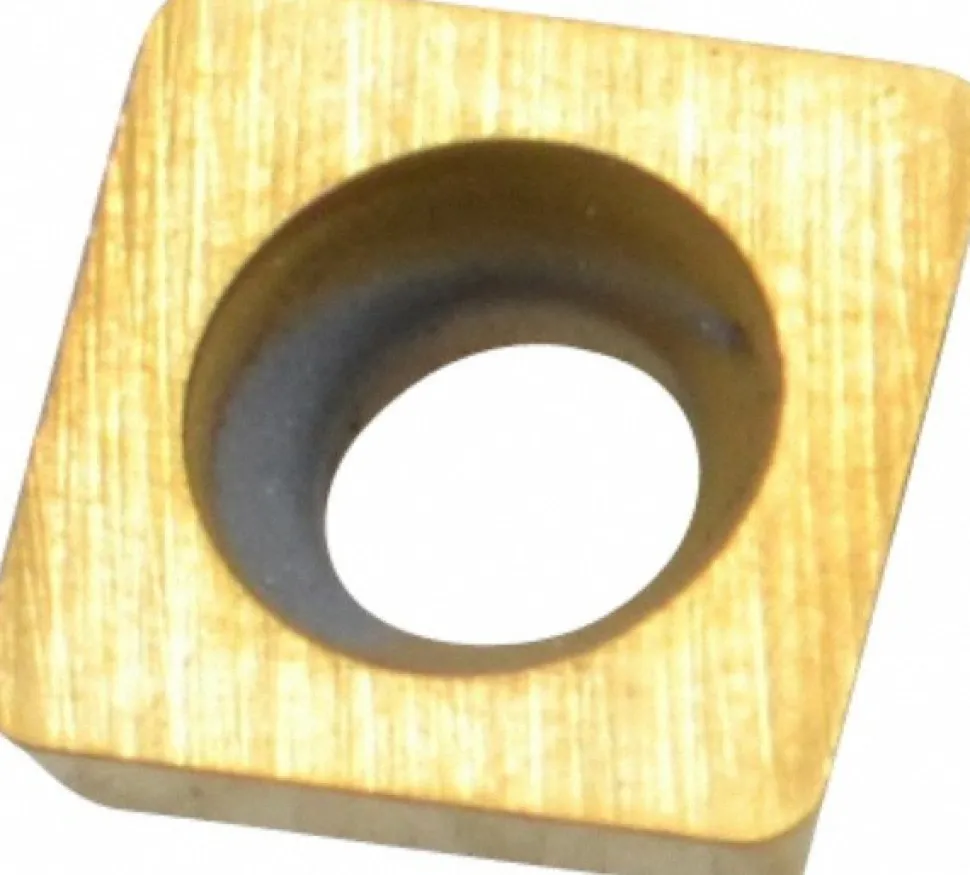

Milling Inserts: Insert Style: SDEB; Insert Size: 2.; Insert Material: Solid Carbide; Insert Shape: Square
24,99 $
Specifications
| Insert Style: SDEB | Insert Size: 2. |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: KC725M | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Thickness (Decimal Inch – 4 Decimals): 0.0937 |
| Coating/Finish: TiCN; TiN | Relief Angle: 15.000 |
| Insert Size Code: 2.61.52 | Material Grade: C5; C6; C7 |
| Thickness (Inch): 3/32 | Inscribed Circle (Decimal Inch): 0.3752 |
| Inscribed Circle (Inch): 3/8 | Thickness Range (Decimal Inch): 0.0000 to 0.1000 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 |
| Insert Hand: Neutral | Series: SDEB |
| Coating Process: PVD | Hole Diameter (mm): 0.14 |
| Hole Diameter (Decimal Inch): 0.1402 | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Iso Code: SDEB080208 |
| Manufacturers Catalog Number: SDEB080208 | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Included Angle Degree: 90 |
| Country of Origin: UNITED STATES | |
| Insert Style: SDEB | |
| Insert Size: 2. | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: KC725M | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Thickness (Decimal Inch – 4 Decimals): 0.0937 | |
| Coating/Finish: TiCN; TiN | |
| Relief Angle: 15.000 | |
| Insert Size Code: 2.61.52 | |
| Material Grade: C5; C6; C7 | |
| Thickness (Inch): 3/32 | |
| Inscribed Circle (Decimal Inch): 0.3752 | |
| Inscribed Circle (Inch): 3/8 | |
| Thickness Range (Decimal Inch): 0.0000 to 0.1000 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 | |
| Insert Hand: Neutral | |
| Series: SDEB | |
| Coating Process: PVD | |
| Hole Diameter (mm): 0.14 | |
| Hole Diameter (Decimal Inch): 0.1402 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Iso Code: SDEB080208 | |
| Manufacturers Catalog Number: SDEB080208 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Included Angle Degree: 90 | |
| Country of Origin: UNITED STATES |
| MSC# | 78998044 |
| Mfr# | 1157497 |
| Big Book# | 706 |
