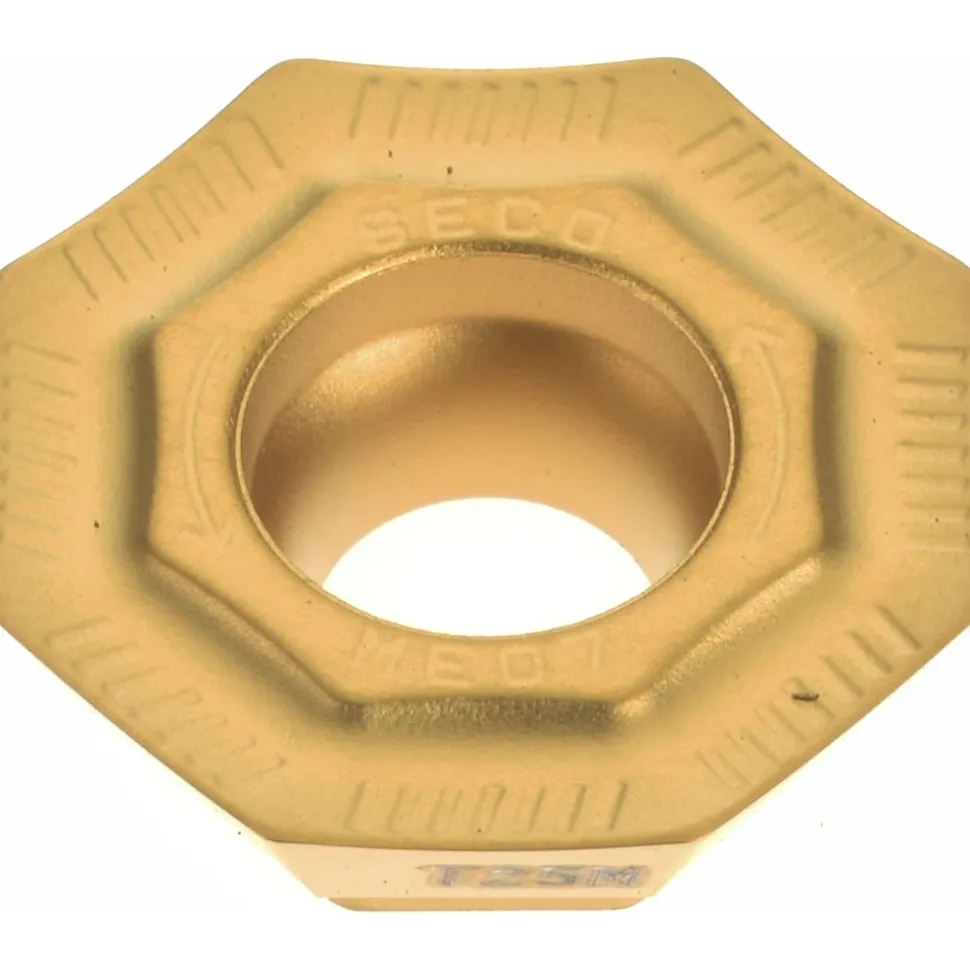

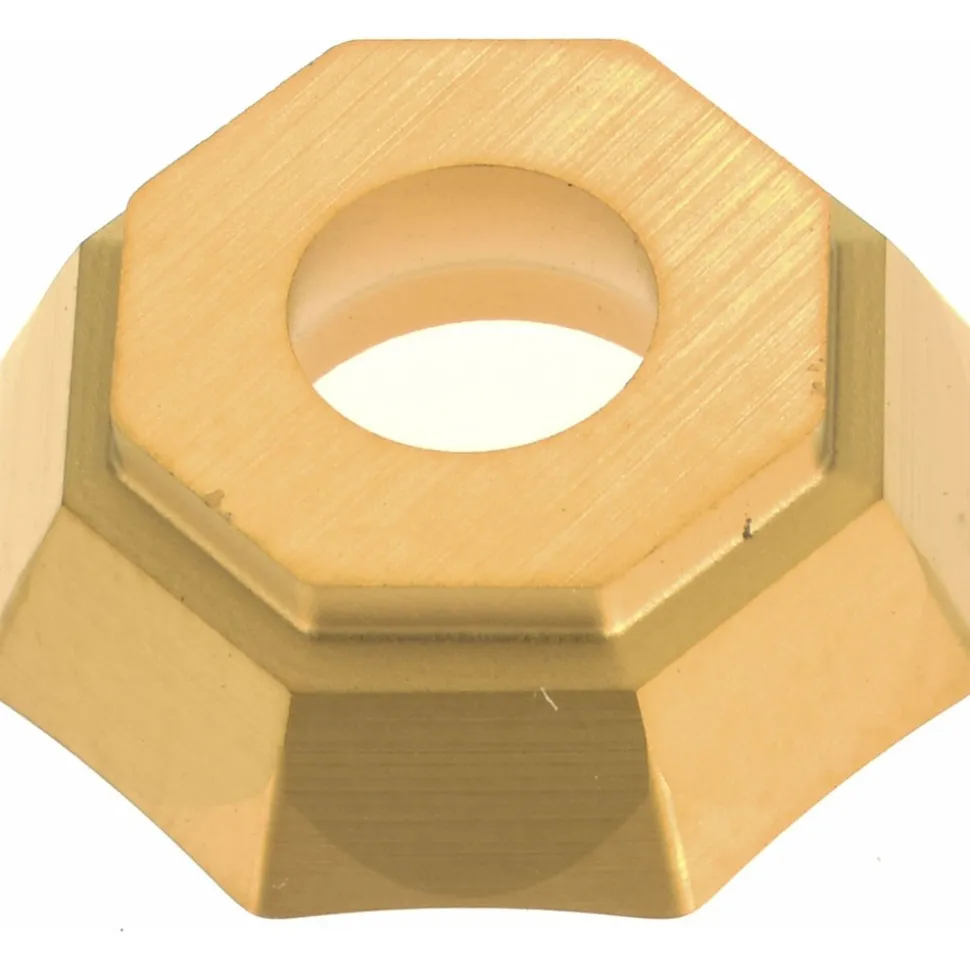

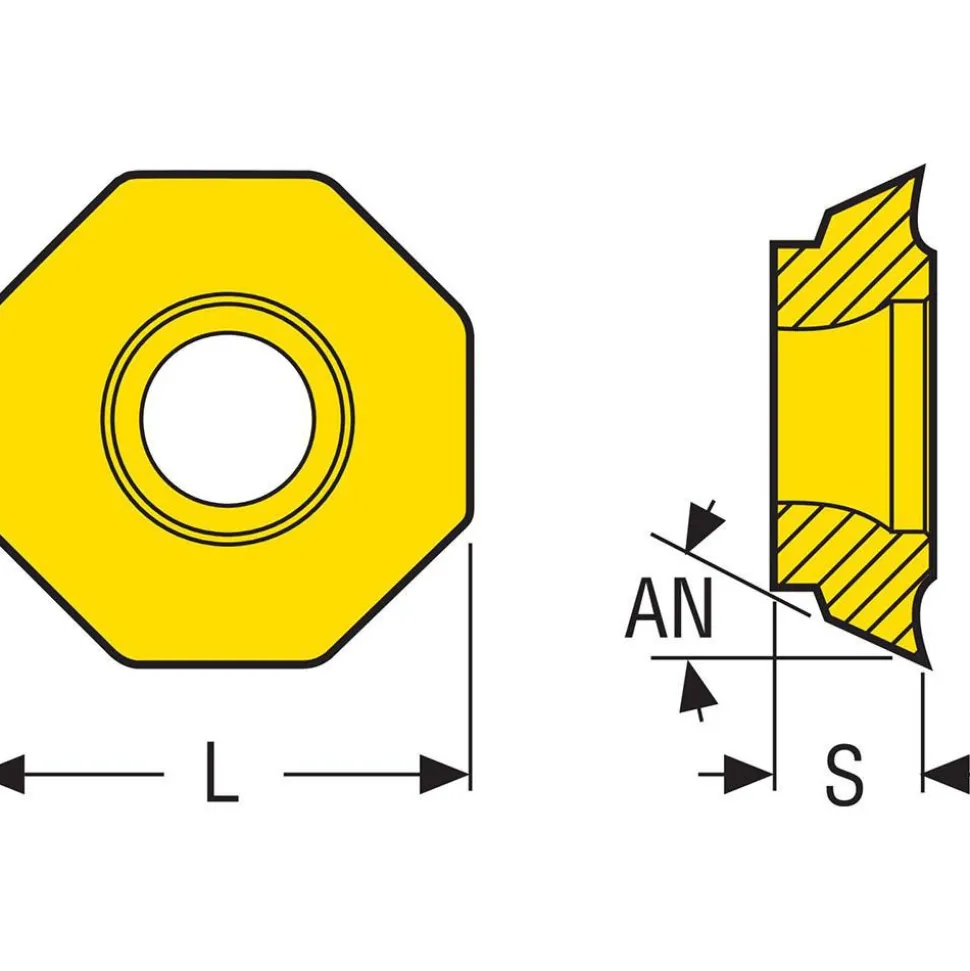

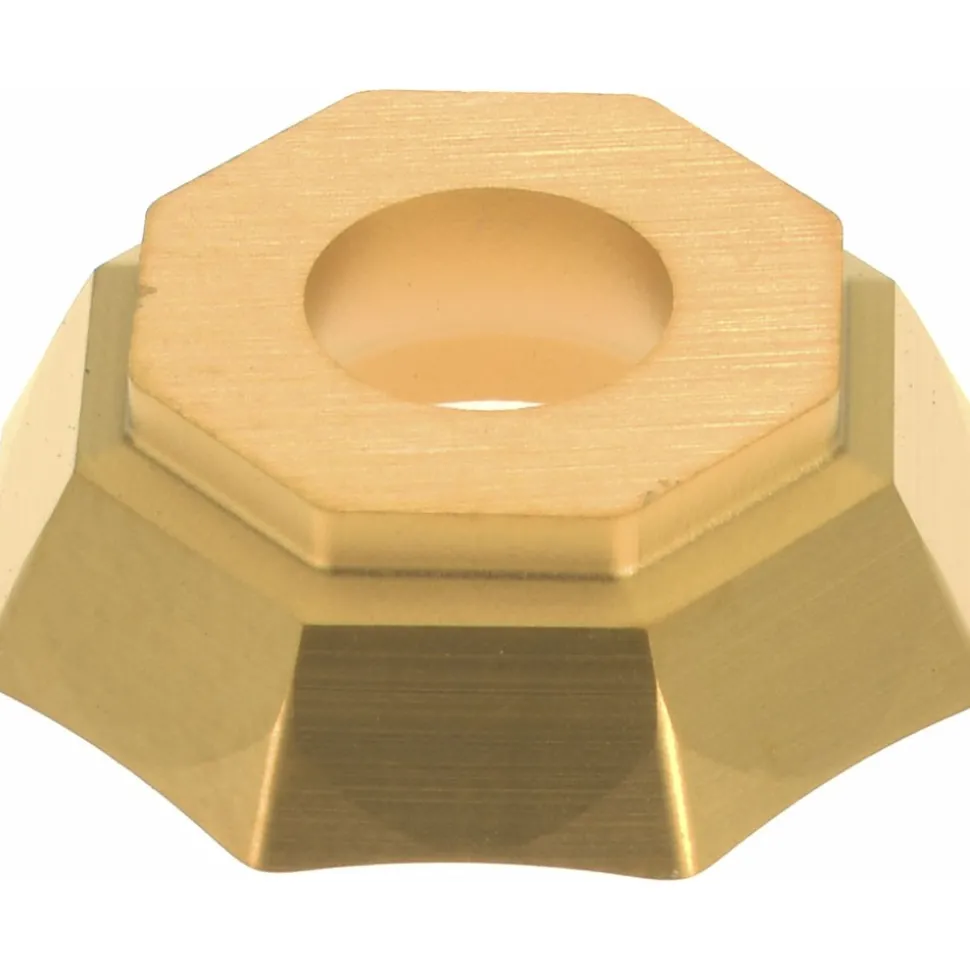

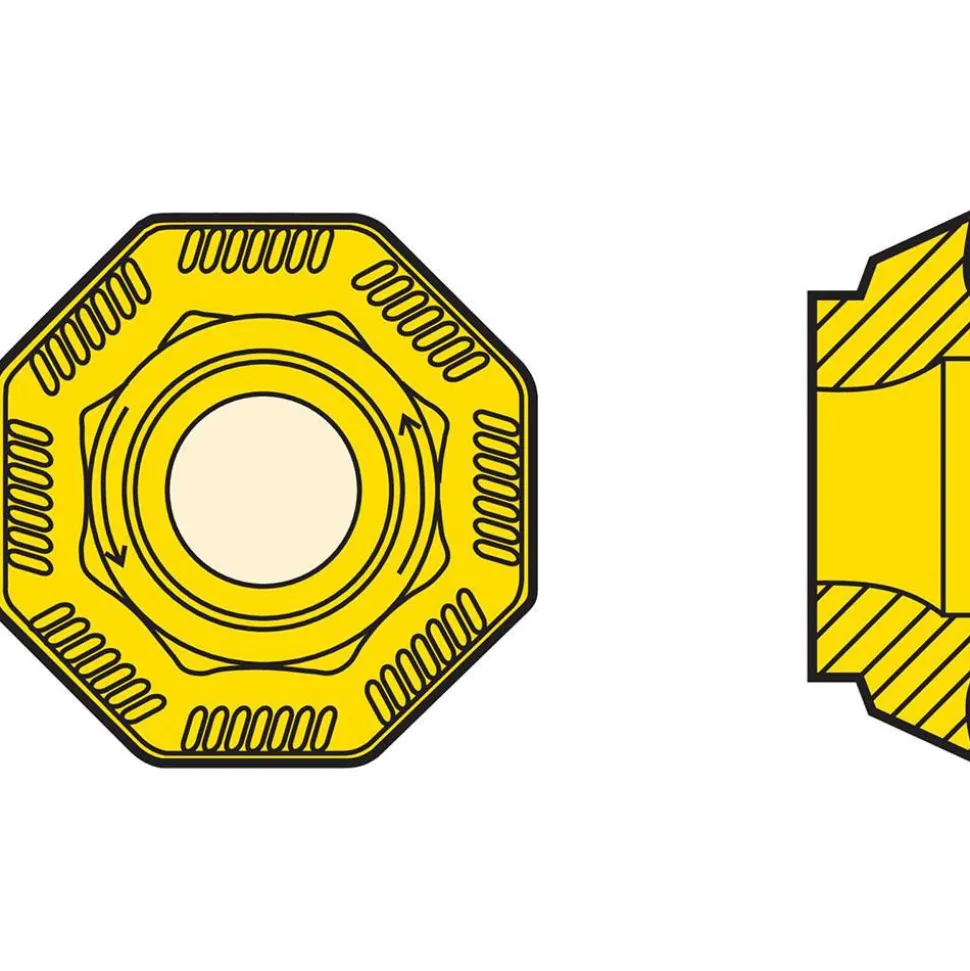

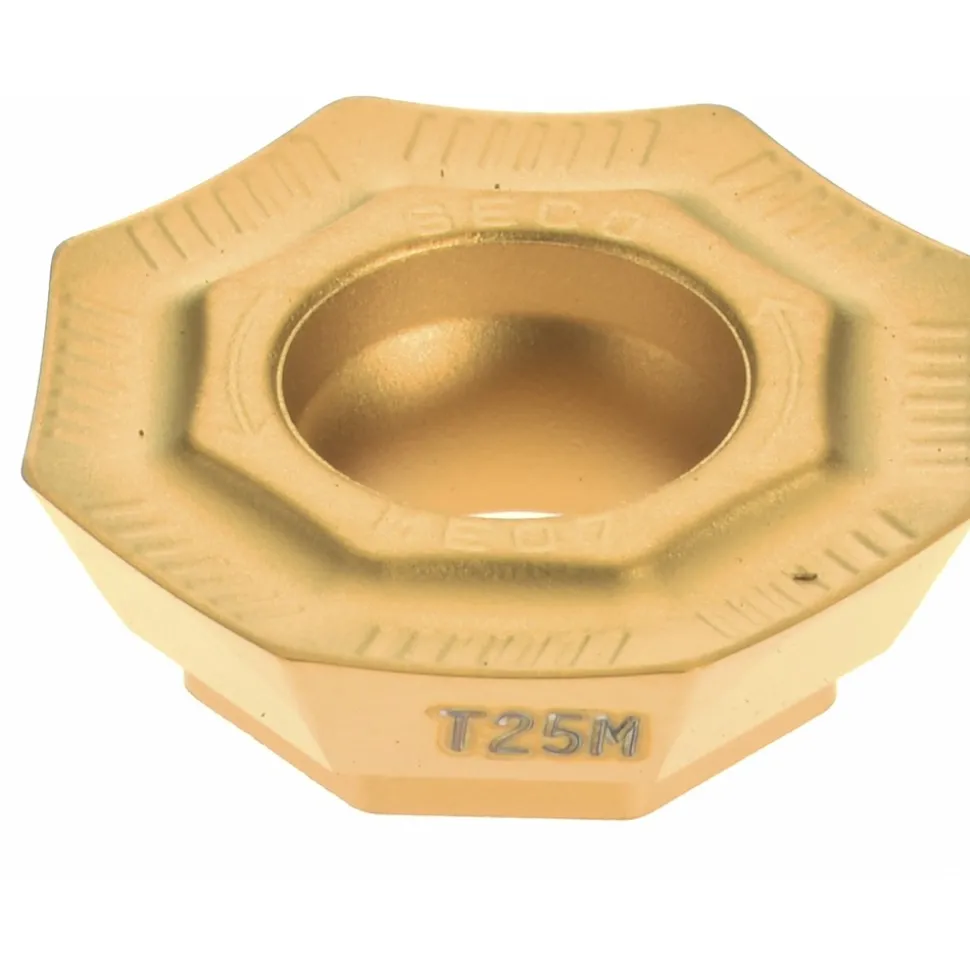

Milling Inserts: Insert Style: OFEX; Insert Size: 05; Insert Material: Solid Carbide; Insert Shape: Octagon
Original price was: 35,00 $.25,99 $Current price is: 25,99 $.
Specifications
| Insert Style: OFEX | Insert Size: 05 |
| Insert Material: Solid Carbide | Insert Shape: Octagon |
| Manufacturer Grade: T25M | Corner Radius (Decimal Inch): 0.0197 |
| Number Of Cutting Edges: 8 | Thickness (Decimal Inch – 4 Decimals): 0.1484 |
| Coating/Finish: TiCN | Relief Angle: 26.000 |
| Insert Size Code: 05T305 | Material Grade: Medium Grain |
| Width (Inch): 1/2 | Length (Inch): 1/2 |
| Inscribed Circle (Decimal Inch): 0.5000 | Inscribed Circle (Inch): 1/2 |
| Thickness Range (Decimal Inch): 0.1250 to 0.1500 | Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | Insert Hand: Neutral |
| Maximum Depth of Cut (Decimal Inch): 0.1929 | Series: OFEX-05 |
| Coating Process: CVD | Hole Diameter (Decimal Inch): 0.1772 |
| Cutting Edge Effective Length (Decimal Inch): 0.2075 | Rake: Positive |
| Secondary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Secondary Workpiece Material Code: P; S; M |
| Ansi Code: OFEX05T305TN-ME07 | Iso Code: OFEX05T305TN-ME07 |
| Standards: ISO | Rake Angle: 18.000 |
| Cutting Edge Style: T-Land | Manufacturers Catalog Number: OFEX05T305TN-ME07 |
| Cutter Series Compatibility: R217.43-05; R220.43-05 | Chip Breaker: ME07 |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Superalloys & Titanium; Steel |
| Shape: Octagon | Insert Holding Method: Screw |
| Coating Classification: CVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 135 | Width (Decimal Inch – 4 Decimals): 0.5000 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.5000 |
| Country of Origin: India | |
| Insert Style: OFEX | |
| Insert Size: 05 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Octagon | |
| Manufacturer Grade: T25M | |
| Corner Radius (Decimal Inch): 0.0197 | |
| Number Of Cutting Edges: 8 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1484 | |
| Coating/Finish: TiCN | |
| Relief Angle: 26.000 | |
| Insert Size Code: 05T305 | |
| Material Grade: Medium Grain | |
| Width (Inch): 1/2 | |
| Length (Inch): 1/2 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Thickness Range (Decimal Inch): 0.1250 to 0.1500 | |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.1929 | |
| Series: OFEX-05 | |
| Coating Process: CVD | |
| Hole Diameter (Decimal Inch): 0.1772 | |
| Cutting Edge Effective Length (Decimal Inch): 0.2075 | |
| Rake: Positive | |
| Secondary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Secondary Workpiece Material Code: P; S; M | |
| Ansi Code: OFEX05T305TN-ME07 | |
| Iso Code: OFEX05T305TN-ME07 | |
| Standards: ISO | |
| Rake Angle: 18.000 | |
| Cutting Edge Style: T-Land | |
| Manufacturers Catalog Number: OFEX05T305TN-ME07 | |
| Cutter Series Compatibility: R217.43-05; R220.43-05 | |
| Chip Breaker: ME07 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Shape: Octagon | |
| Insert Holding Method: Screw | |
| Coating Classification: CVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 135 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5000 | |
| Country of Origin: India |
| MSC# | 06322051 |
| Mfr# | 74069128 |
| Big Book# | 661 |
