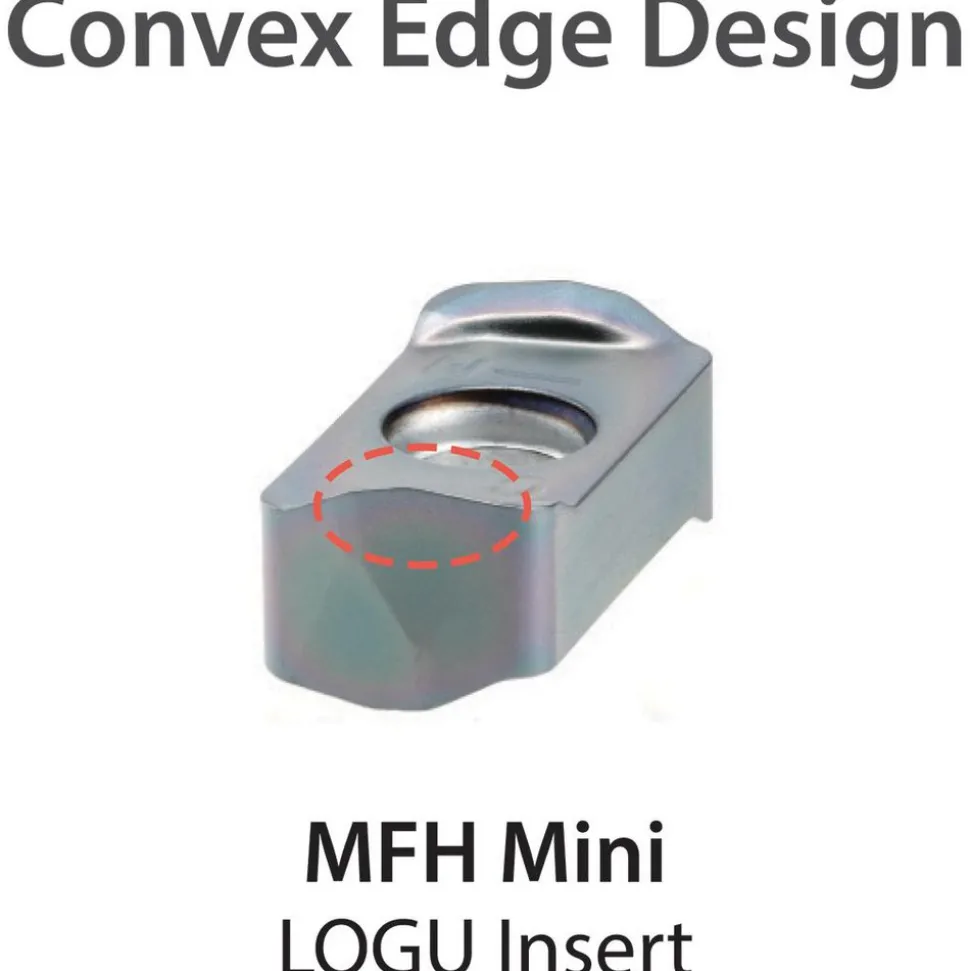

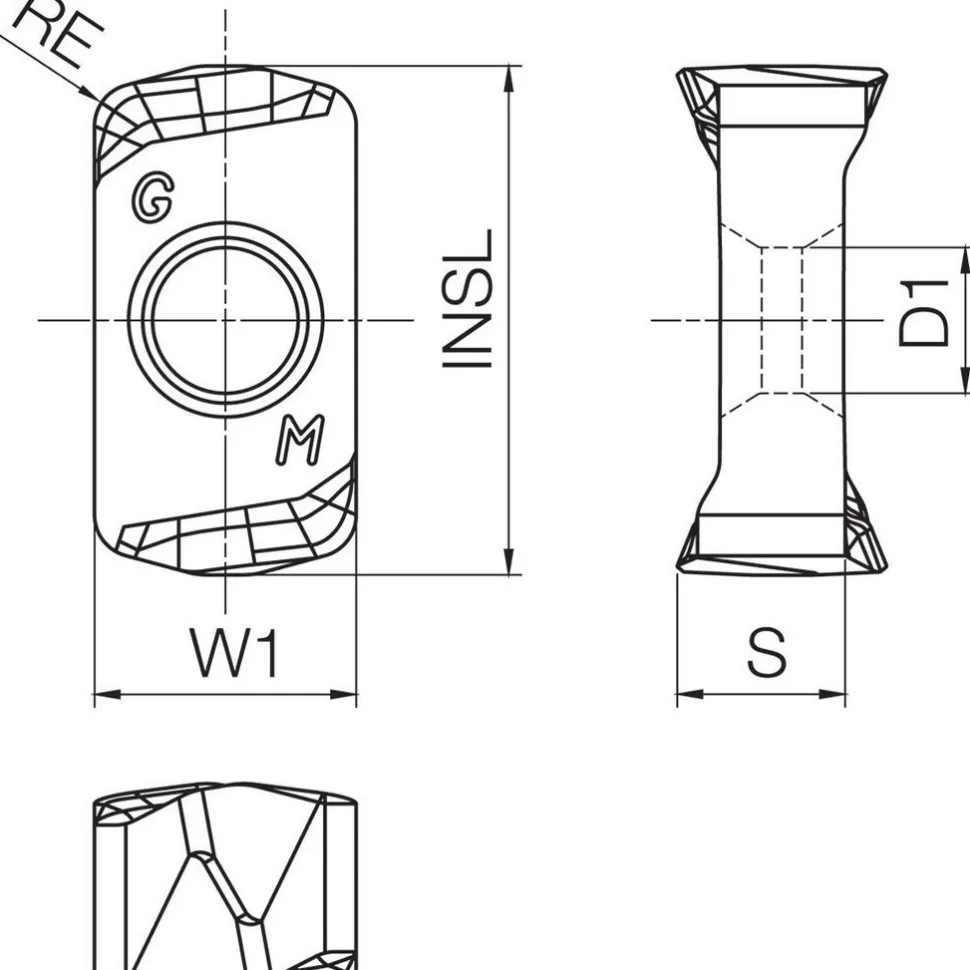

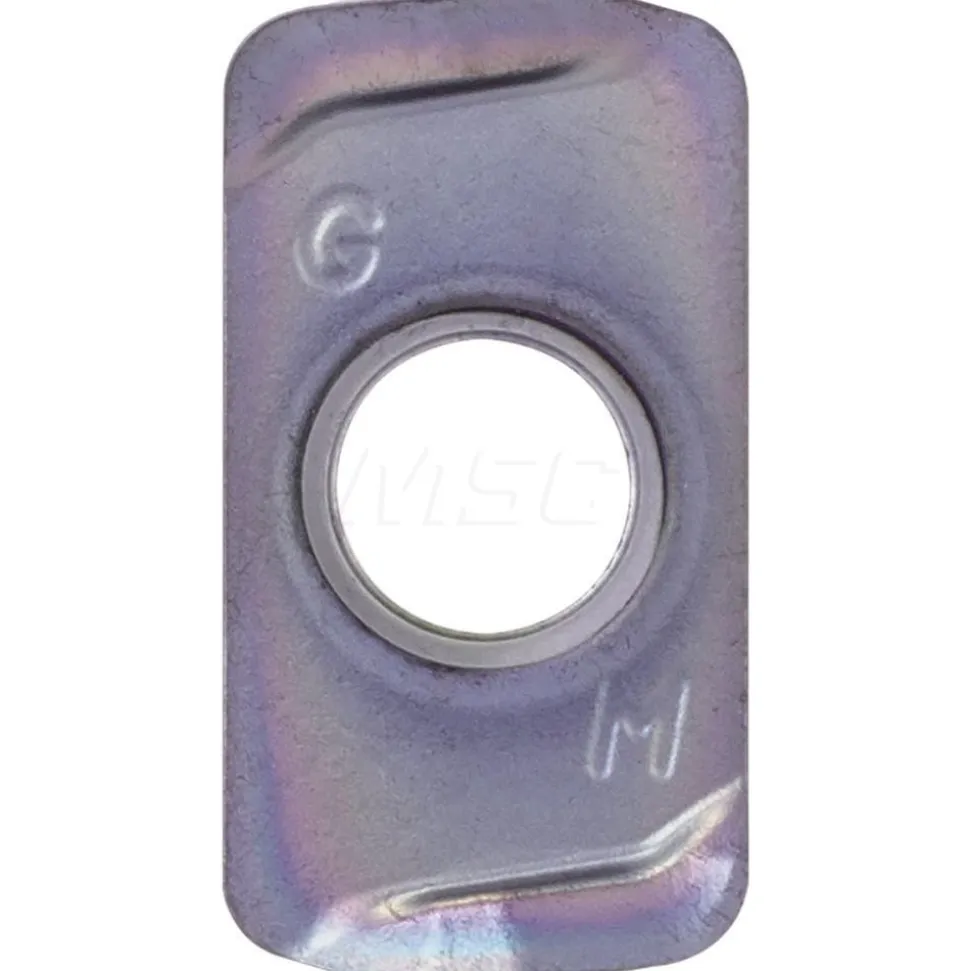

Milling Inserts: Insert Style: LOGU; Insert Size: 03; Insert Material: Solid Carbide; Insert Shape: Rectangle
Original price was: 28,00 $.20,89 $Current price is: 20,89 $.
Specifications
| Insert Style: LOGU | Insert Size: 03 |
| Insert Material: Solid Carbide | Insert Shape: Rectangle |
| Manufacturer Grade: PR1535 | Corner Radius (Decimal Inch): 0.0390 |
| Number Of Cutting Edges: 4 | Thickness (Decimal Inch – 4 Decimals): 0.1559 |
| Thickness (mm): 3.96 | Coating/Finish: MEGACOAT NANO |
| Insert Size Code: 030310 | Length (Inch): 15/32 |
| Thickness (Inch): 5/32 | Inscribed Circle (Decimal Inch): 0.2441 |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500 |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.4295 | Series: MFHI |
| Coating Process: PVD | Hole Diameter (mm): 0.14 |
| Hole Diameter (Decimal Inch): 0.1358 | Cutting Edge Effective Length (Decimal Inch): 0.4690 |
| Rake: Positive | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code: S; M | Secondary Workpiece Material: Stainless Steel; Cast Iron; Steel; Superalloys |
| Secondary Workpiece Material Code: P; S; K; M | Ansi Code: LOGU030310ERGMPR1535 |
| Iso Code: LOGU030310ER-GM | Standards: ISO; ANSI |
| Cutting Edge Style: Honed | Manufacturers Catalog Number: LOGU030310ERGM |
| Cutter Series Compatibility: MFH | Chip Breaker: ER-GM |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.2441 | Width (mm – 2 Decimals): 6.20 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4685 |
| Country of Origin: Japan | |
| Insert Style: LOGU | |
| Insert Size: 03 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Rectangle | |
| Manufacturer Grade: PR1535 | |
| Corner Radius (Decimal Inch): 0.0390 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1559 | |
| Thickness (mm): 3.96 | |
| Coating/Finish: MEGACOAT NANO | |
| Insert Size Code: 030310 | |
| Length (Inch): 15/32 | |
| Thickness (Inch): 5/32 | |
| Inscribed Circle (Decimal Inch): 0.2441 | |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | |
| Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500 | |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.4295 | |
| Series: MFHI | |
| Coating Process: PVD | |
| Hole Diameter (mm): 0.14 | |
| Hole Diameter (Decimal Inch): 0.1358 | |
| Cutting Edge Effective Length (Decimal Inch): 0.4690 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Steel; Superalloys | |
| Secondary Workpiece Material Code: P; S; K; M | |
| Ansi Code: LOGU030310ERGMPR1535 | |
| Iso Code: LOGU030310ER-GM | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: LOGU030310ERGM | |
| Cutter Series Compatibility: MFH | |
| Chip Breaker: ER-GM | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.2441 | |
| Width (mm – 2 Decimals): 6.20 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4685 | |
| Country of Origin: Japan |
| MSC# | 50430560 |
| Mfr# | TLC04200 |
