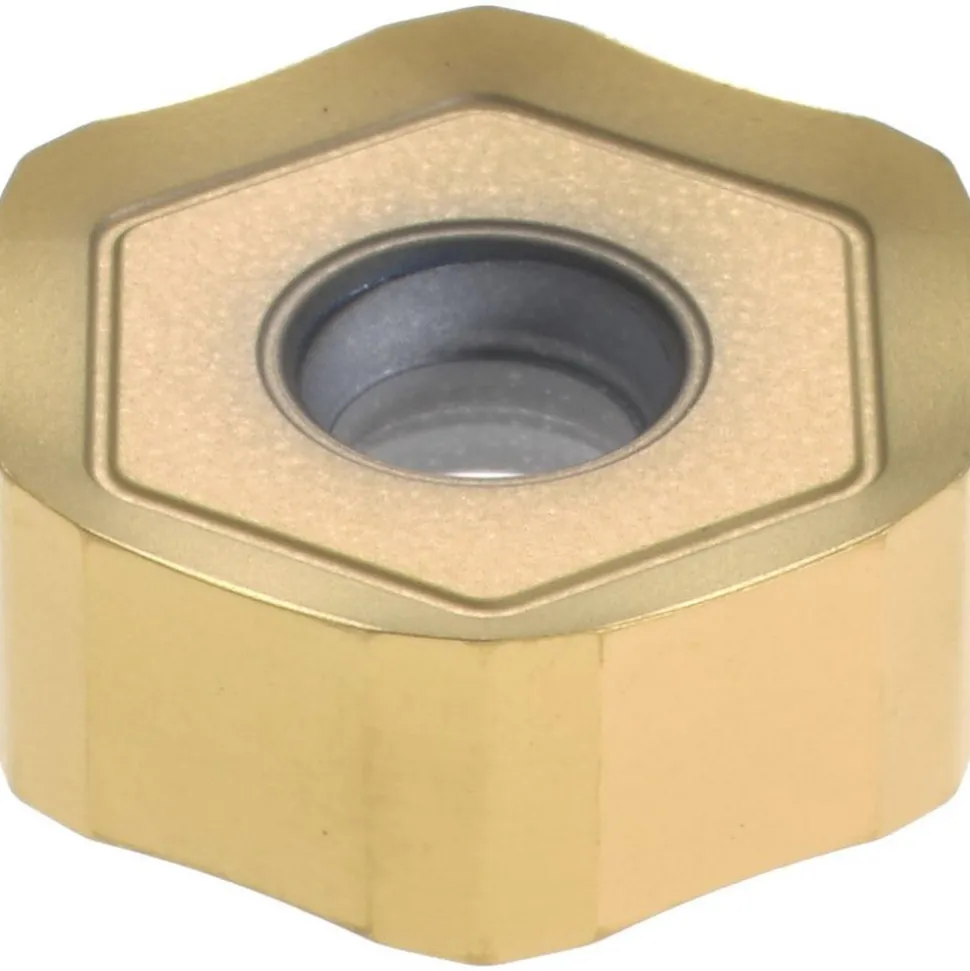

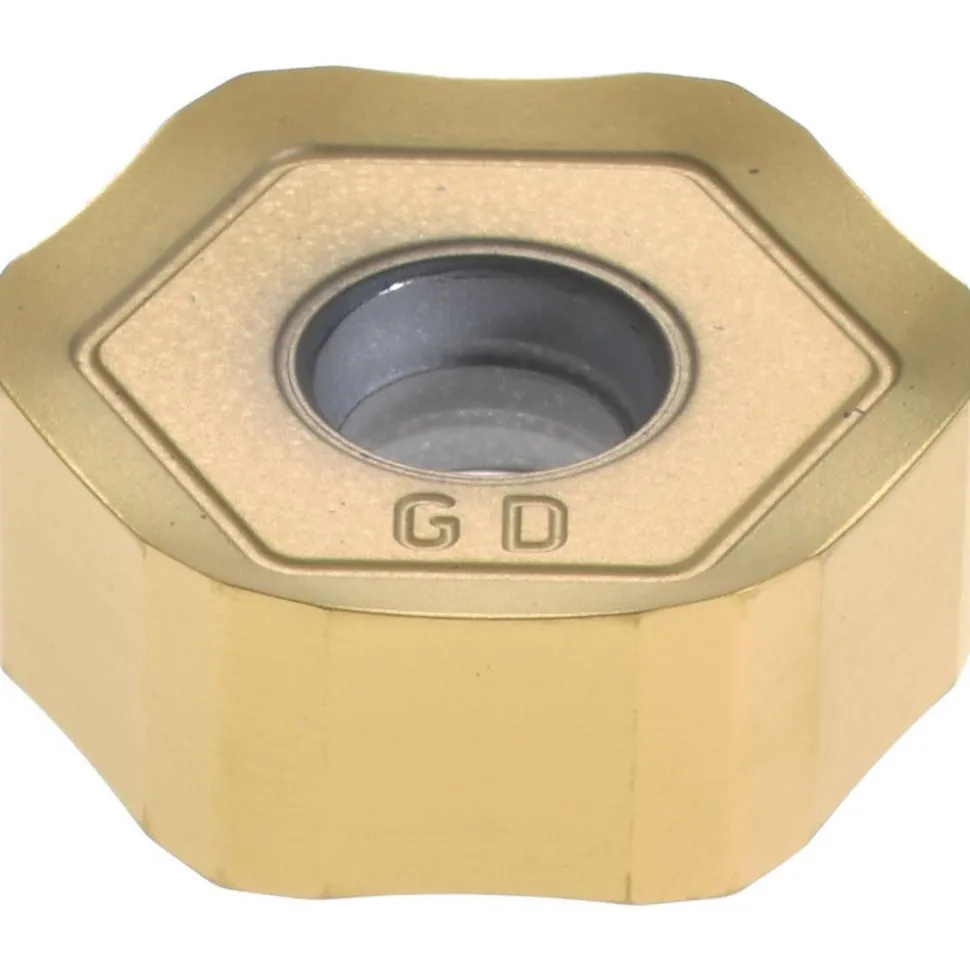

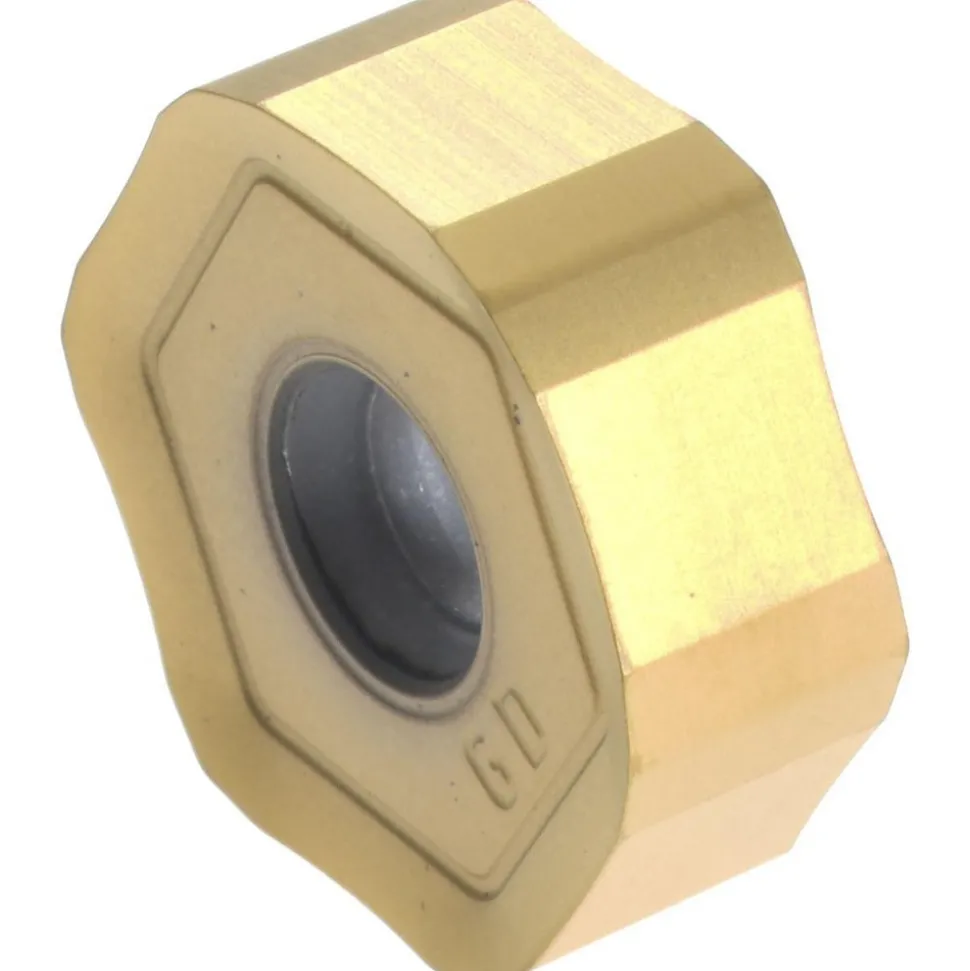

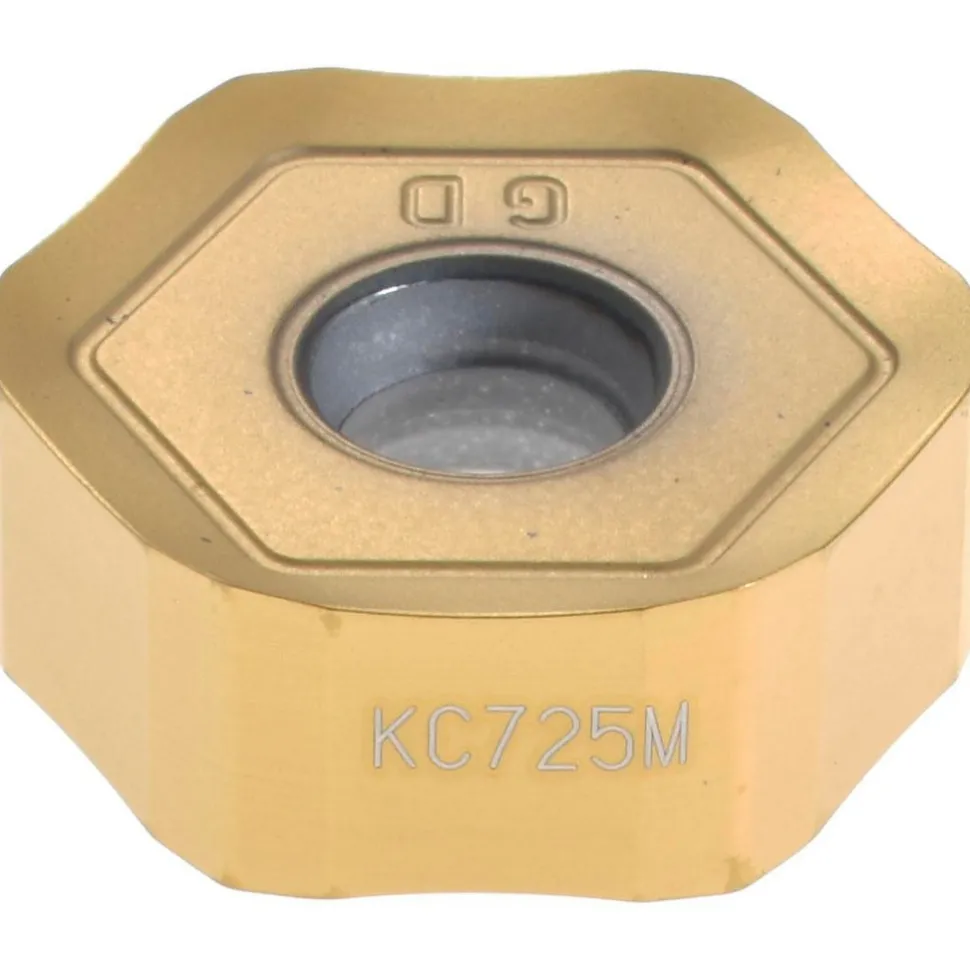

Milling Inserts: Insert Style: HNGJ; Insert Size: 5; Insert Material: Solid Carbide; Insert Shape: Hexagon
38,89 $
Specifications
| Insert Style: HNGJ | Insert Size: 5 |
| Insert Material: Solid Carbide | Insert Shape: Hexagon |
| Manufacturer Grade: KC725M | Corner Radius (Decimal Inch): 0.0470 |
| Corner Radius (mm): 1.20 | Number Of Cutting Edges: 12 |
| Thickness (Decimal Inch – 4 Decimals): 0.2190 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Insert Size Code: 535 |
| Material Grade: C5; C6; C7 | Width (Inch): 5/8 |
| Length (Inch): 5/8 | Thickness (Inch): 7/32 |
| Inscribed Circle (Decimal Inch): 0.6250 | Inscribed Circle (Inch): 5/8 |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | Corner Radius (Inch): 3/64 |
| Inscribed Circle Range (Decimal Inch): 0.6000 to 0.7000 | Length Range (Decimal Inch): 0.6000 to 0.6500 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.5000 |
| Series: HNGJ | Coating Process: PVD |
| Rake: Negative | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Ansi Code: HNGJ535ANSNGD |
| Iso Code: HNGJ0905ANSNGD | Standards: ISO; ANSI |
| Cutting Edge Style: Honed; Chamfered | Manufacturers Catalog Number: HNGJ0905ANSNGD |
| Cutter Series Compatibility: Dodeka | Chip Breaker: GD |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Double | Included Angle Degree: 120 |
| Width (Decimal Inch – 4 Decimals): 0.6250 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.6250 | Country of Origin: UNITED STATES |
| Insert Style: HNGJ | |
| Insert Size: 5 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Hexagon | |
| Manufacturer Grade: KC725M | |
| Corner Radius (Decimal Inch): 0.0470 | |
| Corner Radius (mm): 1.20 | |
| Number Of Cutting Edges: 12 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2190 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Insert Size Code: 535 | |
| Material Grade: C5; C6; C7 | |
| Width (Inch): 5/8 | |
| Length (Inch): 5/8 | |
| Thickness (Inch): 7/32 | |
| Inscribed Circle (Decimal Inch): 0.6250 | |
| Inscribed Circle (Inch): 5/8 | |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | |
| Corner Radius (Inch): 3/64 | |
| Inscribed Circle Range (Decimal Inch): 0.6000 to 0.7000 | |
| Length Range (Decimal Inch): 0.6000 to 0.6500 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.5000 | |
| Series: HNGJ | |
| Coating Process: PVD | |
| Rake: Negative | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: HNGJ535ANSNGD | |
| Iso Code: HNGJ0905ANSNGD | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed; Chamfered | |
| Manufacturers Catalog Number: HNGJ0905ANSNGD | |
| Cutter Series Compatibility: Dodeka | |
| Chip Breaker: GD | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Double | |
| Included Angle Degree: 120 | |
| Width (Decimal Inch – 4 Decimals): 0.6250 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.6250 | |
| Country of Origin: UNITED STATES |
| MSC# | 08635112 |
| Mfr# | 3331176 |
| Big Book# | 705 |
