Sale!

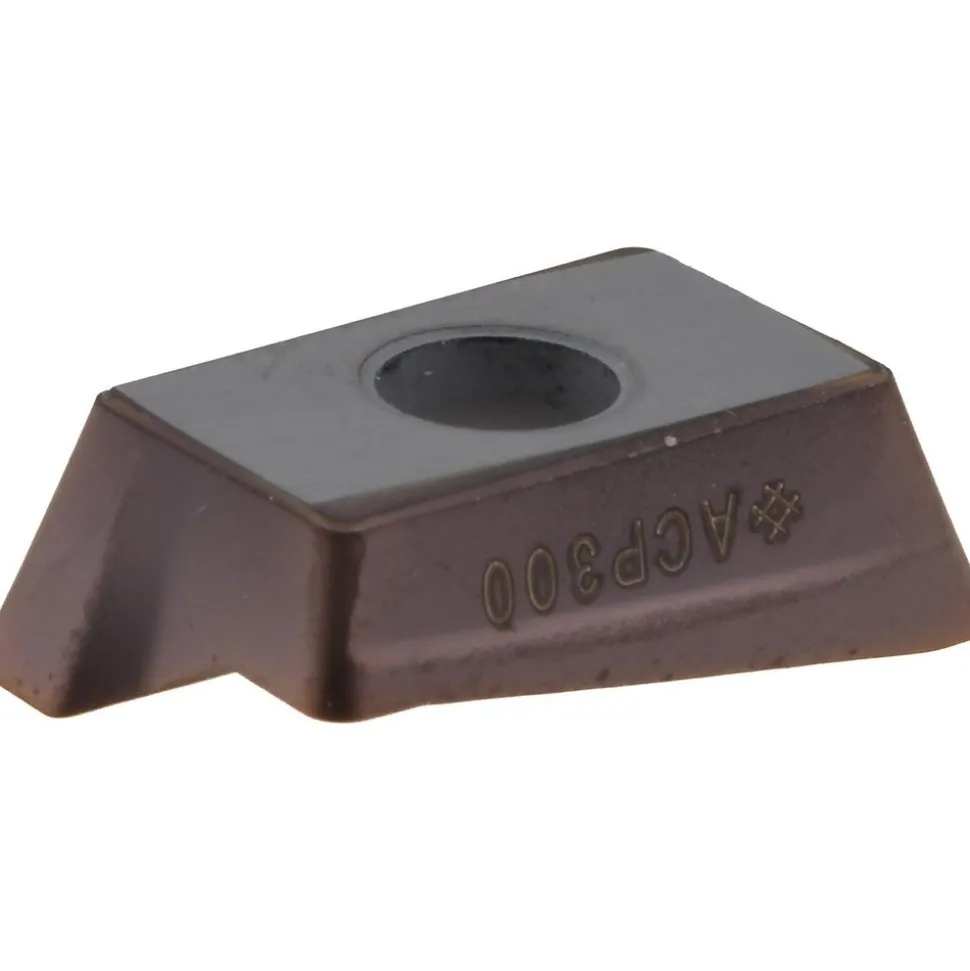

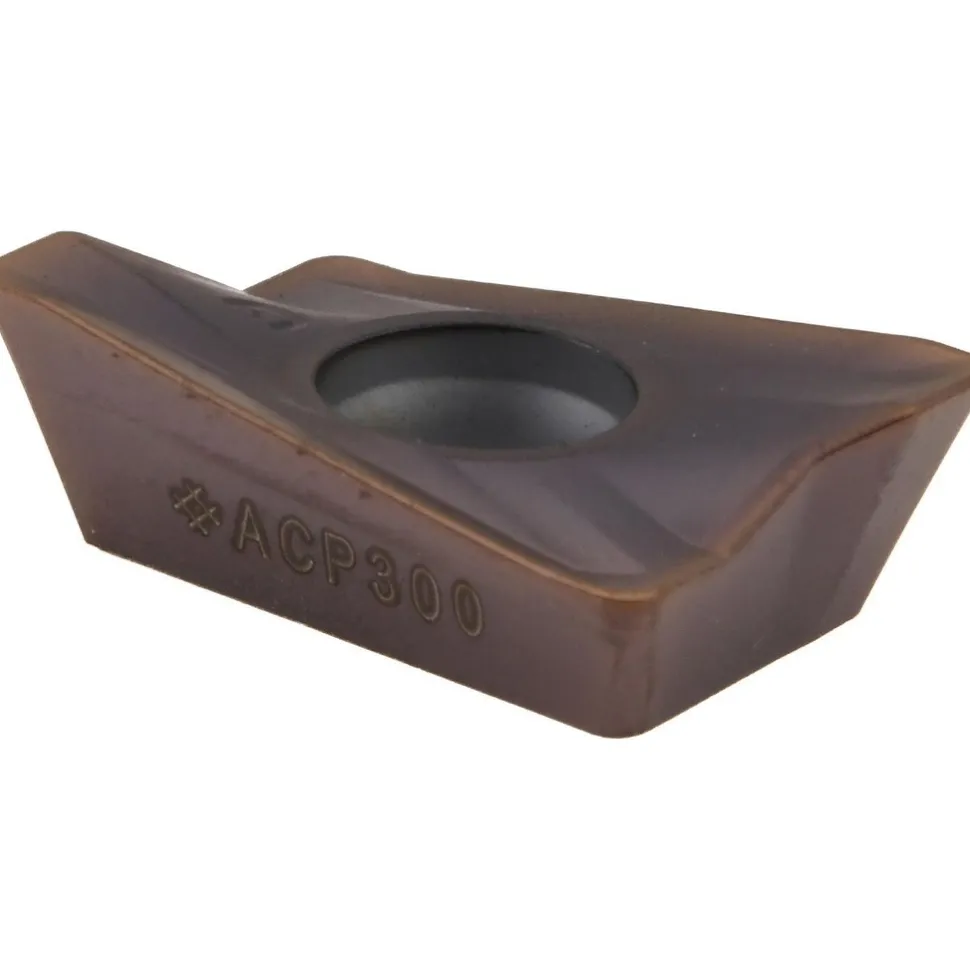

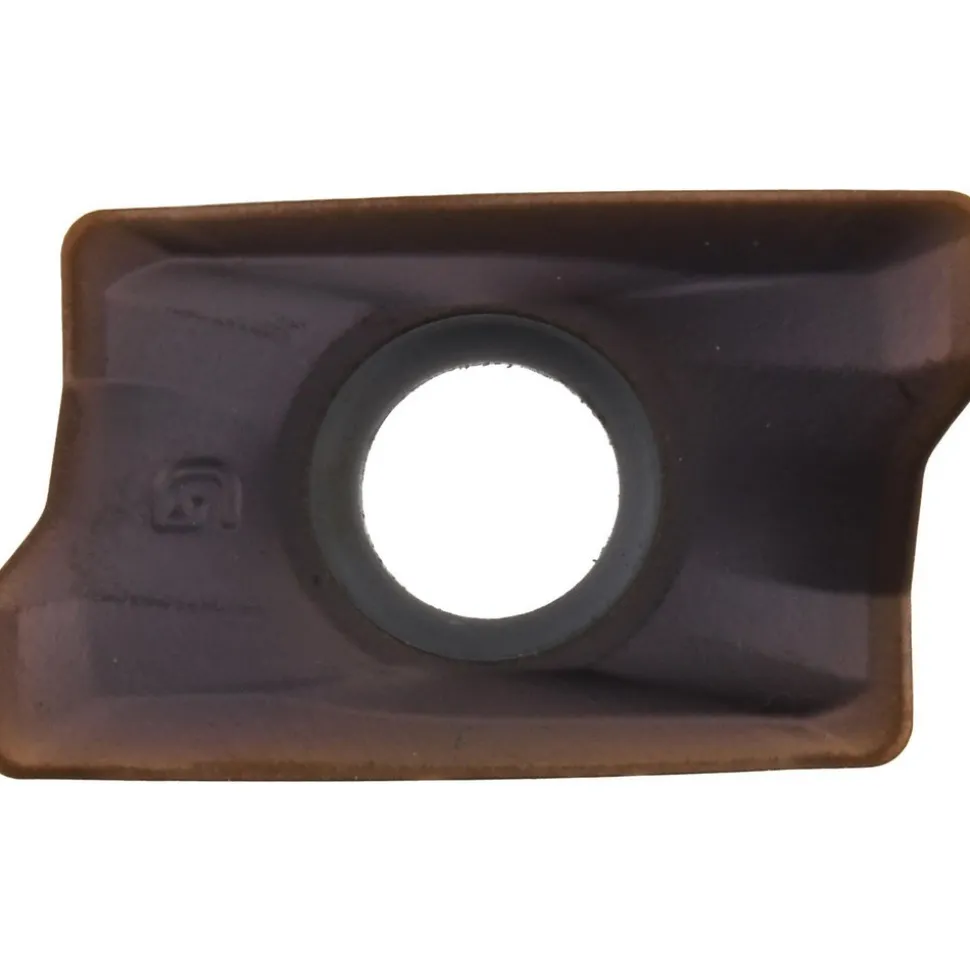

Milling Inserts: Insert Style: AXMT; Insert Size: 170508; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 18,00 $.13,99 $Current price is: 13,99 $.
Specifications
| Insert Style: AXMT | Insert Size: 170508 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: ACP300 | Corner Radius (Decimal Inch): 0.0310 |
| Thickness (Decimal Inch – 4 Decimals): 0.2190 | Relief Angle: 11.000 |
| Insert Size Code: 1235 | Material Grade: C5; C6; C5A |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | Length Range (Decimal Inch): 0.6500 to 0.7000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (mm): 14.00 |
| Maximum Depth of Cut (Decimal Inch): 0.5510 | Coating Process: PVD |
| Cutting Edge Effective Length (Decimal Inch): 0.6890 | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Cutter Series Compatibility: WEX3000 |
| Chip Breaker: G | UNSPSC Code: 23291601 |
| Included Angle Degree: 85 | Width (Decimal Inch – 4 Decimals): 0.4020 |
| Length (Decimal Inch – 4 Decimals): 0.6890 | Country of Origin: Japan |
| Insert Style: AXMT | |
| Insert Size: 170508 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: ACP300 | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2190 | |
| Relief Angle: 11.000 | |
| Insert Size Code: 1235 | |
| Material Grade: C5; C6; C5A | |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | |
| Length Range (Decimal Inch): 0.6500 to 0.7000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 14.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.5510 | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.6890 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Cutter Series Compatibility: WEX3000 | |
| Chip Breaker: G | |
| UNSPSC Code: 23291601 | |
| Included Angle Degree: 85 | |
| Width (Decimal Inch – 4 Decimals): 0.4020 | |
| Length (Decimal Inch – 4 Decimals): 0.6890 | |
| Country of Origin: Japan |
| MSC# | 40123382 |
| Mfr# | 14HB313 |
