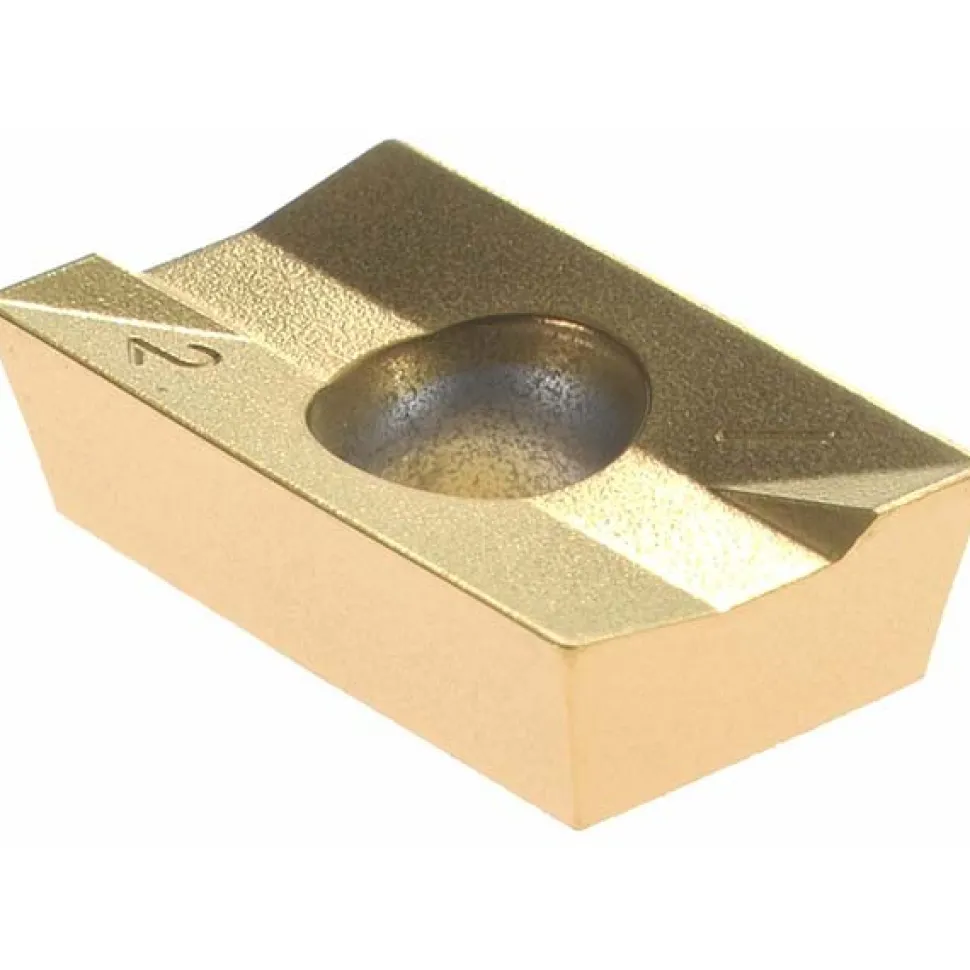

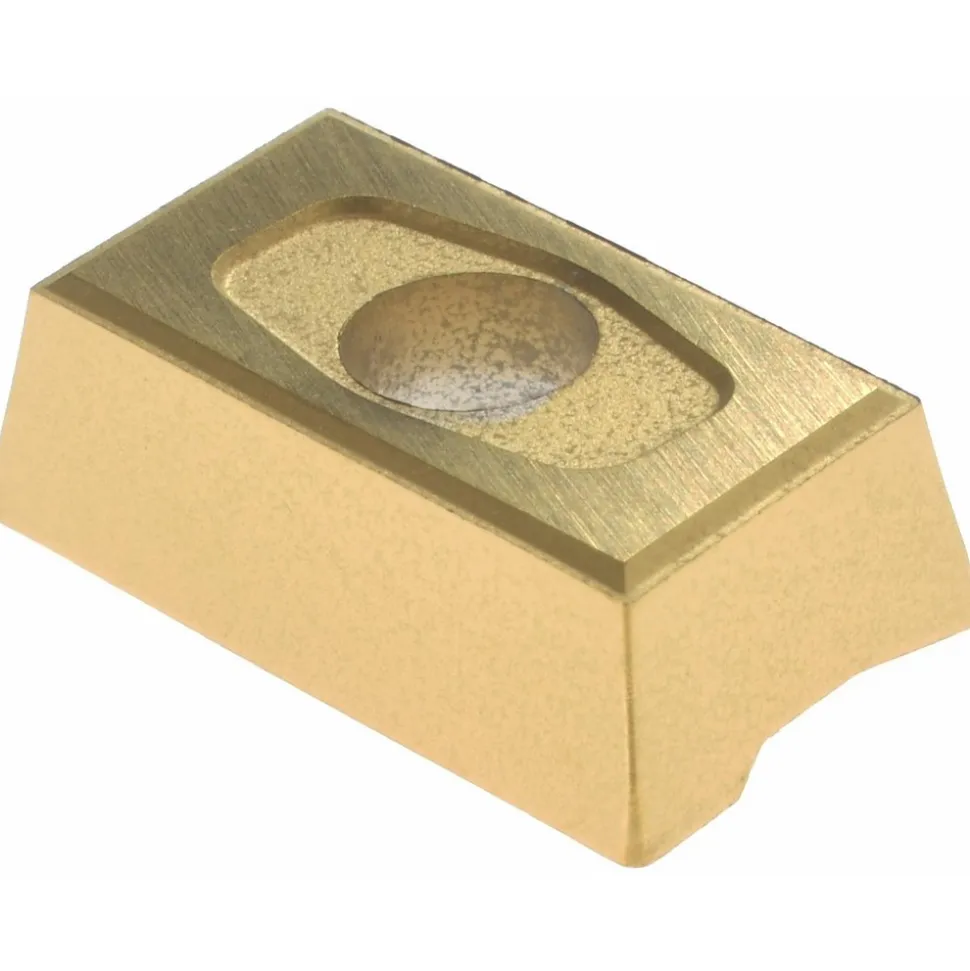

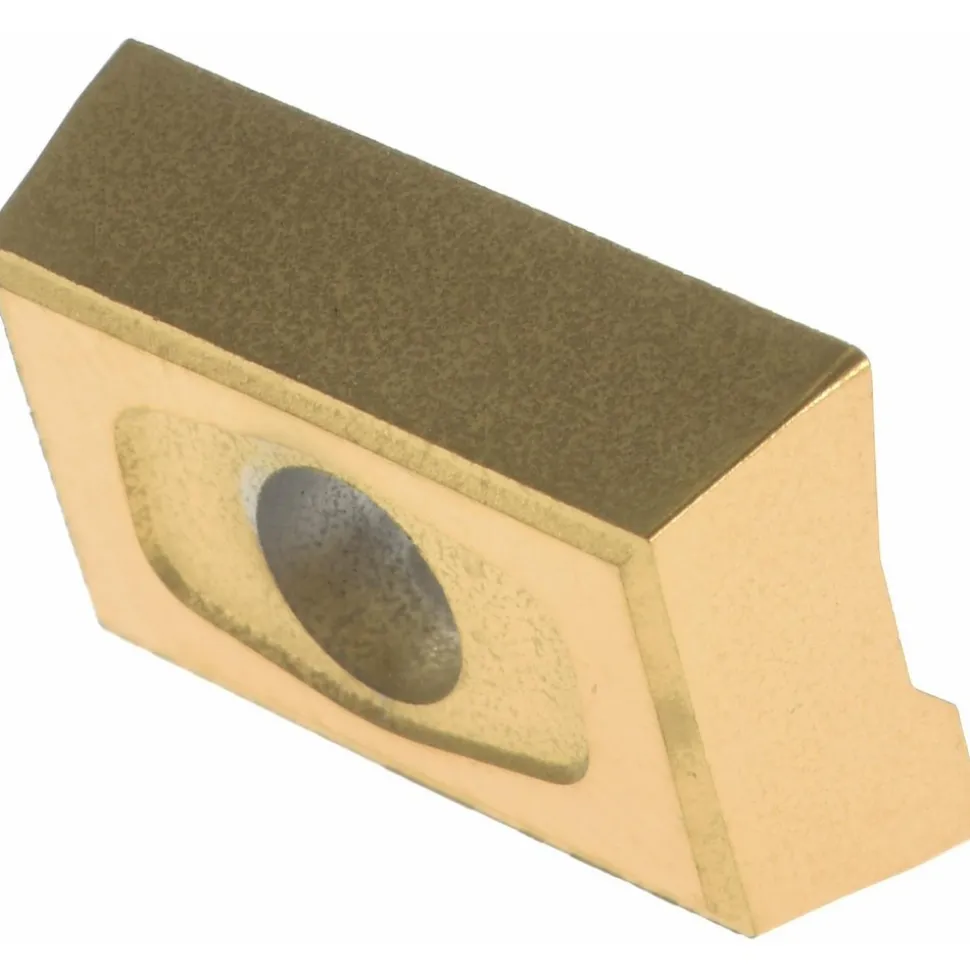

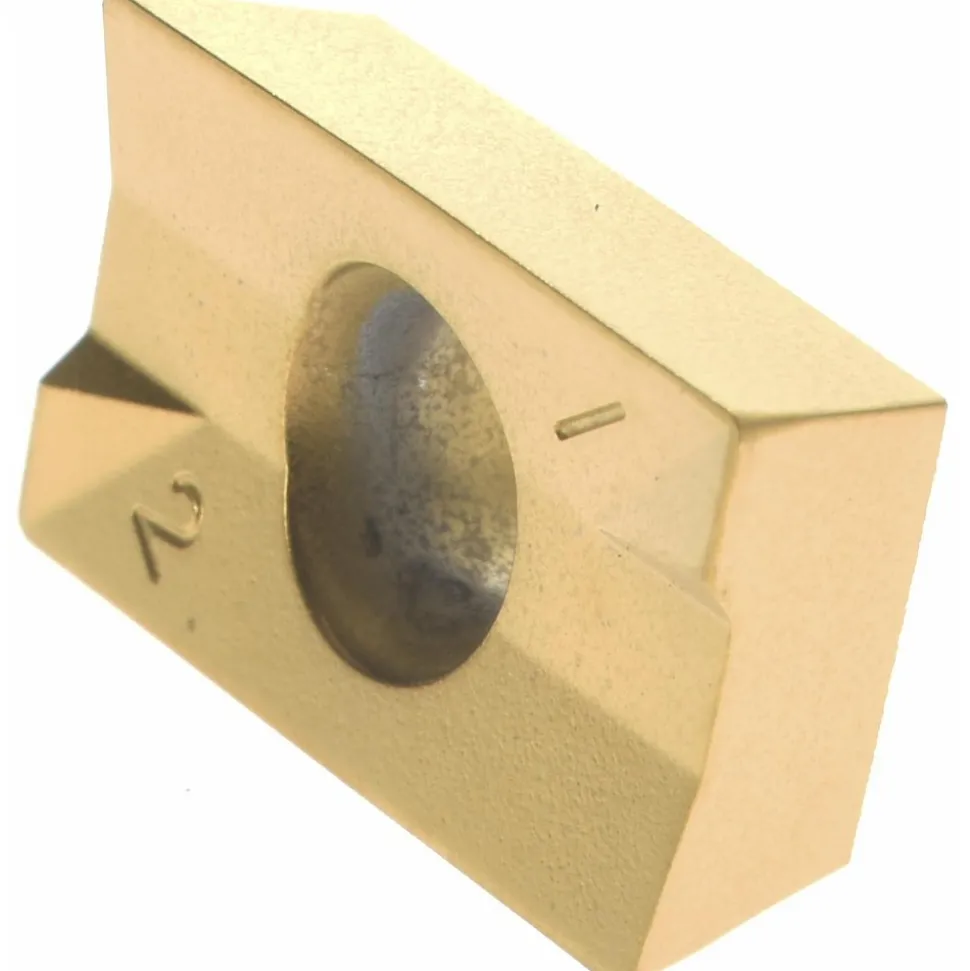

Milling Inserts: Insert Style: APLT; Insert Size: 16; Insert Material: Solid Carbide; Insert Shape: Parallelogram
12,89 $
Specifications
| Insert Style: APLT | Insert Size: 16 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: CVM2 | Corner Radius (Decimal Inch): 0.0150 |
| Number Of Cutting Edges: 2 | Thickness (Decimal Inch – 4 Decimals): 0.1875 |
| Coating/Finish: TiN | Relief Angle: 11.000 |
| Insert Size Code: 347 | Material Grade: C3; C2 |
| Width (Inch): 3/8 | Thickness (Inch): 3/16 |
| Inscribed Circle (Decimal Inch): 0.3750 | Inscribed Circle (Inch): 3/8 |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | Corner Radius (Inch): 1/64 |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | Length Range (Decimal Inch): 0.5000 to 0.6000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.5760 |
| Series: APLT | Coating Process: PVD |
| Hole Diameter (Decimal Inch): 0.1730 | Cutting Edge Effective Length (Decimal Inch): 0.3750 |
| Rake: Positive | Primary Workpiece Material: Stainless Steel |
| Primary Workpiece Material Code: M | Ansi Code: APLT347 |
| Standards: ANSI | Cutting Edge Style: Single Sided |
| Manufacturers Catalog Number: APLT347 | Cutter Series Compatibility: CHM |
| Chip Breaker: Common | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 85 | Width (Decimal Inch – 4 Decimals): 0.3750 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.5910 |
| Country of Origin: UNITED STATES | |
| Insert Style: APLT | |
| Insert Size: 16 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: CVM2 | |
| Corner Radius (Decimal Inch): 0.0150 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | |
| Coating/Finish: TiN | |
| Relief Angle: 11.000 | |
| Insert Size Code: 347 | |
| Material Grade: C3; C2 | |
| Width (Inch): 3/8 | |
| Thickness (Inch): 3/16 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Corner Radius (Inch): 1/64 | |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.5760 | |
| Series: APLT | |
| Coating Process: PVD | |
| Hole Diameter (Decimal Inch): 0.1730 | |
| Cutting Edge Effective Length (Decimal Inch): 0.3750 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel | |
| Primary Workpiece Material Code: M | |
| Ansi Code: APLT347 | |
| Standards: ANSI | |
| Cutting Edge Style: Single Sided | |
| Manufacturers Catalog Number: APLT347 | |
| Cutter Series Compatibility: CHM | |
| Chip Breaker: Common | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 85 | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5910 | |
| Country of Origin: UNITED STATES |
| MSC# | 00053173 |
| Mfr# | 04001 |
| Big Book# | 730 |
