Sale!

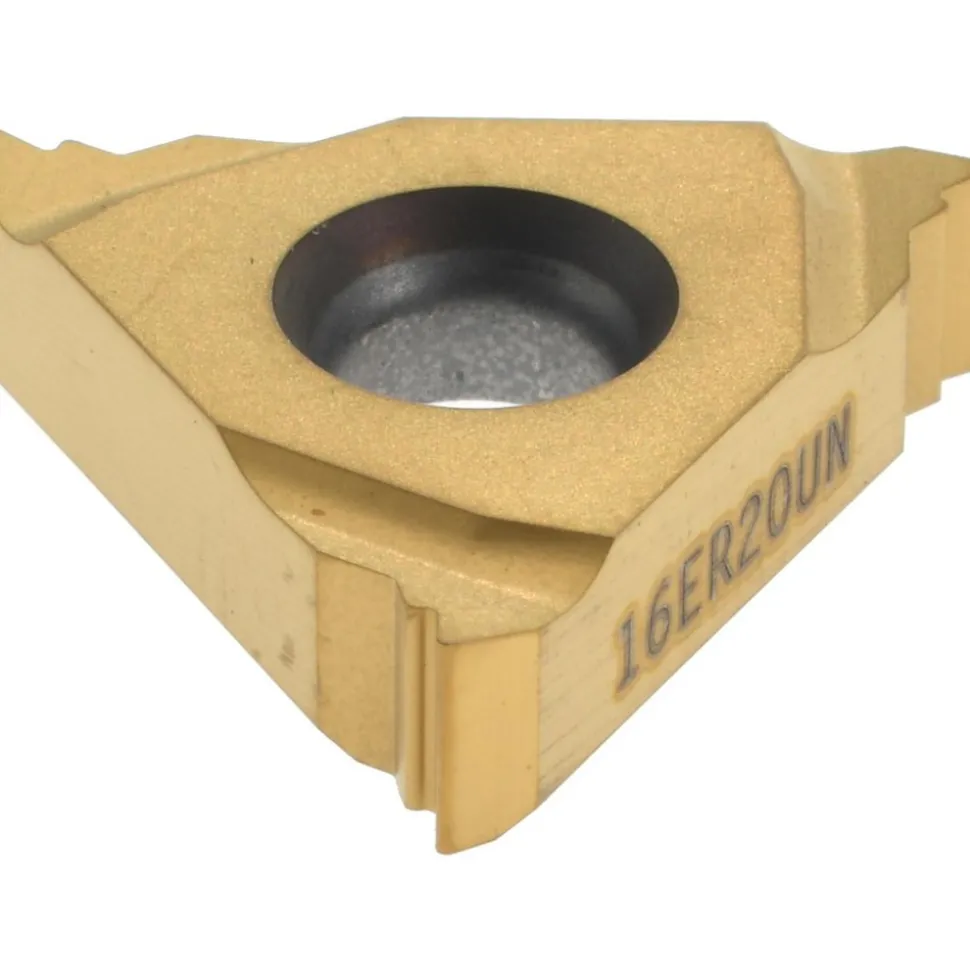

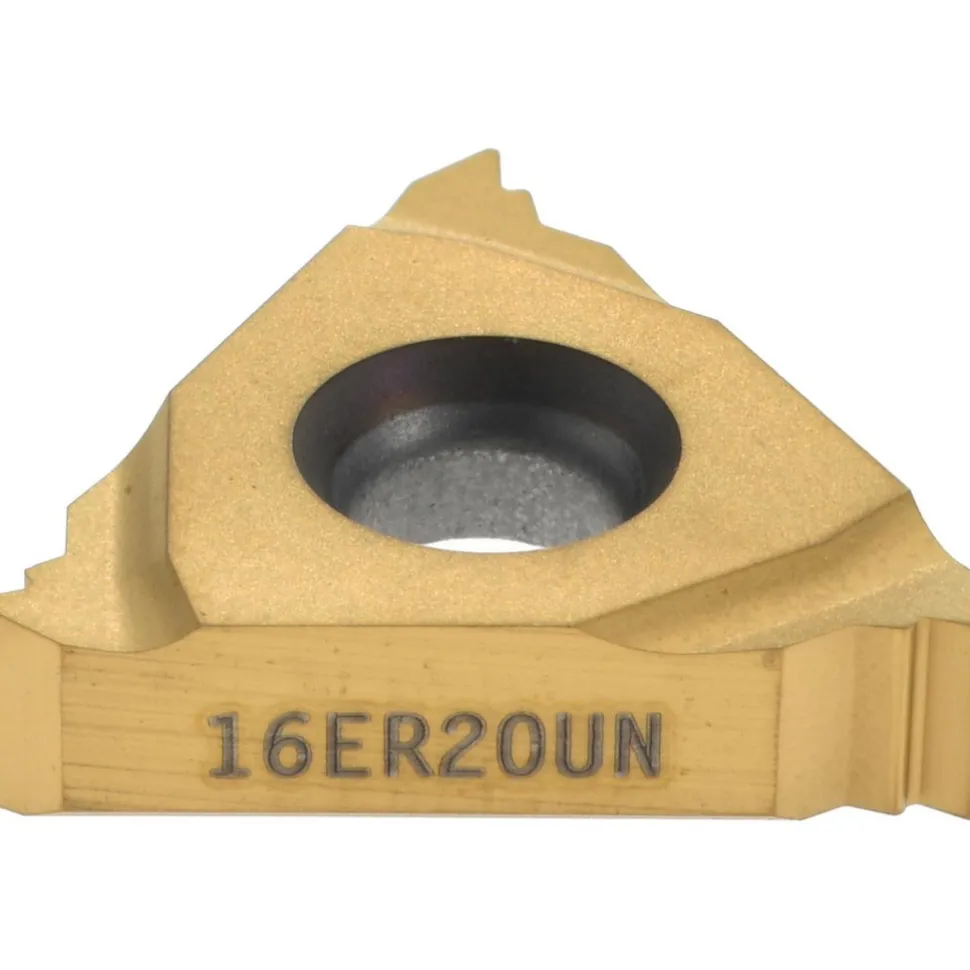

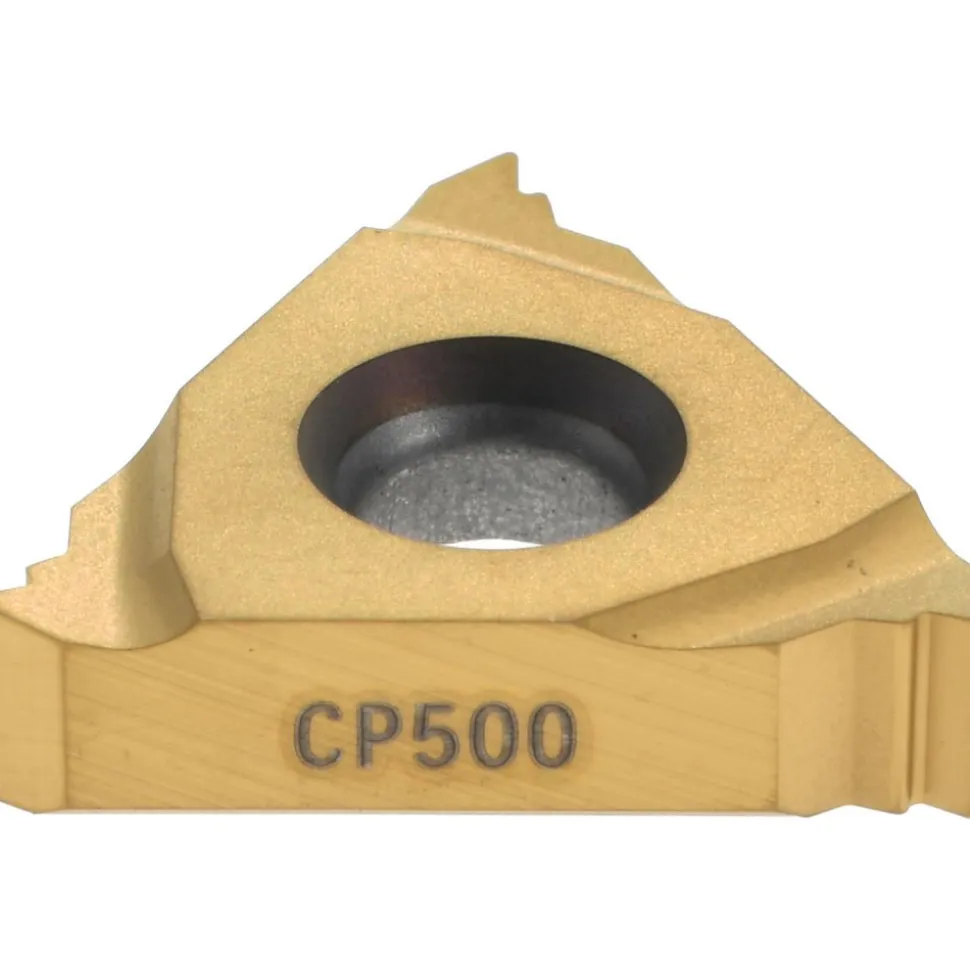

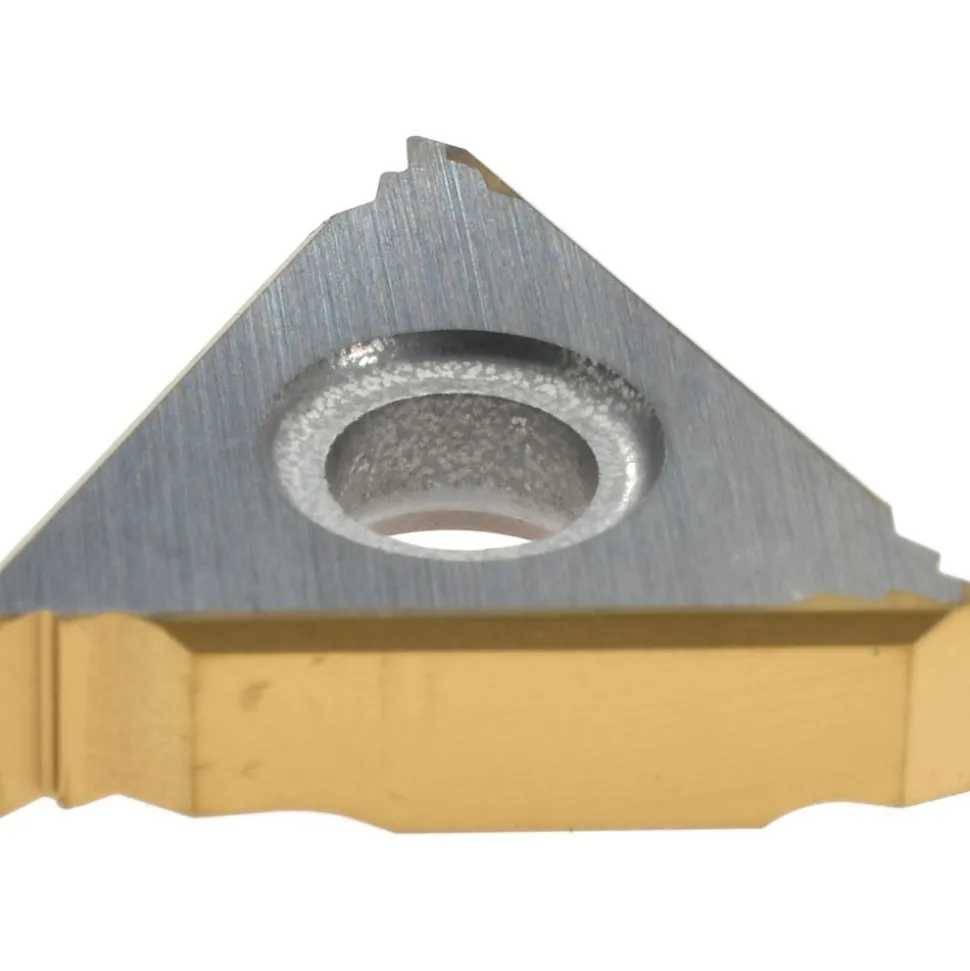

Laydown Threading Insert: 16ER20UNCP500, Carbide

Original price was: 45,00 $.Current price is: 31,89 $.

Specifications

Insert Style: 16ER	Insert Material: Carbide
Manufacturer Grade: CP500	Threads Per Inch: 20
Thread Type: External	Thread Standard: UN
Insert Hand: Right Hand	Included Angle: 60.00
Series: Snap-Tap	Coating Process: PVD
Inscribed Circle (Inch): 3/8	Corner Radius (Decimal Inch): 0.0060
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; S; K; M; N
Standards: ISO	Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.031
Face of Insert to Tip Centerline (Decimal Inch): 0.031	Thickness (Decimal Inch – 4 Decimals): 0.1366
UNSPSC Code: 23291804	Country of Origin: India
Insert Style: 16ER
Insert Material: Carbide
Manufacturer Grade: CP500
Threads Per Inch: 20
Thread Type: External
Thread Standard: UN
Insert Hand: Right Hand
Included Angle: 60.00
Series: Snap-Tap
Coating Process: PVD
Inscribed Circle (Inch): 3/8
Corner Radius (Decimal Inch): 0.0060
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; K; M; N
Standards: ISO
Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.031
Face of Insert to Tip Centerline (Decimal Inch): 0.031
Thickness (Decimal Inch – 4 Decimals): 0.1366
UNSPSC Code: 23291804
Country of Origin: India
