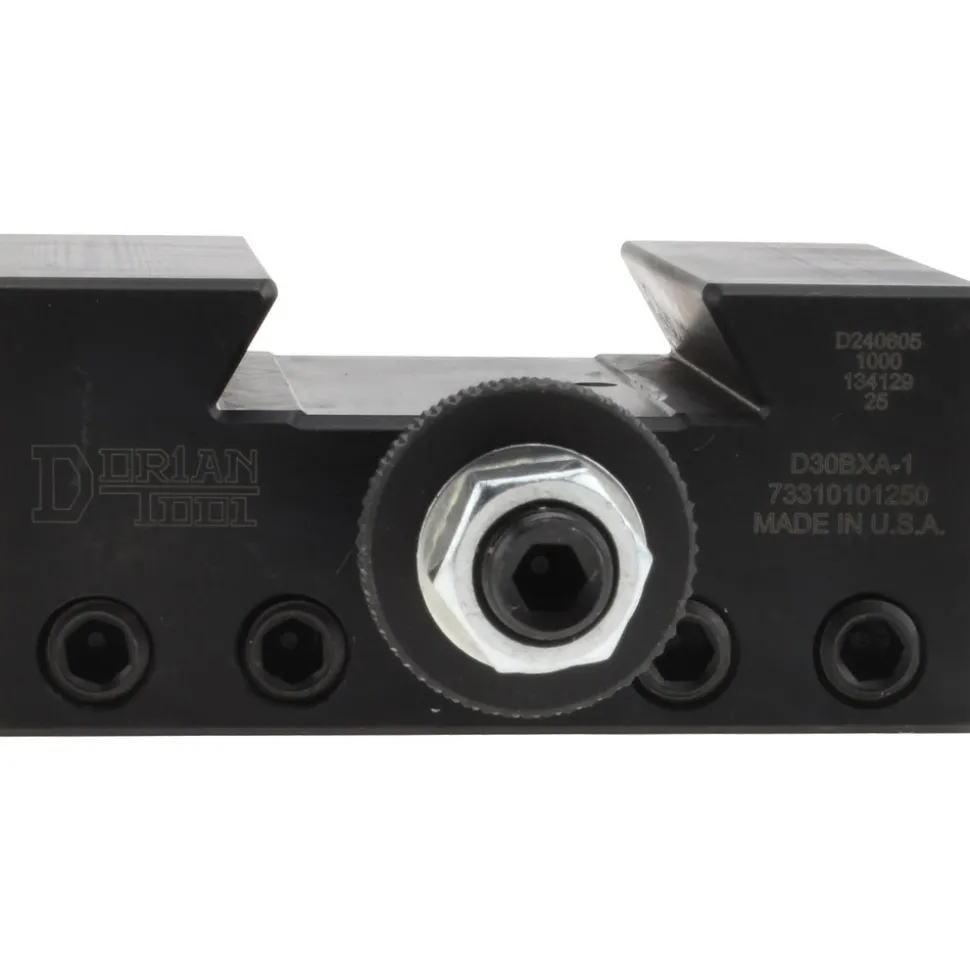

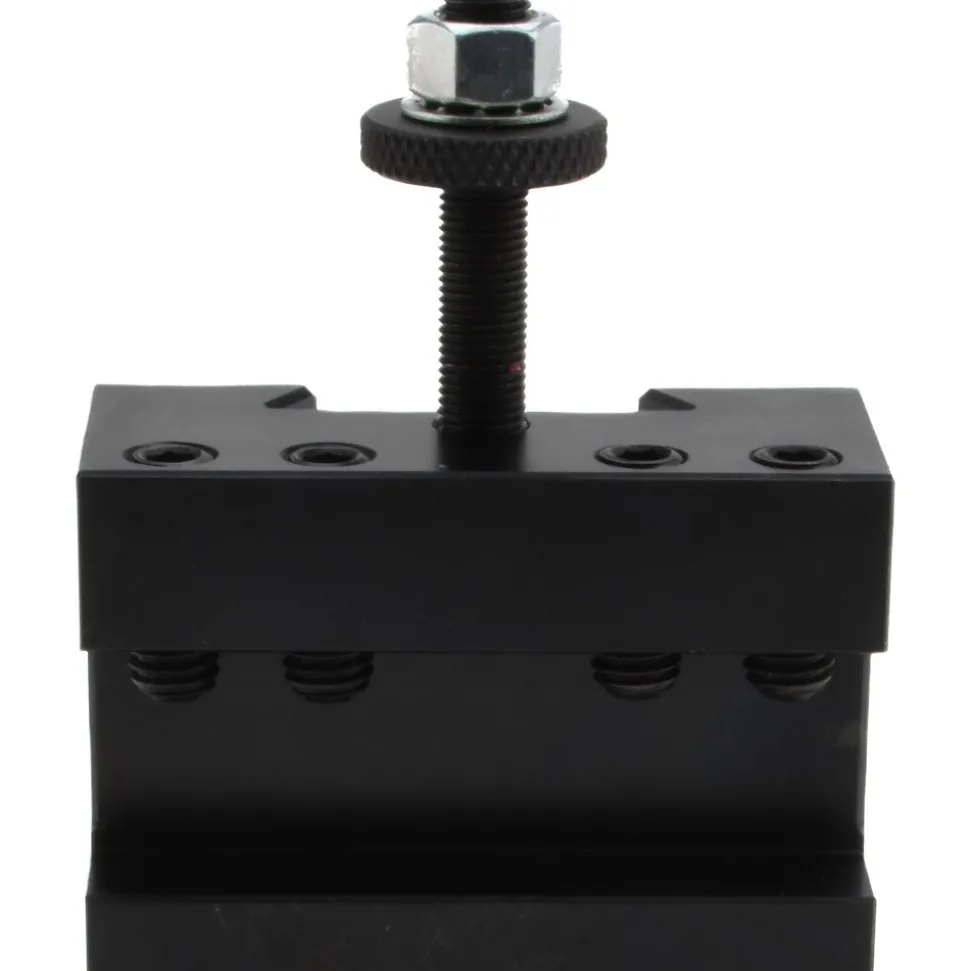

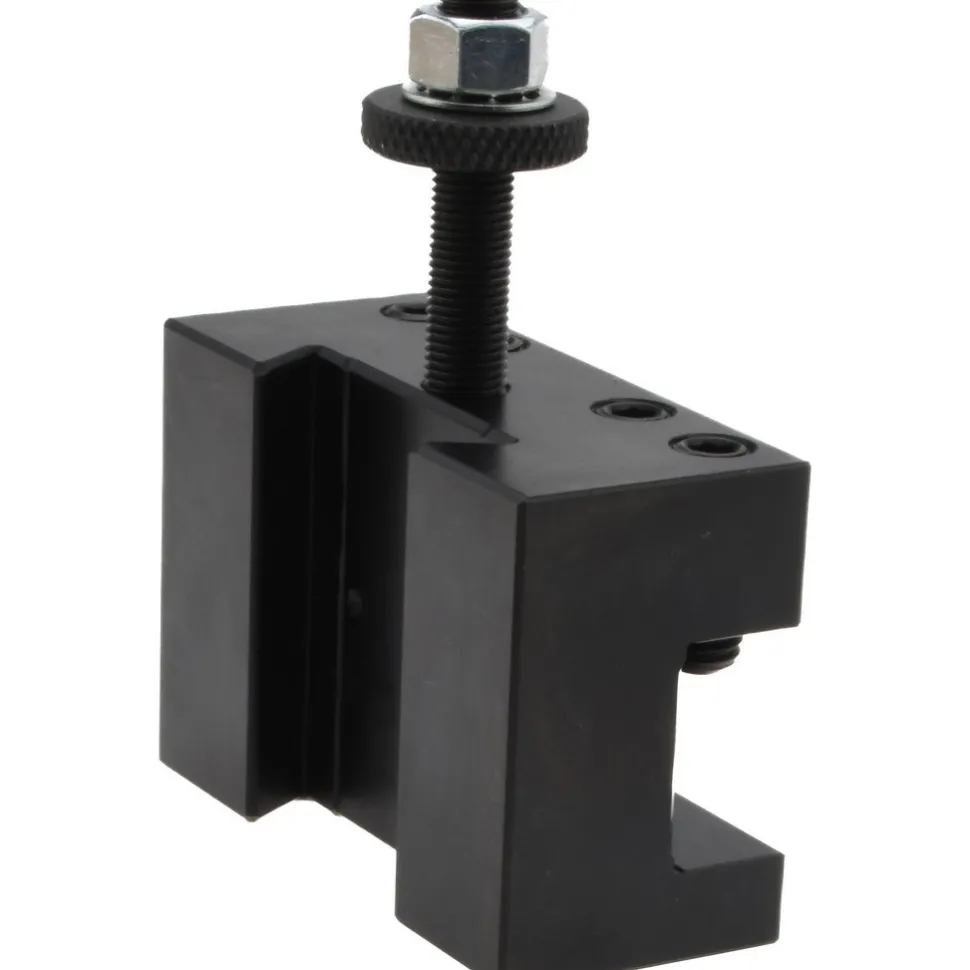

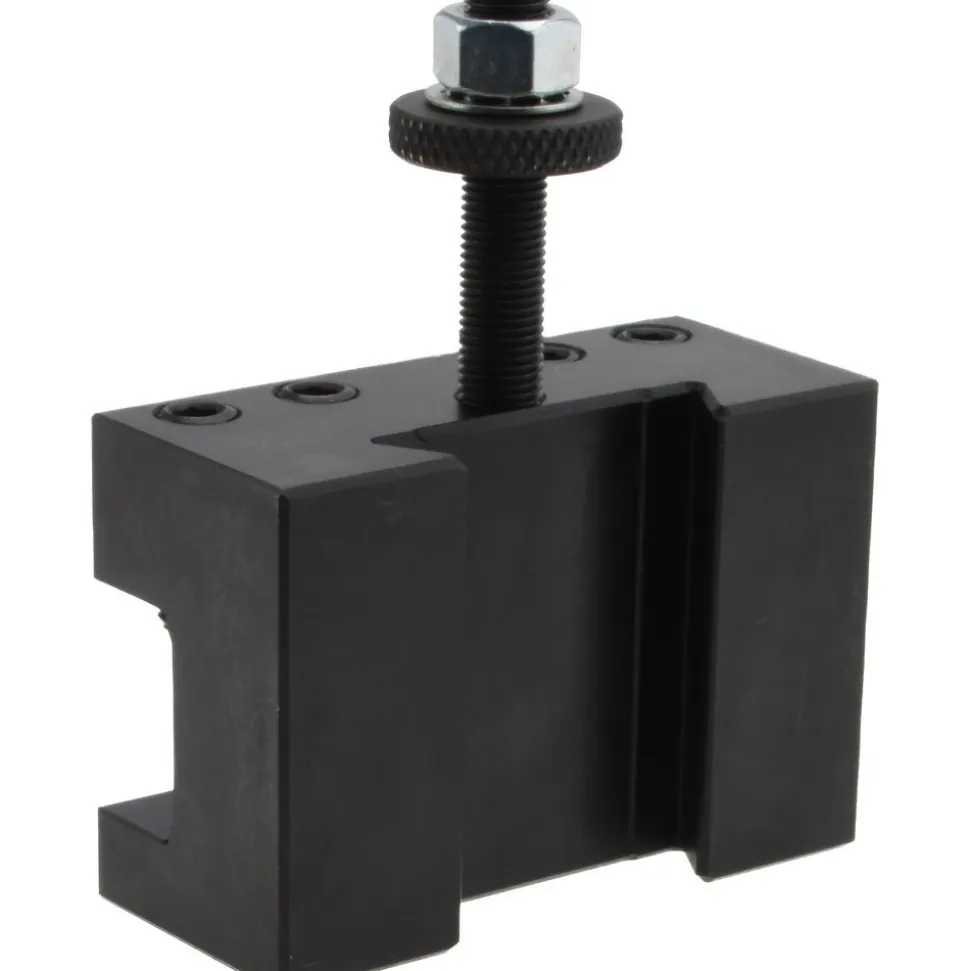

Lathe Tool Post Holder: Series BXA, #1, Turning & Facing
Original price was: 129,00 $.85,89 $Current price is: 85,89 $.
Specifications
| Tool Post Holder Number: 1 | Tool Post Holder Type: Turning & Facing Holder |
| Lathe Swing (mm): 330 to 380 | Lathe Swing (Inch): 13 to 15 |
| Through Coolant: No | Overall Height (mm): 44.45 |
| Overall Height (Inch): 2-1/4 | Overall Height (Decimal Inch): 2.2500 |
| Overall Height: 2.25 in | Overall Length (Decimal Inch): 3.2500 |
| Overall Length (Inch): 3-1/4 | Maximum Cutting Tool Size (Inch): 1 |
| Maximum Cutting Tool Size (mm): 25.40 | Centerline Height (Decimal Inch): 1.3125 |
| Centerline Height (Inch): 1-5/16 | Centerline Height (mm): 33.34 |
| Series: BXA | Dorian #1 – Dimension A (Decimal Inch): 0.4375 |
| Dorian #1 – Dimension A (Inch): 7/16 | Dorian #1 – Dimension A (mm): 11.11 |
| UNSPSC Code: 27112800 | Country of Origin: UNITED STATES |
| Tool Post Holder Number: 1 | |
| Tool Post Holder Type: Turning & Facing Holder | |
| Lathe Swing (mm): 330 to 380 | |
| Lathe Swing (Inch): 13 to 15 | |
| Through Coolant: No | |
| Overall Height (mm): 44.45 | |
| Overall Height (Inch): 2-1/4 | |
| Overall Height (Decimal Inch): 2.2500 | |
| Overall Height: 2.25 in | |
| Overall Length (Decimal Inch): 3.2500 | |
| Overall Length (Inch): 3-1/4 | |
| Maximum Cutting Tool Size (Inch): 1 | |
| Maximum Cutting Tool Size (mm): 25.40 | |
| Centerline Height (Decimal Inch): 1.3125 | |
| Centerline Height (Inch): 1-5/16 | |
| Centerline Height (mm): 33.34 | |
| Series: BXA | |
| Dorian #1 – Dimension A (Decimal Inch): 0.4375 | |
| Dorian #1 – Dimension A (Inch): 7/16 | |
| Dorian #1 – Dimension A (mm): 11.11 | |
| UNSPSC Code: 27112800 | |
| Country of Origin: UNITED STATES |
| MSC# | 79046116 |
| Mfr# | 73310101250 |
| Big Book# | 1274 |
