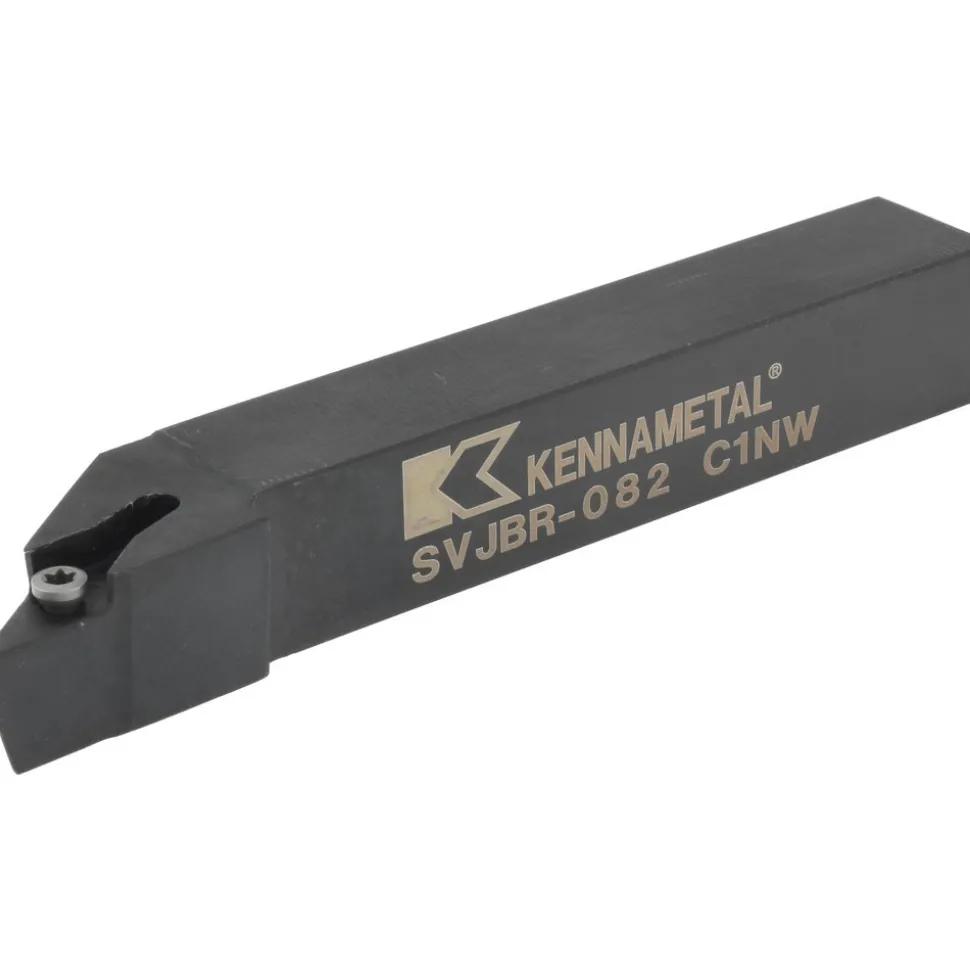

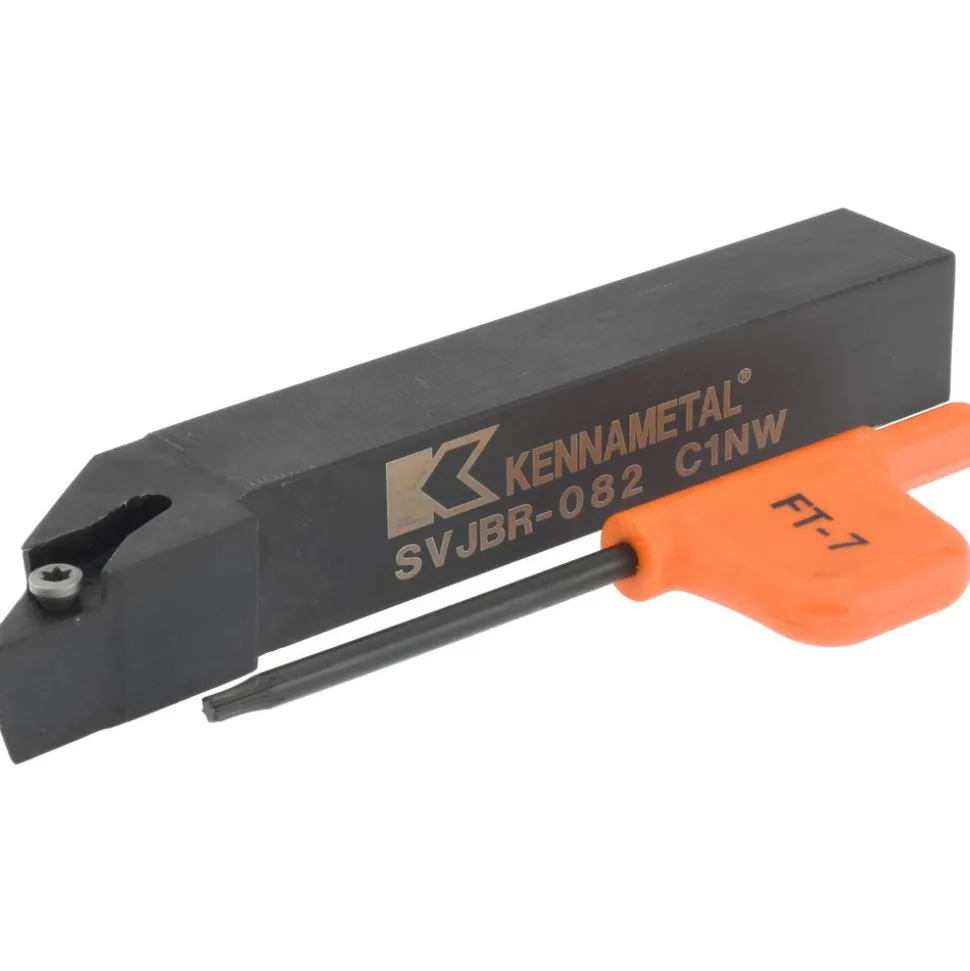

Indexable Turning Toolholder: SVJBR & L082, Screw
Original price was: 175,00 $.119,89 $Current price is: 119,89 $.
Specifications
| Toolholder Style: SVJB | Hand of Holder: Right Hand |
| Insert Compatibility: VB..22. | Insert Holding Method: Screw |
| Shank Width (Inch): 1/2 | Shank Height (Inch): 1/2 |
| Overall Length (Decimal Inch): 3.5000 | Shank Height (mm): 12.70 |
| Coolant Through: No | Rake: Neutral |
| Rake Angle: 0 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 0.5000 | Shank Height (Decimal Inch): 0.5000 |
| Series: Screw-On | Overall Length (Inch): 3-1/2 |
| Head Length (Decimal Inch): 0.8800 | Head Length (mm): 22.23 |
| Back of Bar to Cutting Edge (Inch): 5/8 | Back of Bar to Cutting Edge (Decimal Inch): 0.6250 |
| Back of Bar to Cutting Edge (mm): 15.88 | Insert Inscribed Circle (Decimal Inch): 0.2500 |
| Insert Inscribed Circle (Inch): 1/4 | Toolholder Material: Steel |
| Complete Insert Compatibility: VB.. 221 | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: L082; SVJBR | Country of Origin: UNITED STATES |
| Toolholder Style: SVJB | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: VB..22. | |
| Insert Holding Method: Screw | |
| Shank Width (Inch): 1/2 | |
| Shank Height (Inch): 1/2 | |
| Overall Length (Decimal Inch): 3.5000 | |
| Shank Height (mm): 12.70 | |
| Coolant Through: No | |
| Rake: Neutral | |
| Rake Angle: 0 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.5000 | |
| Shank Height (Decimal Inch): 0.5000 | |
| Series: Screw-On | |
| Overall Length (Inch): 3-1/2 | |
| Head Length (Decimal Inch): 0.8800 | |
| Head Length (mm): 22.23 | |
| Back of Bar to Cutting Edge (Inch): 5/8 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.6250 | |
| Back of Bar to Cutting Edge (mm): 15.88 | |
| Insert Inscribed Circle (Decimal Inch): 0.2500 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: VB.. 221 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: L082; SVJBR | |
| Country of Origin: UNITED STATES |
| MSC# | 64922263 |
| Mfr# | 1094535 |
| Big Book# | 838 |
