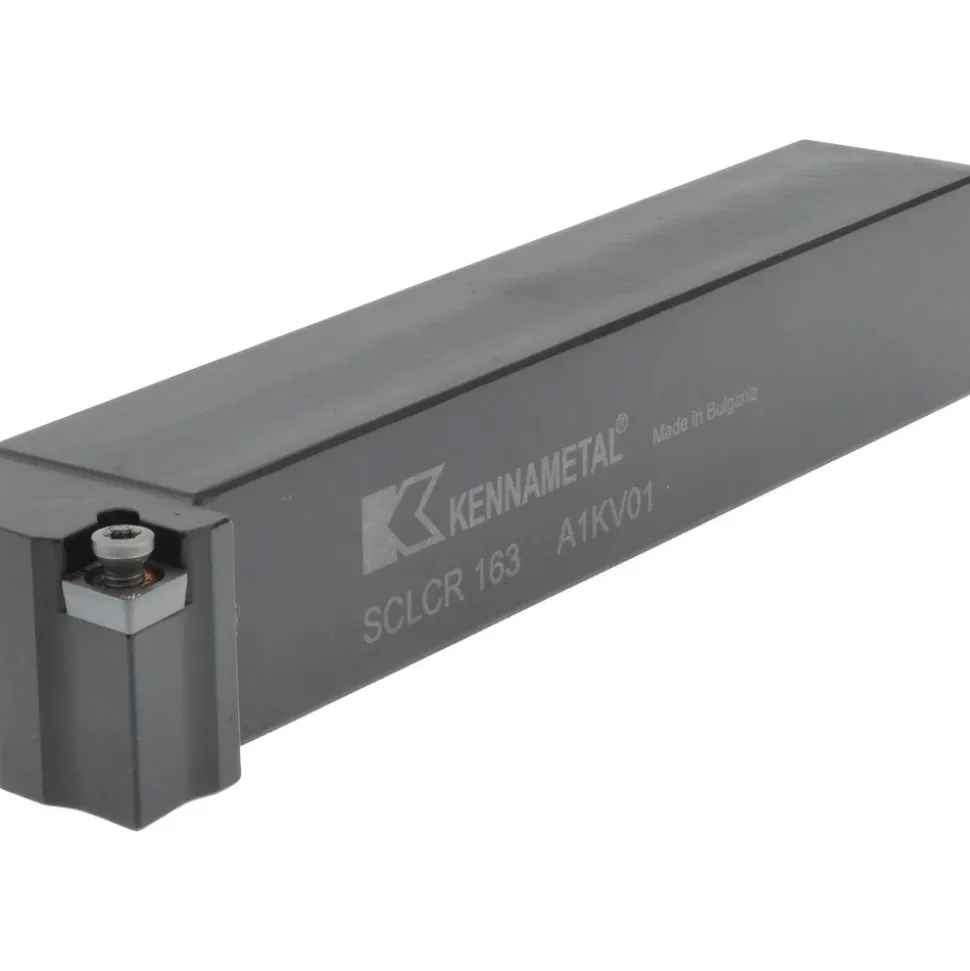

Indexable Turning Toolholder: SCLCR & L163, Screw
Original price was: 147,00 $.101,89 $Current price is: 101,89 $.
Specifications
| Toolholder Style: SCLC | Hand of Holder: Right Hand |
| Insert Compatibility: CC..32.5. | Insert Holding Method: Screw |
| Shank Width (Inch): 1 | Shank Height (Inch): 1 |
| Overall Length (Decimal Inch): 6.0000 | Shank Height (mm): 25.40 |
| Coolant Through: No | Rake: Neutral |
| Rake Angle: 0 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 1.0000 | Shank Height (Decimal Inch): 1.0000 |
| Series: Screw-On | Overall Length (Inch): 6 |
| Head Length (Decimal Inch): 0.6200 | Head Length (mm): 15.75 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | Back of Bar to Cutting Edge (mm): 31.75 |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | Insert Inscribed Circle (Inch): 3/8 |
| Toolholder Material: Steel | Complete Insert Compatibility: CC.. 3252 |
| UNSPSC Code: 23153308 | Manufacturers Catalog Number: L163; SCLCR |
| Country of Origin: Bulgaria | |
| Toolholder Style: SCLC | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: CC..32.5. | |
| Insert Holding Method: Screw | |
| Shank Width (Inch): 1 | |
| Shank Height (Inch): 1 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Shank Height (mm): 25.40 | |
| Coolant Through: No | |
| Rake: Neutral | |
| Rake Angle: 0 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 1.0000 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Screw-On | |
| Overall Length (Inch): 6 | |
| Head Length (Decimal Inch): 0.6200 | |
| Head Length (mm): 15.75 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| Back of Bar to Cutting Edge (mm): 31.75 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: CC.. 3252 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: L163; SCLCR | |
| Country of Origin: Bulgaria |
| MSC# | 64922321 |
| Mfr# | 1094576 |
| Big Book# | 837 |
