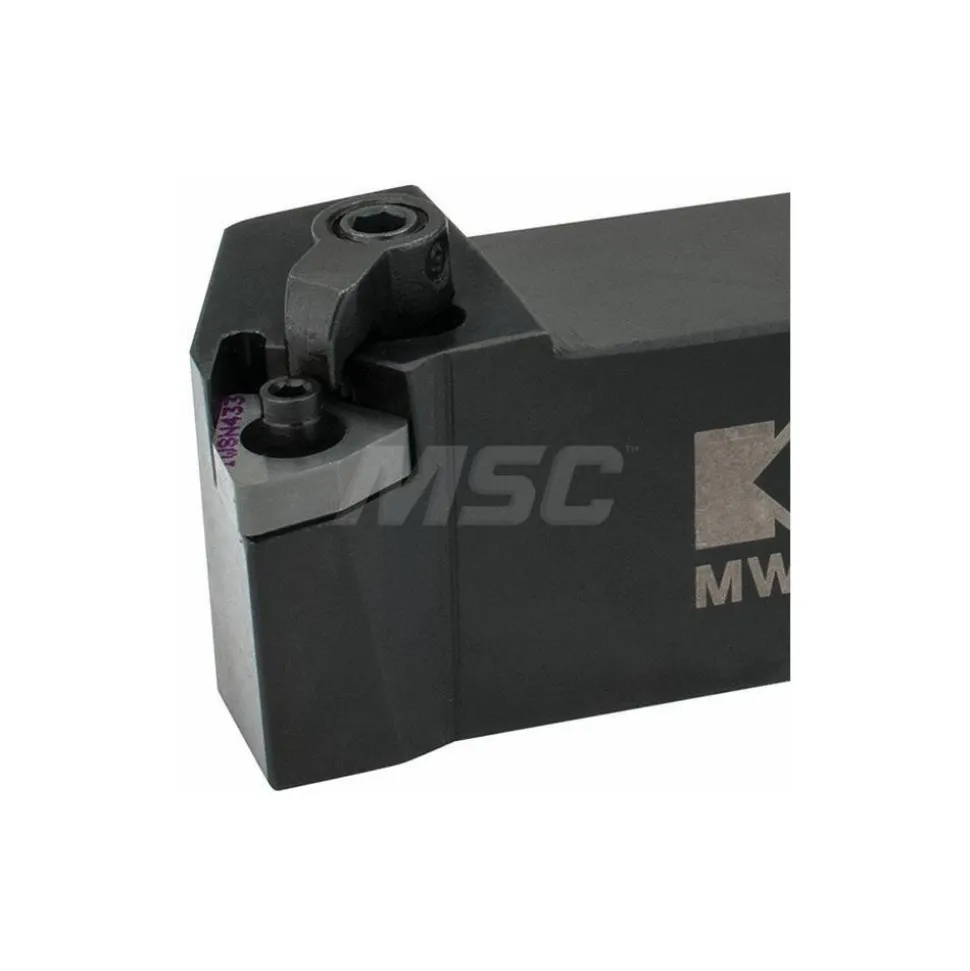

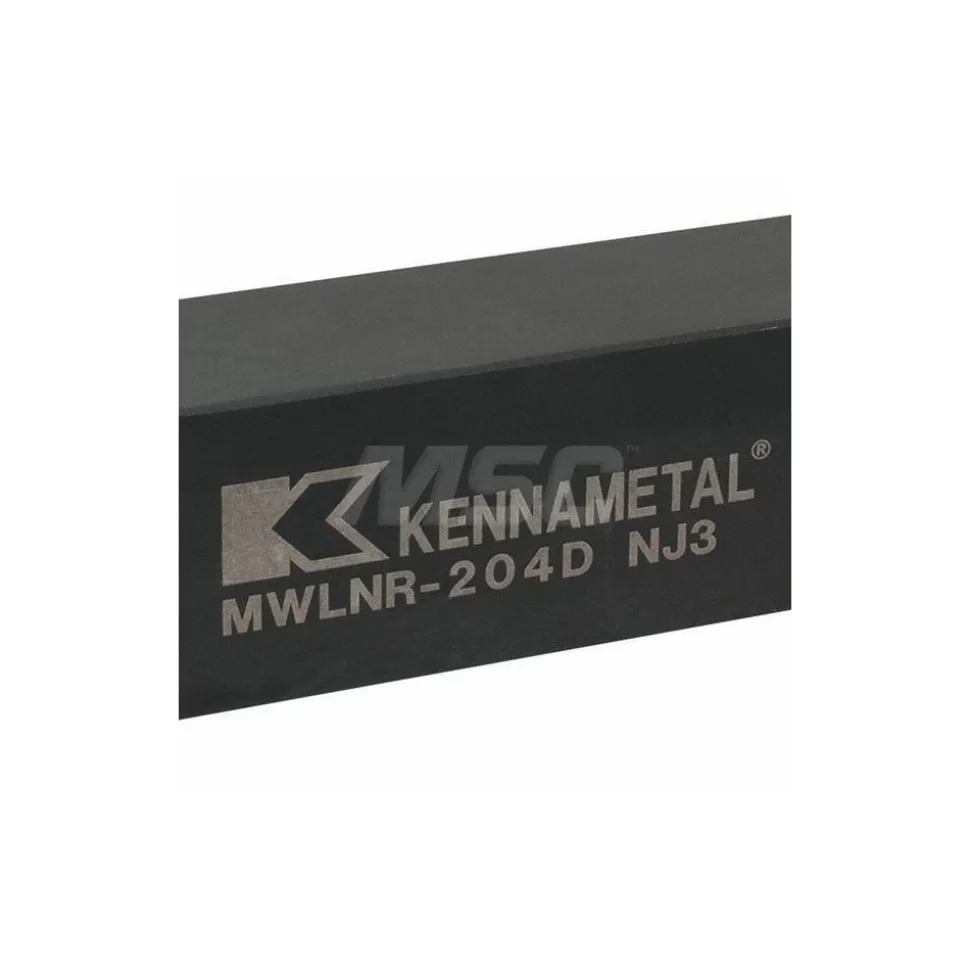

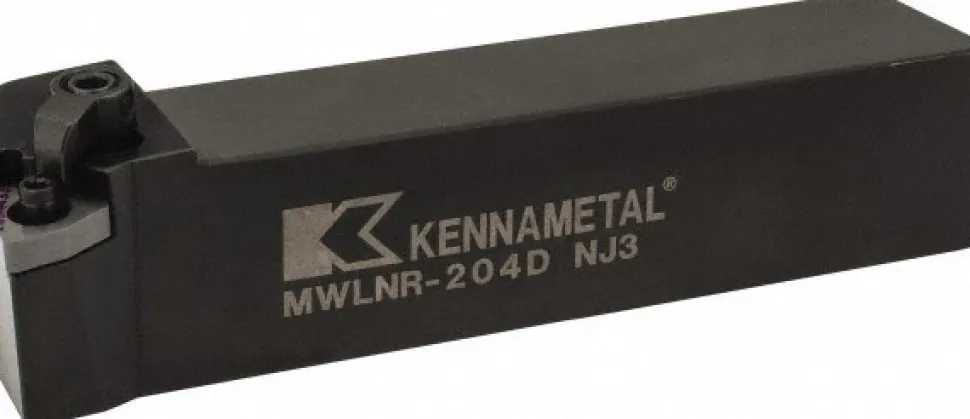

Indexable Turning Toolholder: MWLNR & L204D, Clamp & Screw
Original price was: 165,00 $.110,89 $Current price is: 110,89 $.
Specifications
| Toolholder Style: MWLN | Hand of Holder: Right Hand |
| Insert Compatibility: WN..43. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 1-1/4 | Shank Height (Inch): 1-1/4 |
| Overall Length (Decimal Inch): 6.0000 | Shank Height (mm): 31.75 |
| Coolant Through: No | Rake: Negative |
| Rake Angle: -5 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 1.2500 | Shank Height (Decimal Inch): 1.2500 |
| Series: Kenloc | Overall Length (Inch): 6 |
| Head Length (Decimal Inch): 1.1300 | Head Length (mm): 28.58 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.5000 | Back of Bar to Cutting Edge (mm): 38.10 |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | Insert Inscribed Circle (Inch): 1/2 |
| Toolholder Material: Steel | Complete Insert Compatibility: WN.. 432 |
| UNSPSC Code: 23153308 | Manufacturers Catalog Number: MWLNR; L204D |
| Country of Origin: UNITED STATES | |
| Toolholder Style: MWLN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: WN..43. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 1-1/4 | |
| Shank Height (Inch): 1-1/4 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Shank Height (mm): 31.75 | |
| Coolant Through: No | |
| Rake: Negative | |
| Rake Angle: -5 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 1.2500 | |
| Shank Height (Decimal Inch): 1.2500 | |
| Series: Kenloc | |
| Overall Length (Inch): 6 | |
| Head Length (Decimal Inch): 1.1300 | |
| Head Length (mm): 28.58 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.5000 | |
| Back of Bar to Cutting Edge (mm): 38.10 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: WN.. 432 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MWLNR; L204D | |
| Country of Origin: UNITED STATES |
| MSC# | 64922412 |
| Mfr# | 1095989 |
| Big Book# | 834 |
