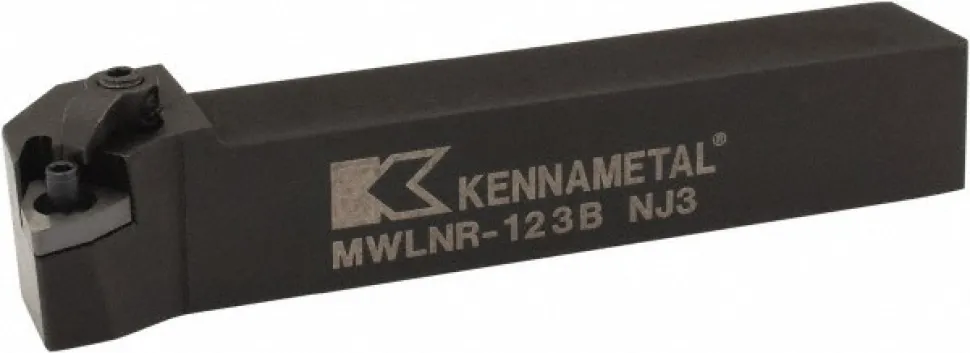

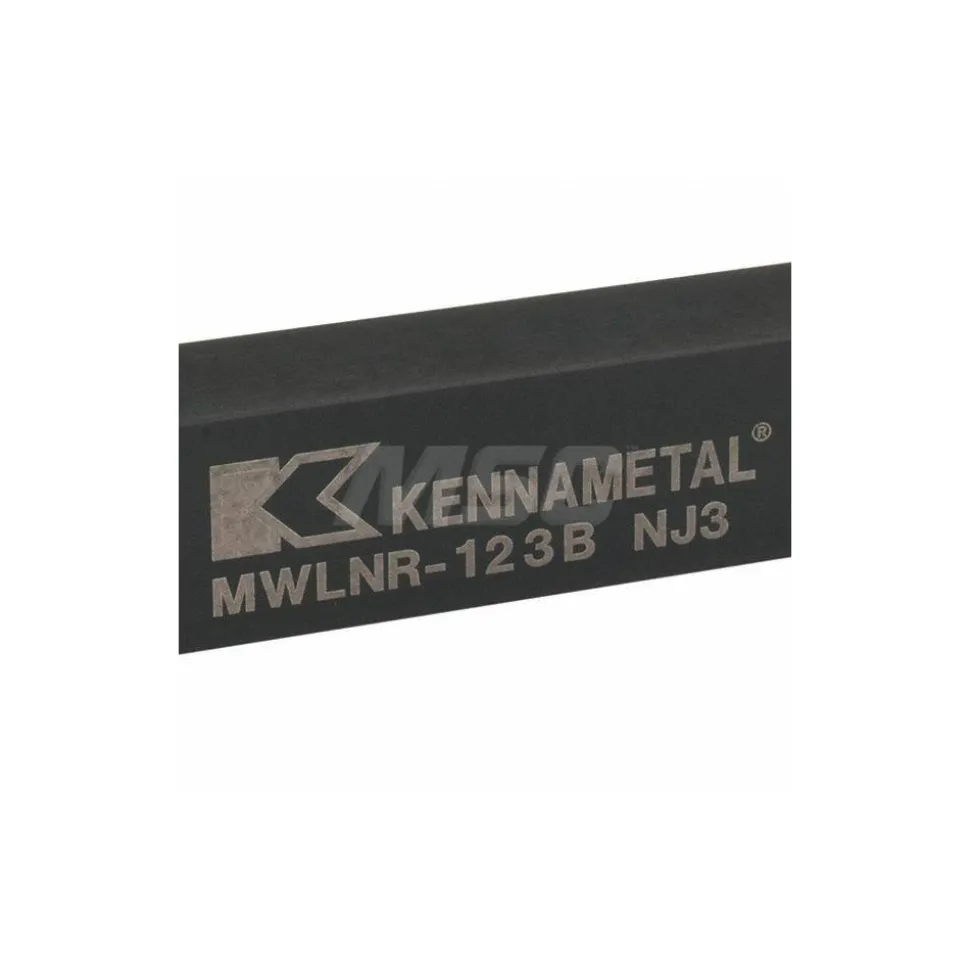

Indexable Turning Toolholder: MWLNR & L123B, Clamp & Screw
Original price was: 137,00 $.94,99 $Current price is: 94,99 $.
Specifications
| Toolholder Style: MWLN | Hand of Holder: Right Hand |
| Insert Compatibility: WN..33. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Shank Height (mm): 19.05 |
| Coolant Through: No | Rake: Negative |
| Rake Angle: -5 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 0.7500 | Shank Height (Decimal Inch): 0.7500 |
| Series: Kenloc | Overall Length (Inch): 4-1/2 |
| Head Length (Decimal Inch): 1.0000 | Head Length (mm): 25.40 |
| Back of Bar to Cutting Edge (Inch): 1 | Back of Bar to Cutting Edge (Decimal Inch): 1.0000 |
| Back of Bar to Cutting Edge (mm): 25.40 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: WN.. 332 | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: MWLNR; L123B | Country of Origin: UNITED STATES |
| Toolholder Style: MWLN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: WN..33. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Height (mm): 19.05 | |
| Coolant Through: No | |
| Rake: Negative | |
| Rake Angle: -5 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: Kenloc | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 1.0000 | |
| Head Length (mm): 25.40 | |
| Back of Bar to Cutting Edge (Inch): 1 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Back of Bar to Cutting Edge (mm): 25.40 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: WN.. 332 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MWLNR; L123B | |
| Country of Origin: UNITED STATES |
| MSC# | 64922826 |
| Mfr# | 1096362 |
| Big Book# | 833 |
