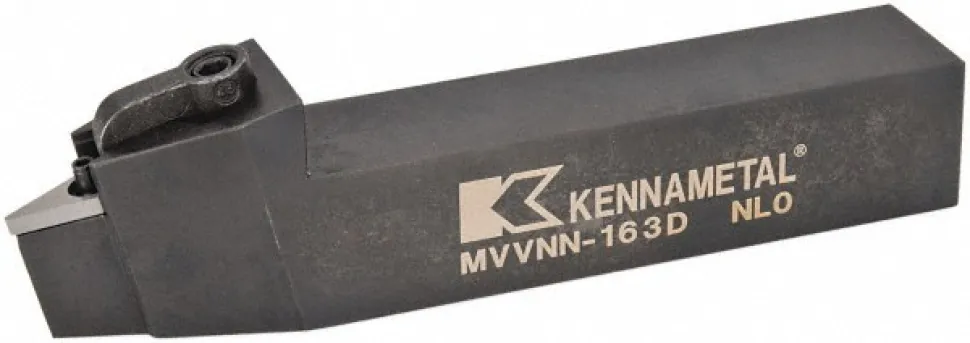

Indexable Turning Toolholder: MVVNN163D, Clamp & Screw
138,89 $
Specifications
| Toolholder Style: MVVN | Hand of Holder: Neutral |
| Insert Compatibility: VN..33. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 1 | Shank Height (Inch): 1 |
| Overall Length (Decimal Inch): 6.0000 | Shank Height (mm): 25.40 |
| Coolant Through: No | Rake: Negative |
| Rake Angle: 0 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 1.0000 | Shank Height (Decimal Inch): 1.0000 |
| Series: Kenloc | Overall Length (Inch): 6 |
| Head Length (Decimal Inch): 1.7700 | Back of Bar to Cutting Edge (Inch): 1/2 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5000 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: VN.. 332 | Coating Classification: Kennametal |
| UNSPSC Code: 23153308 | Manufacturers Catalog Number: MVVNN163D |
| Country of Origin: UNITED STATES | |
| Toolholder Style: MVVN | |
| Hand of Holder: Neutral | |
| Insert Compatibility: VN..33. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 1 | |
| Shank Height (Inch): 1 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Shank Height (mm): 25.40 | |
| Coolant Through: No | |
| Rake: Negative | |
| Rake Angle: 0 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 1.0000 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Kenloc | |
| Overall Length (Inch): 6 | |
| Head Length (Decimal Inch): 1.7700 | |
| Back of Bar to Cutting Edge (Inch): 1/2 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: VN.. 332 | |
| Coating Classification: Kennametal | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MVVNN163D | |
| Country of Origin: UNITED STATES |
| MSC# | 73162935 |
| Mfr# | 1096004 |
| Big Book# | 834 |
