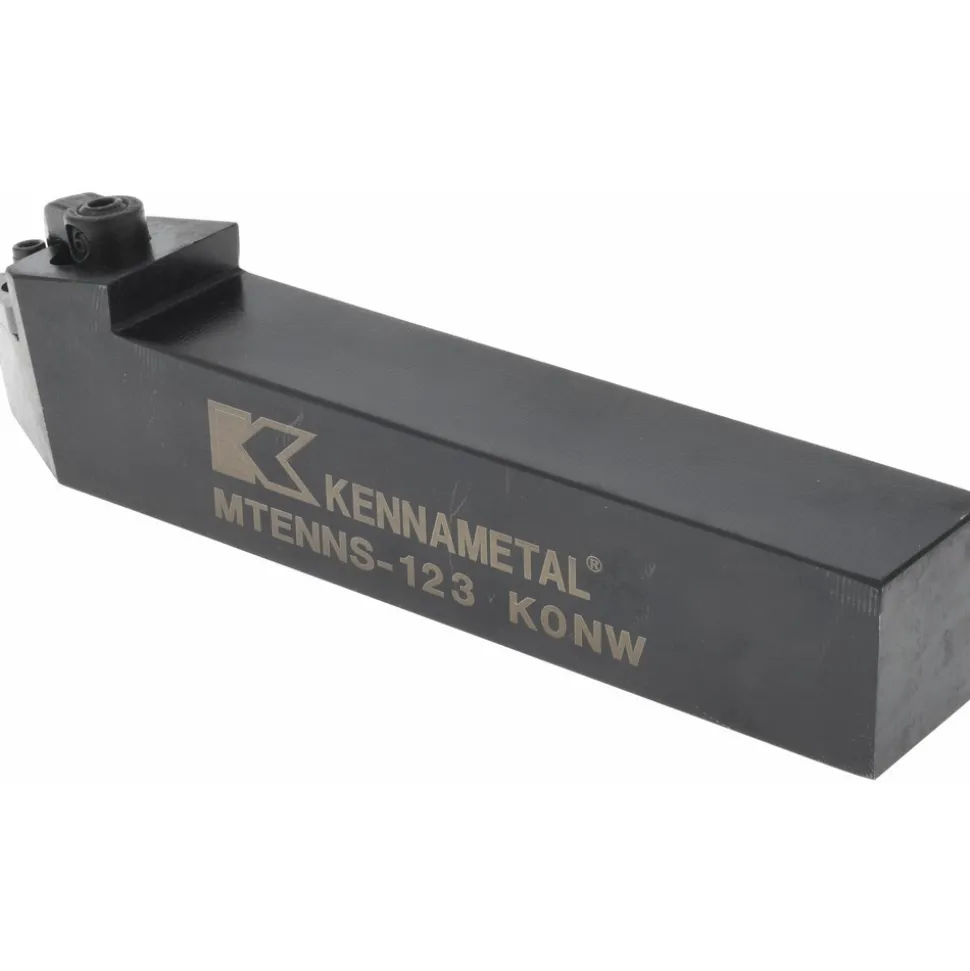

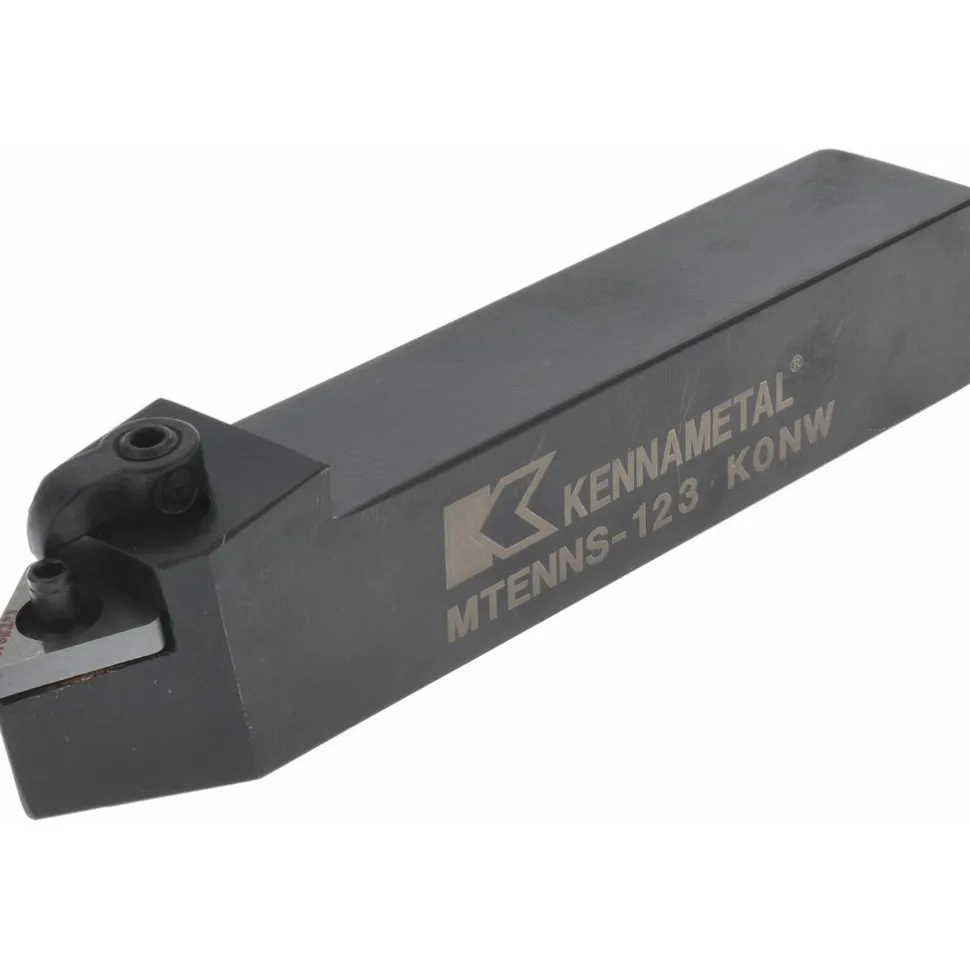

Indexable Turning Toolholder: MTENNS123, Clamp & Screw
88,99 $
Specifications
| Toolholder Style: MTEN | Hand of Holder: Neutral |
| Insert Compatibility: TN..33. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Shank Height (mm): 19.05 |
| Coolant Through: No | Rake: Negative |
| Rake Angle: -10 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 0.7500 | Shank Height (Decimal Inch): 0.7500 |
| Series: Kenloc | Overall Length (Inch): 4-1/2 |
| Head Length (Decimal Inch): 1.1600 | Back of Bar to Cutting Edge (Inch): 3/8 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.3750 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: TN.. 332 | Coating Classification: Kennametal |
| UNSPSC Code: 23153308 | Manufacturers Catalog Number: MTENNS123 |
| Country of Origin: UNITED STATES | |
| Toolholder Style: MTEN | |
| Hand of Holder: Neutral | |
| Insert Compatibility: TN..33. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Height (mm): 19.05 | |
| Coolant Through: No | |
| Rake: Negative | |
| Rake Angle: -10 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: Kenloc | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 1.1600 | |
| Back of Bar to Cutting Edge (Inch): 3/8 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: TN.. 332 | |
| Coating Classification: Kennametal | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MTENNS123 | |
| Country of Origin: UNITED STATES |
| MSC# | 48750624 |
| Mfr# | 1096352 |
| Big Book# | 834 |
