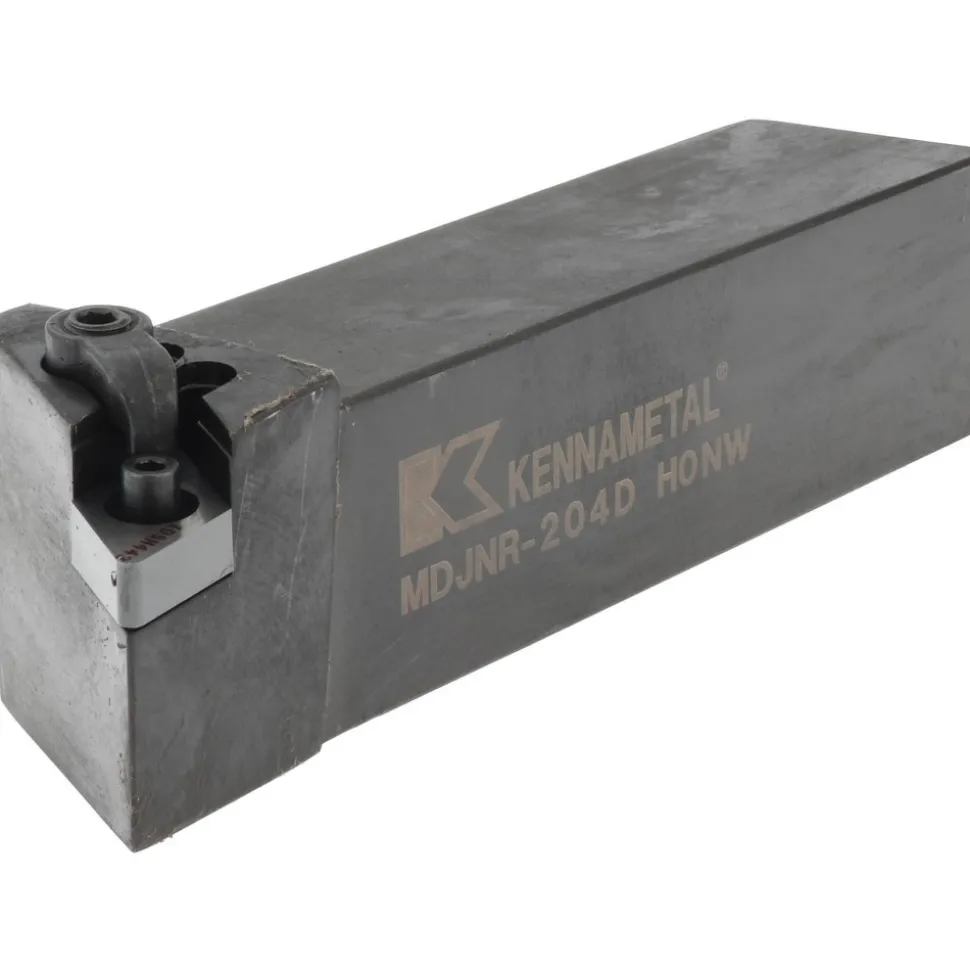

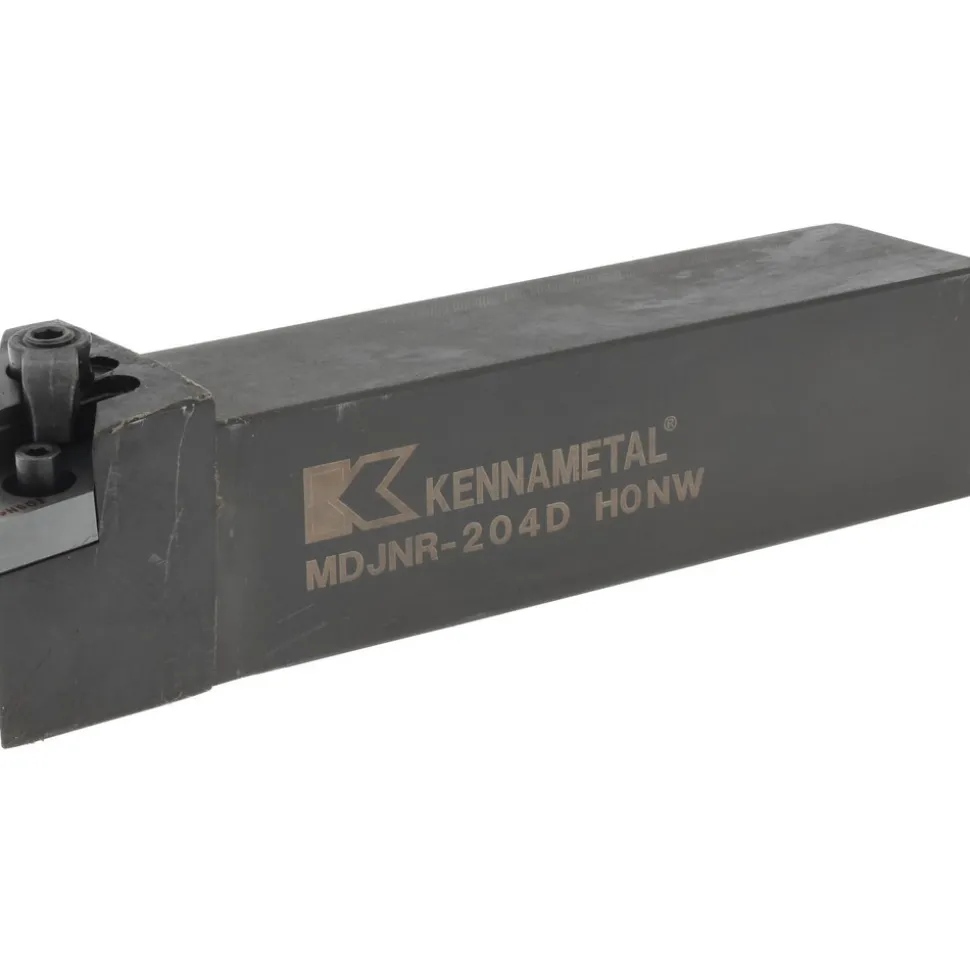

Indexable Turning Toolholder: MDJNR & L204D, Clamp & Screw
Original price was: 231,00 $.130,89 $Current price is: 130,89 $.
Specifications
| Toolholder Style: MDJN | Hand of Holder: Right Hand |
| Insert Compatibility: DN..43. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 1-1/4 | Shank Height (Inch): 1-1/4 |
| Overall Length (Decimal Inch): 6.0000 | Shank Height (mm): 31.75 |
| Coolant Through: No | Rake: Negative |
| Multi-use Tool: No | Shank Width (Decimal Inch): 1.2500 |
| Shank Height (Decimal Inch): 1.2500 | Series: Kenloc |
| Overall Length (Inch): 6 | Head Length (Decimal Inch): 1.2400 |
| Head Length (mm): 31.50 | Back of Bar to Cutting Edge (Decimal Inch): 1.5000 |
| Back of Bar to Cutting Edge (mm): 38.10 | Insert Inscribed Circle (Decimal Inch): 0.5000 |
| Insert Inscribed Circle (Inch): 1/2 | Toolholder Material: Steel |
| Complete Insert Compatibility: DN.. 432 | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: MDJNR; L204D | Country of Origin: UNITED STATES |
| Toolholder Style: MDJN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: DN..43. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 1-1/4 | |
| Shank Height (Inch): 1-1/4 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Shank Height (mm): 31.75 | |
| Coolant Through: No | |
| Rake: Negative | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 1.2500 | |
| Shank Height (Decimal Inch): 1.2500 | |
| Series: Kenloc | |
| Overall Length (Inch): 6 | |
| Head Length (Decimal Inch): 1.2400 | |
| Head Length (mm): 31.50 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.5000 | |
| Back of Bar to Cutting Edge (mm): 38.10 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: DN.. 432 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MDJNR; L204D | |
| Country of Origin: UNITED STATES |
| MSC# | 64922149 |
| Mfr# | 1016454 |
| Big Book# | 832 |
