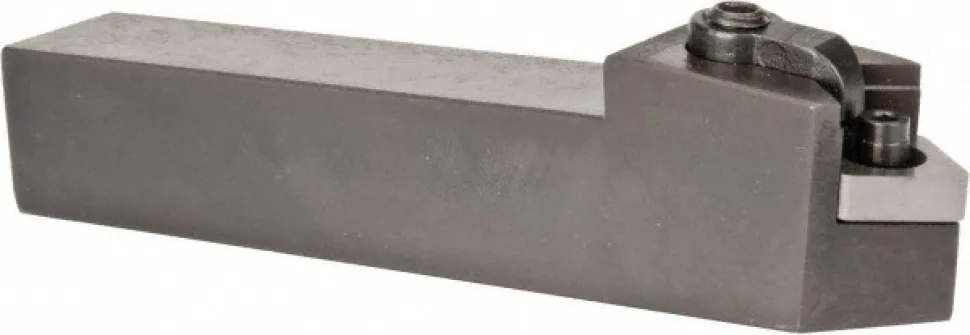

Indexable Turning Toolholder: MCMNN124B, Clamp & Screw
Original price was: 137,00 $.95,89 $Current price is: 95,89 $.
Specifications
| Toolholder Style: MCMN | Hand of Holder: Neutral |
| Insert Compatibility: CN..43. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Shank Height (mm): 19.05 |
| Coolant Through: No | Rake: Negative |
| Multi-use Tool: No | Shank Width (Decimal Inch): 0.7500 |
| Shank Height (Decimal Inch): 0.7500 | Series: Kenloc |
| Overall Length (Inch): 4-1/2 | Head Length (Decimal Inch): 1.3900 |
| Back of Bar to Cutting Edge (Inch): 3/8 | Back of Bar to Cutting Edge (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | Insert Inscribed Circle (Inch): 1/2 |
| Toolholder Material: Steel | Complete Insert Compatibility: CN.. 432 |
| Coating Classification: Kennametal | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: MCMNN124B | Country of Origin: UNITED STATES |
| Toolholder Style: MCMN | |
| Hand of Holder: Neutral | |
| Insert Compatibility: CN..43. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Height (mm): 19.05 | |
| Coolant Through: No | |
| Rake: Negative | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: Kenloc | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 1.3900 | |
| Back of Bar to Cutting Edge (Inch): 3/8 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: CN.. 432 | |
| Coating Classification: Kennametal | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MCMNN124B | |
| Country of Origin: UNITED STATES |
| MSC# | 06571699 |
| Mfr# | 1096142 |
| Big Book# | 834 |
