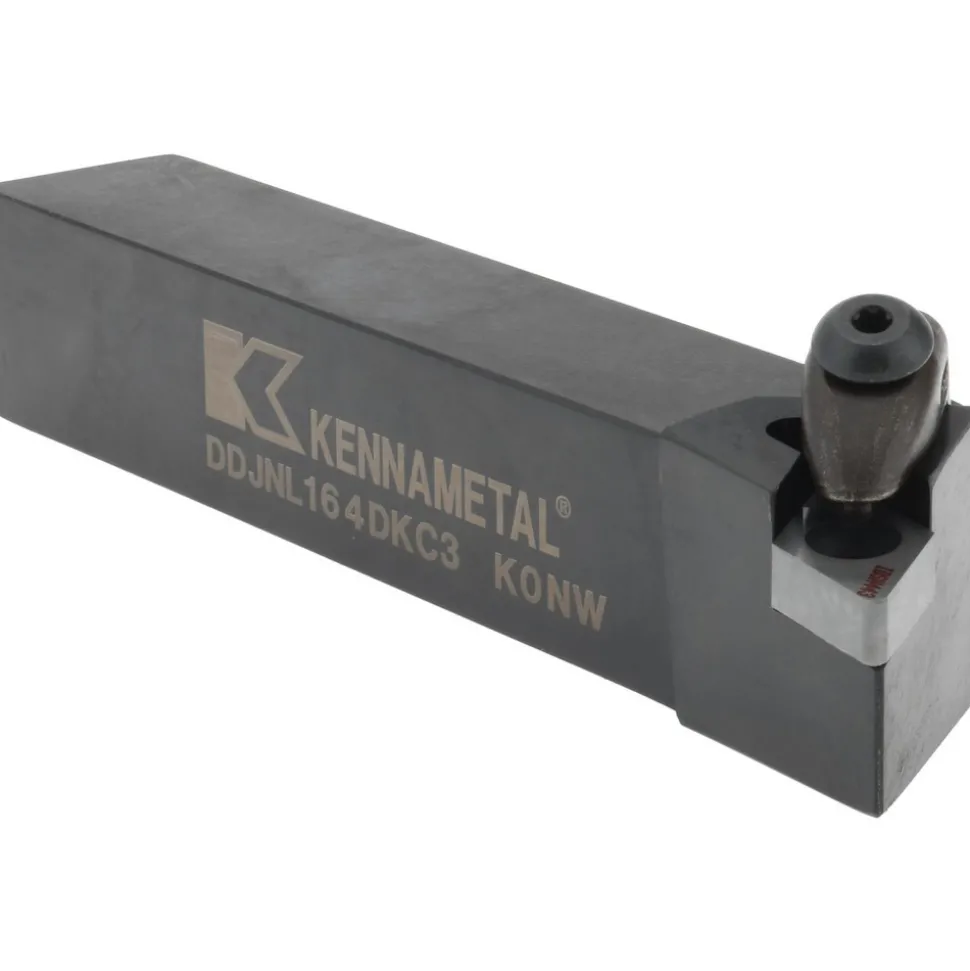

Indexable Turning Toolholder: Clamp

138,89 $

Specifications

Toolholder Style: DDJN	Hand of Holder: Left Hand
Insert Compatibility: DN..43.	Insert Holding Method: Clamp
Shank Width (Inch): 1	Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000	Shank Height (mm): 25.40
Coolant Through: No	Rake: Negative
Multi-use Tool: No	Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000	Series: Kenclamp
Overall Length (Inch): 6	Head Length (Decimal Inch): 1.2500
Head Length (mm): 31.75	Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Back of Bar to Cutting Edge (mm): 31.75	Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2	Toolholder Material: Steel
Complete Insert Compatibility: DN.. 432	UNSPSC Code: 23153308
Toolholder Style: DDJN
Hand of Holder: Left Hand
Insert Compatibility: DN..43.
Insert Holding Method: Clamp
Shank Width (Inch): 1
Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000
Shank Height (mm): 25.40
Coolant Through: No
Rake: Negative
Multi-use Tool: No
Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000
Series: Kenclamp
Overall Length (Inch): 6
Head Length (Decimal Inch): 1.2500
Head Length (mm): 31.75
Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Back of Bar to Cutting Edge (mm): 31.75
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2
Toolholder Material: Steel
Complete Insert Compatibility: DN.. 432
UNSPSC Code: 23153308
