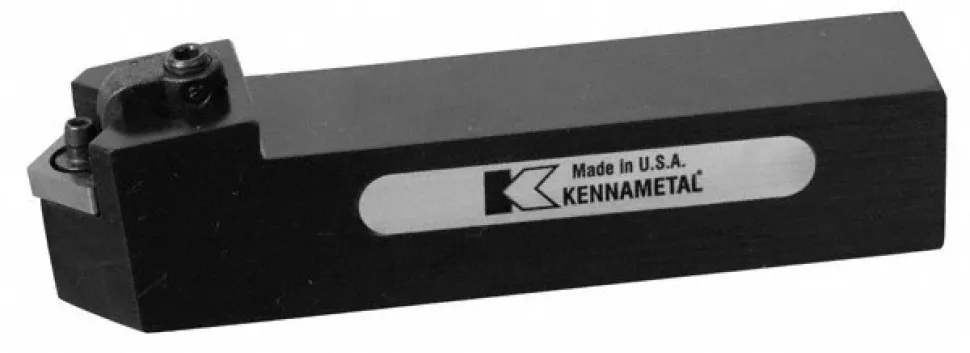

Indexable Turning Toolholder: Clamp & Screw

105,89 $

Specifications

Toolholder Style: MCHN	Hand of Holder: Neutral
Insert Compatibility: CN..43.	Insert Holding Method: Screw; Clamp
Shank Width (Inch): 1	Shank Height (Inch): 1
Overall Length (Decimal Inch): 5.0000	Shank Height (mm): 25.40
Coolant Through: No	Rake: Negative
Rake Angle: -7	Multi-use Tool: No
Shank Width (Decimal Inch): 1.0000	Shank Height (Decimal Inch): 1.0000
Series: Kenloc	Overall Length (Inch): 5
Head Length (Decimal Inch): 1.2500	Back of Bar to Cutting Edge (Decimal Inch): 0.5000
Insert Inscribed Circle (Decimal Inch): 0.5000	Insert Inscribed Circle (Inch): 1/2
Toolholder Material: Steel	Complete Insert Compatibility: CN.. 432
Coating Classification: Kennametal	UNSPSC Code: 23153308
Country of Origin: Bulgaria
Toolholder Style: MCHN
Hand of Holder: Neutral
Insert Compatibility: CN..43.
Insert Holding Method: Screw; Clamp
Shank Width (Inch): 1
Shank Height (Inch): 1
Overall Length (Decimal Inch): 5.0000
Shank Height (mm): 25.40
Coolant Through: No
Rake: Negative
Rake Angle: -7
Multi-use Tool: No
Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000
Series: Kenloc
Overall Length (Inch): 5
Head Length (Decimal Inch): 1.2500
Back of Bar to Cutting Edge (Decimal Inch): 0.5000
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2
Toolholder Material: Steel
Complete Insert Compatibility: CN.. 432
Coating Classification: Kennametal
UNSPSC Code: 23153308
Country of Origin: Bulgaria
