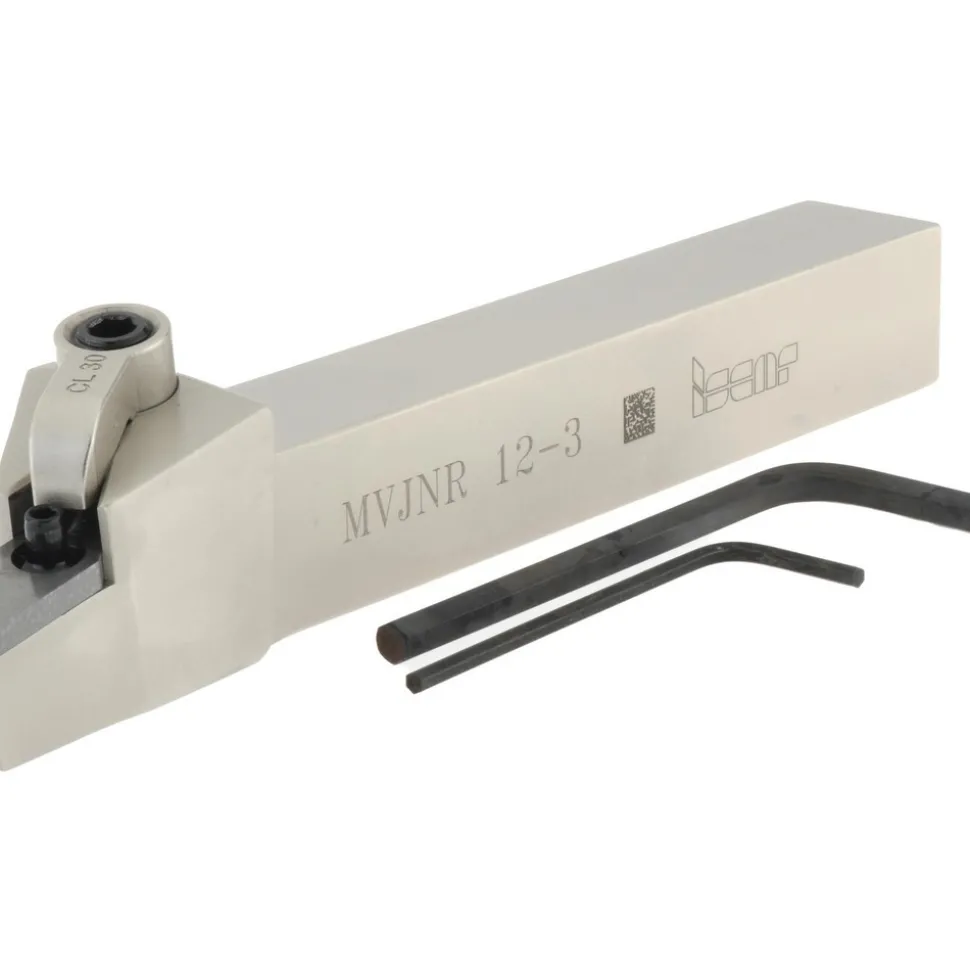

Indexable Turning Toolholder: Clamp & Pin

112,89 $

Specifications

Toolholder Style: MVJN	Hand of Holder: Right Hand
Insert Compatibility: VN..33..	Insert Holding Method: Pin; Clamp
Shank Width (Inch): 3/4	Overall Length (Decimal Inch): 6.0000
Coolant Through: No	Rake: Negative
Cutting Direction: Right Hand	Compatible Insert Size Code: VNMG331-F3M
Rake Angle: -10.5;-5.5	Multi-use Tool: No
Shank Width (Decimal Inch): 0.7500	Shank Height (Decimal Inch): 0.7500
Series: Isoturn	Cutting Tool Application: Turning
Head Length (Decimal Inch): 1.6900	Back of Bar to Cutting Edge (Decimal Inch): 1.0000
Standards: ISO 13399	UNSPSC Code: 23153308
Country of Origin: Israel
Toolholder Style: MVJN
Hand of Holder: Right Hand
Insert Compatibility: VN..33..
Insert Holding Method: Pin; Clamp
Shank Width (Inch): 3/4
Overall Length (Decimal Inch): 6.0000
Coolant Through: No
Rake: Negative
Cutting Direction: Right Hand
Compatible Insert Size Code: VNMG331-F3M
Rake Angle: -10.5;-5.5
Multi-use Tool: No
Shank Width (Decimal Inch): 0.7500
Shank Height (Decimal Inch): 0.7500
Series: Isoturn
Cutting Tool Application: Turning
Head Length (Decimal Inch): 1.6900
Back of Bar to Cutting Edge (Decimal Inch): 1.0000
Standards: ISO 13399
UNSPSC Code: 23153308
Country of Origin: Israel
