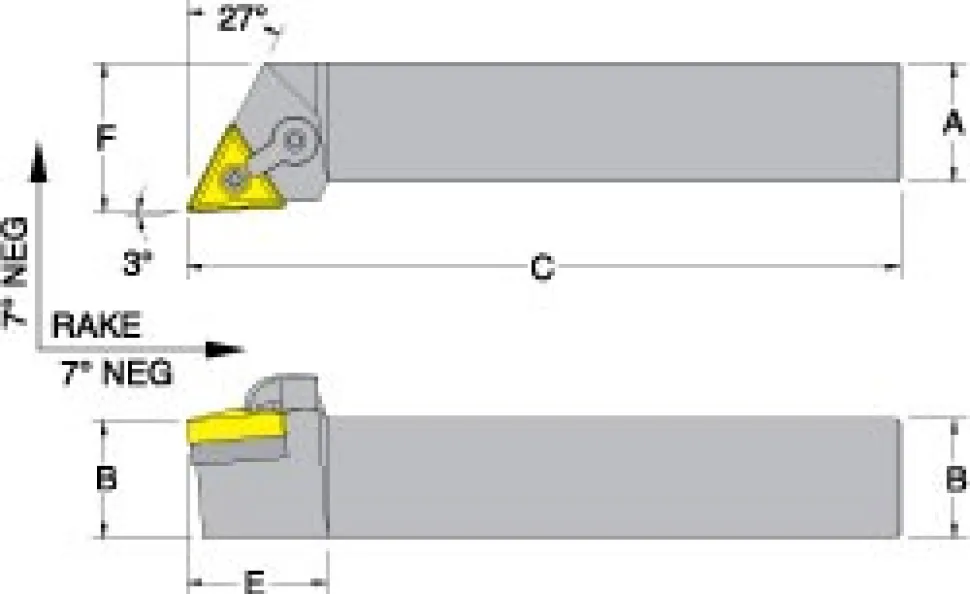

Indexable Turning Toolholder: Clamp & Pin

69,99 $

SKU: SKU4wvU3Rs0lf Categories: Indexable Cutting Tools, Indexable Turning & Boring, Shop All Products Tag: Dorian Tool Brand: Dorian Tool

Description
Reviews (0)

Specifications

Toolholder Style: MTJN	Hand of Holder: Right Hand
Insert Compatibility: TNM 432	Insert Holding Method: Pin; Clamp
Shank Width (Inch): 1	Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000	Coolant Through: No
Rake: Negative	Cutting Direction: Right Hand
Compatible Insert Size Code: TNM_432	Rake Angle: -7
Multi-use Tool: No	Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000	Series: Multi-Option
Overall Length (Inch): 6	Cutting Tool Application: Turning
Head Length (Decimal Inch): 1.2500	Back of Bar to Cutting Edge (Inch): 1-1/4
Back of Bar to Cutting Edge (Decimal Inch): 1.2500	Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2	Toolholder Material: Steel
UNSPSC Code: 23153308	Country of Origin: UNITED STATES
Toolholder Style: MTJN
Hand of Holder: Right Hand
Insert Compatibility: TNM 432
Insert Holding Method: Pin; Clamp
Shank Width (Inch): 1
Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000
Coolant Through: No
Rake: Negative
Cutting Direction: Right Hand
Compatible Insert Size Code: TNM_432
Rake Angle: -7
Multi-use Tool: No
Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000
Series: Multi-Option
Overall Length (Inch): 6
Cutting Tool Application: Turning
Head Length (Decimal Inch): 1.2500
Back of Bar to Cutting Edge (Inch): 1-1/4
Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2
Toolholder Material: Steel
UNSPSC Code: 23153308
Country of Origin: UNITED STATES
