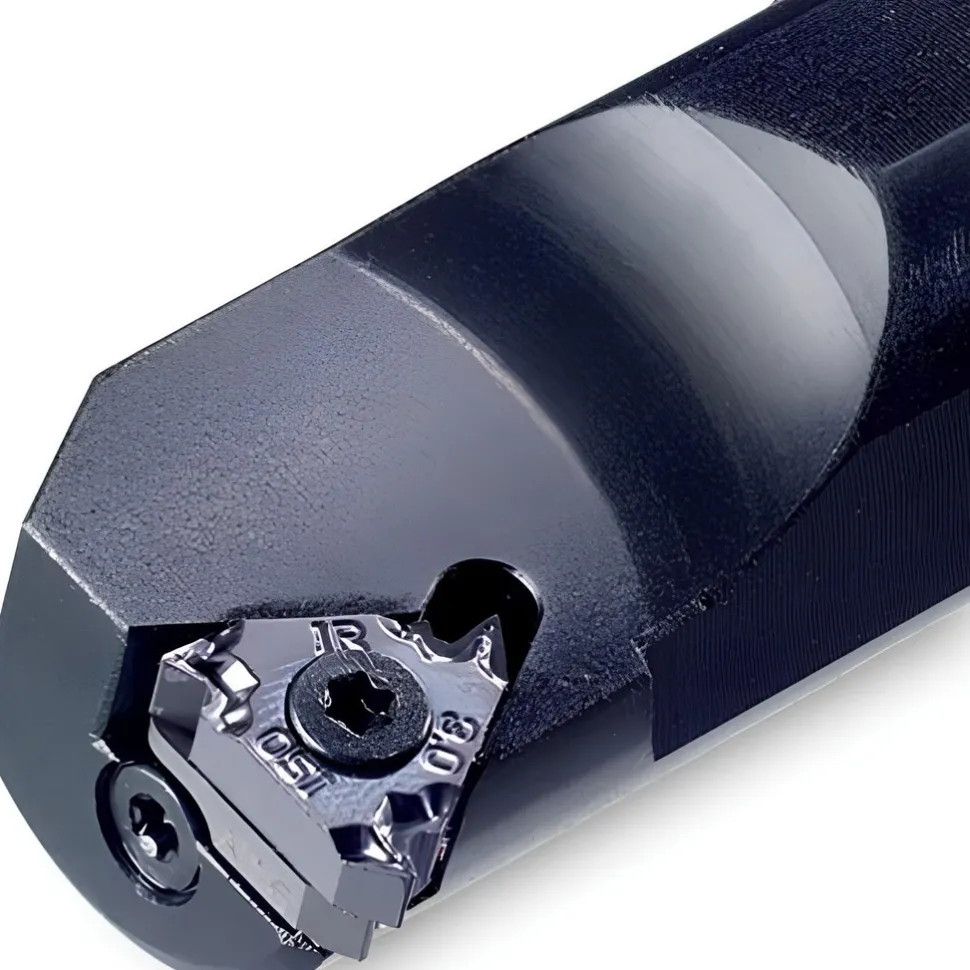

Indexable Threading Toolholder: Internal, Right Hand, Uses 11 Inserts, 3/8″ Shank

97,99 $

SKU: SKUXNcHYvYItO Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Ingersoll Cutting Tools Brand: Ingersoll Cutting Tools

Description
Reviews (0)

Specifications

Thread Type: Internal	Hand of Holder: Right Hand
Compatible Insert Size Code: 11	Shank Width/Diameter (Inch): 3/8
Toolholder Style: SIR	Insert Compatibility: 11IR
Coolant Entry Style Code: 0-Without Coolant	Insert Holding Method: Screw
Shank Length (Inch): 4	Overall Length (Inch): 4
Minimum Bore Diameter (Decimal Inch): 0.4700	Multi-use Tool: Yes
Cutting Tool Application: Threading	Back of Bar to Cutting Edge (Decimal Inch): 0.4775
Center to Cutting Edge (Decimal Inch): 0.2900	Insert Inscribed Circle (Inch): 1/4
Primary Workpiece Material Code: P; S; H; K; M; N; O	UNSPSC Code: 23291800
Toolholder Material: Steel	Style: SIR
D -In–: 0.3750	Coolant Through: No
Series: SIR
Thread Type: Internal
Hand of Holder: Right Hand
Compatible Insert Size Code: 11
Shank Width/Diameter (Inch): 3/8
Toolholder Style: SIR
Insert Compatibility: 11IR
Coolant Entry Style Code: 0-Without Coolant
Insert Holding Method: Screw
Shank Length (Inch): 4
Overall Length (Inch): 4
Minimum Bore Diameter (Decimal Inch): 0.4700
Multi-use Tool: Yes
Cutting Tool Application: Threading
Back of Bar to Cutting Edge (Decimal Inch): 0.4775
Center to Cutting Edge (Decimal Inch): 0.2900
Insert Inscribed Circle (Inch): 1/4
Primary Workpiece Material Code: P; S; H; K; M; N; O
UNSPSC Code: 23291800
Toolholder Material: Steel
Style: SIR
D -In–: 0.3750
Coolant Through: No
Series: SIR
