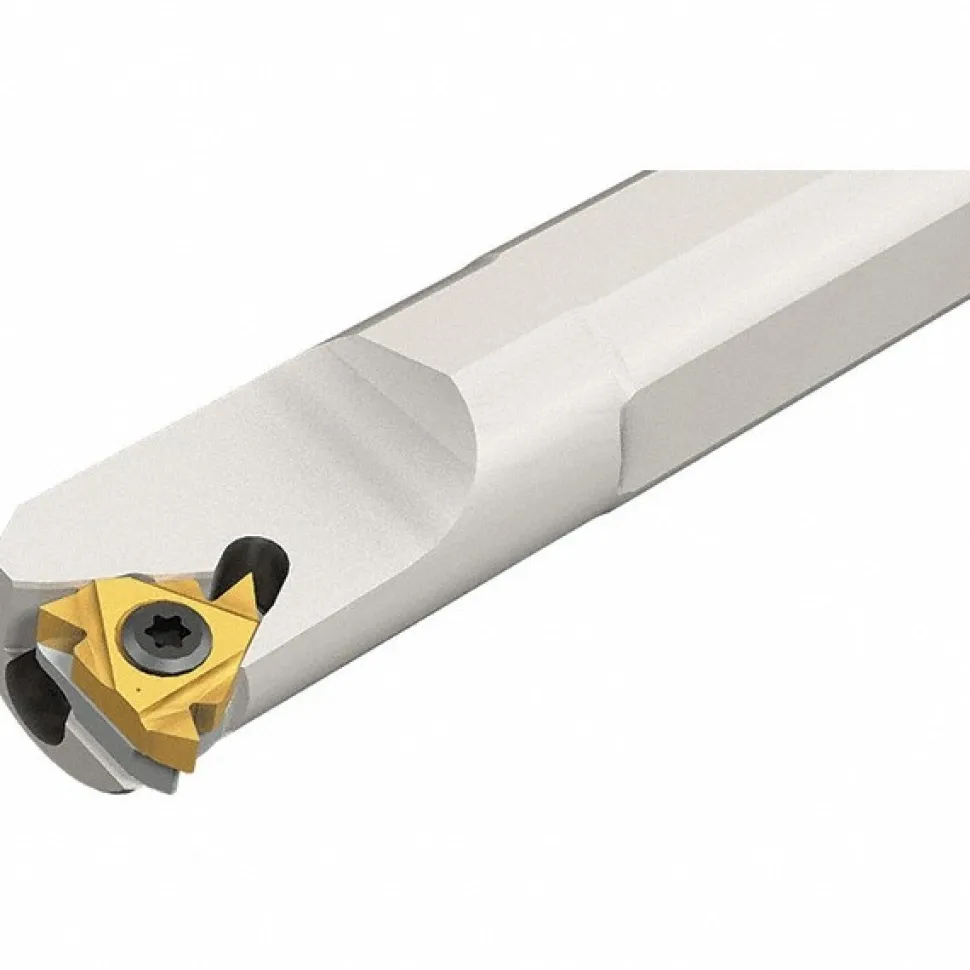

Indexable Threading Toolholder: Internal, Right Hand, 3/4 x 3/4" Shank

Indexable Threading Toolholder: Internal, Right Hand, 3/4 x 3/4″ Shank

134,99 $

SKU: SKU3wJVpx9Ios Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Thread Type: Internal	Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.7500	Toolholder Style: SI
Insert Compatibility: GTMA; IR/L to API RD; GTGA; IR/L to UNJ; IR/L to NPT; IR to MJ; IR/L to ABUT; IR/L to RND; IR/L to 55; IR/L to SAGE; IR/L to STACME; IR/L to ISO; IR/L to TR; IR/L to BSPT; IR/L to UN; IR/L to 60; IR/L to PG; IR/L to W; IR/L to ACME; IR/L to NPTF	Insert Holding Method: Screw
Shank Height (Decimal Inch): 0.7500	Shank Length (Inch): 6-1/4
Shank Length (Decimal Inch): 6.2500	Overall Length (Decimal Inch): 7.0000
Minimum Bore Diameter (Decimal Inch): 0.9000	Multi-use Tool: No
Cutting Tool Application: Threading	Center to Cutting Edge (Decimal Inch): 0.9000
Insert Inscribed Circle (Decimal Inch): 0.3750	UNSPSC Code: 23291800
Insert Thickness (Decimal Inch): 0.1370	Coolant Through: Yes
Series: SIR	Country of Origin: Israel
Thread Type: Internal
Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.7500
Toolholder Style: SI
Insert Compatibility: GTMA; IR/L to API RD; GTGA; IR/L to UNJ; IR/L to NPT; IR to MJ; IR/L to ABUT; IR/L to RND; IR/L to 55; IR/L to SAGE; IR/L to STACME; IR/L to ISO; IR/L to TR; IR/L to BSPT; IR/L to UN; IR/L to 60; IR/L to PG; IR/L to W; IR/L to ACME; IR/L to NPTF
Insert Holding Method: Screw
Shank Height (Decimal Inch): 0.7500
Shank Length (Inch): 6-1/4
Shank Length (Decimal Inch): 6.2500
Overall Length (Decimal Inch): 7.0000
Minimum Bore Diameter (Decimal Inch): 0.9000
Multi-use Tool: No
Cutting Tool Application: Threading
Center to Cutting Edge (Decimal Inch): 0.9000
Insert Inscribed Circle (Decimal Inch): 0.3750
UNSPSC Code: 23291800
Insert Thickness (Decimal Inch): 0.1370
Coolant Through: Yes
Series: SIR
Country of Origin: Israel
