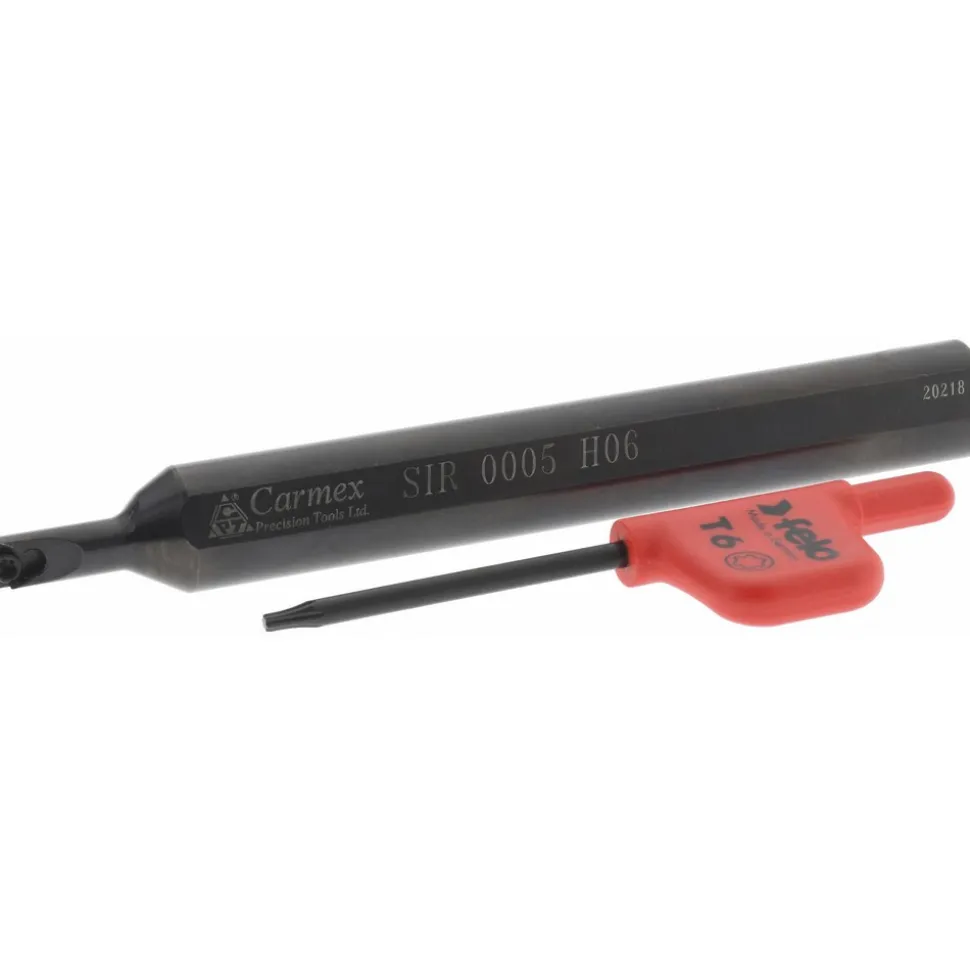

Indexable Threading Toolholder: Internal, Right Hand, 12 x 12 mm Shank
125,89 $
Specifications
| Thread Type: Internal | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.4724 | Shank Width/Diameter (mm): 12.00 |
| Toolholder Style: SI | Insert Compatibility: 06IR |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Screw |
| Shank Height (mm): 12.00 | Shank Height (Decimal Inch): 0.4724 |
| Overall Length (mm): 101.60 | Overall Length (Decimal Inch): 4.0000 |
| Multi-use Tool: No | Cutting Tool Application: Threading |
| Head Length (Decimal Inch): 12.0000 | Maximum Depth of Cut (Decimal Inch): 0.5000 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.2400 | Center to Cutting Edge (mm): 4.30 |
| Insert Inscribed Circle (Inch): 5/32 | UNSPSC Code: 23291800 |
| Toolholder Material: Steel | Style: SIR/L 0005 H06 |
| Coolant Through: No | Country of Origin: Israel |
| Thread Type: Internal | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.4724 | |
| Shank Width/Diameter (mm): 12.00 | |
| Toolholder Style: SI | |
| Insert Compatibility: 06IR | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (mm): 12.00 | |
| Shank Height (Decimal Inch): 0.4724 | |
| Overall Length (mm): 101.60 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 12.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.5000 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.2400 | |
| Center to Cutting Edge (mm): 4.30 | |
| Insert Inscribed Circle (Inch): 5/32 | |
| UNSPSC Code: 23291800 | |
| Toolholder Material: Steel | |
| Style: SIR/L 0005 H06 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 08716110 |
| Mfr# | SIR0005H06 |
| Big Book# | 948 |
