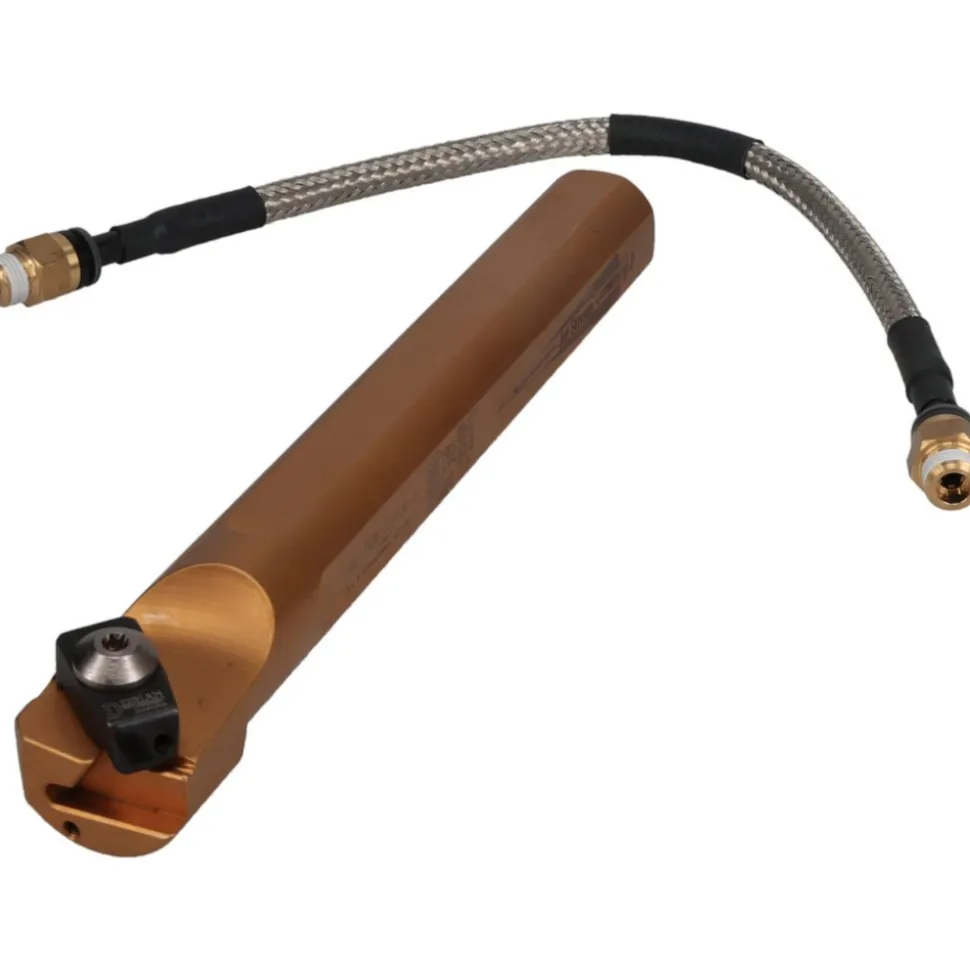

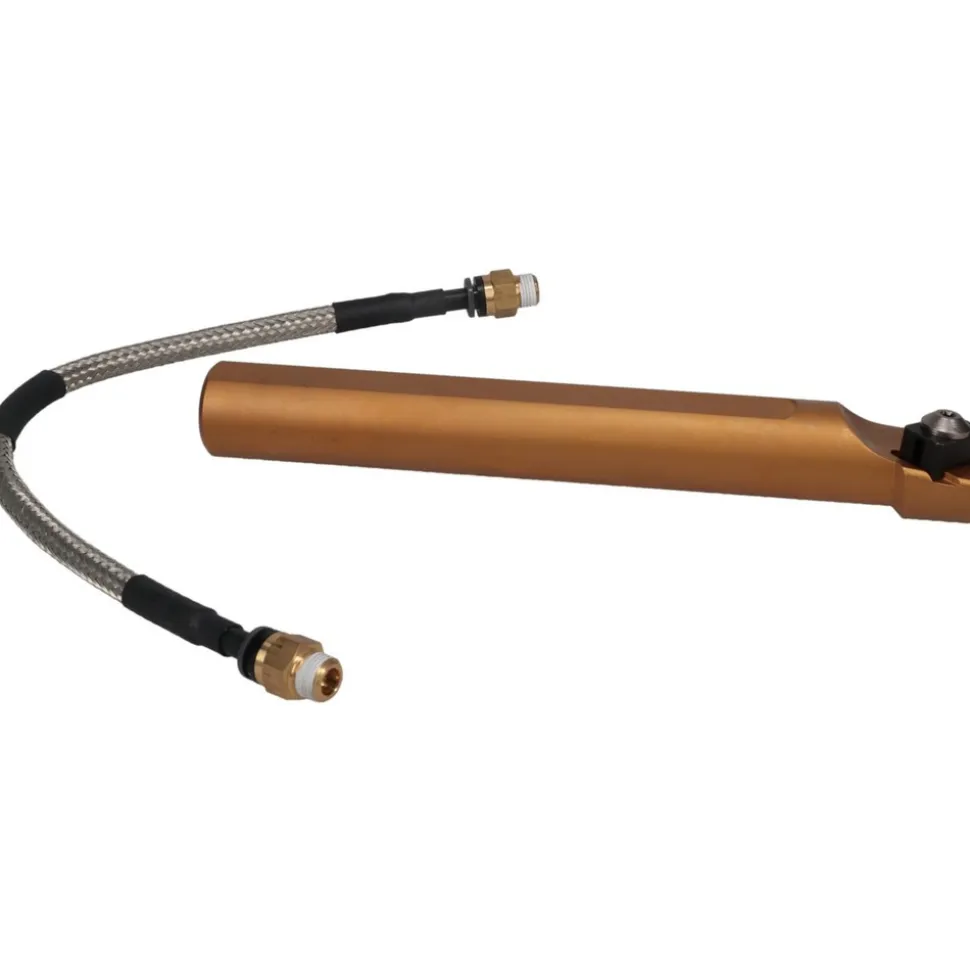

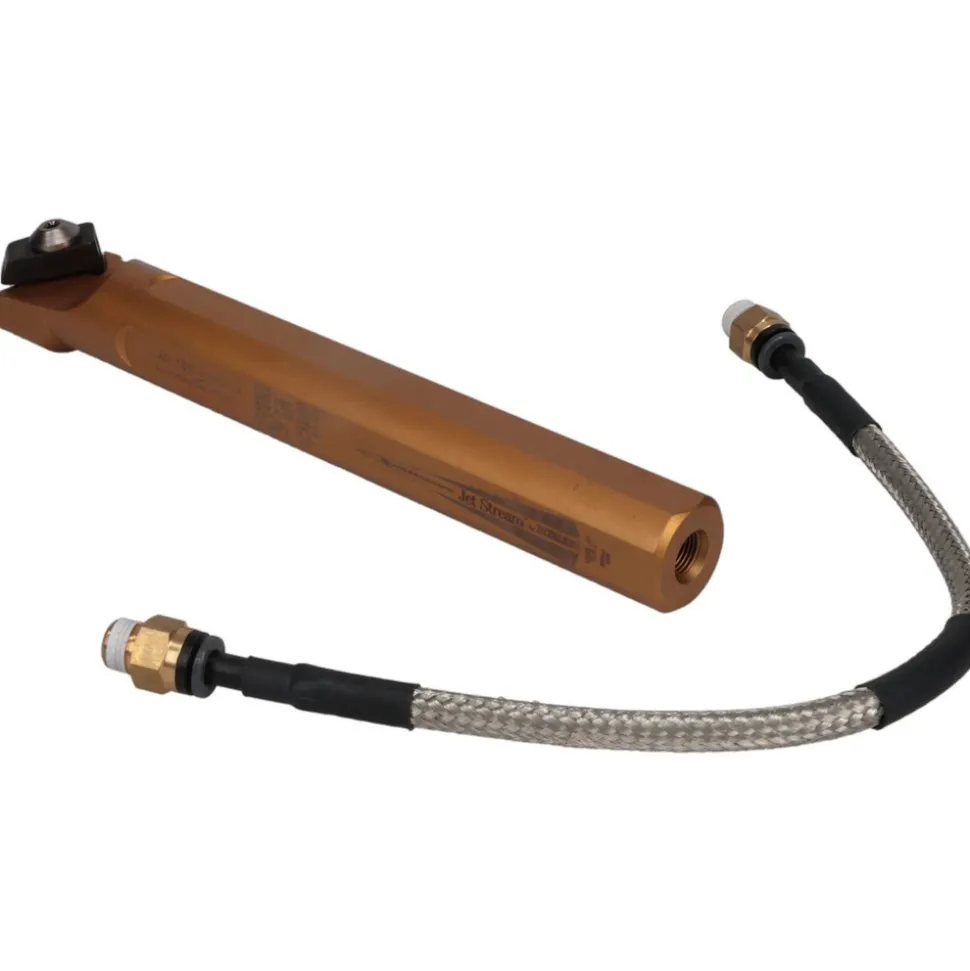

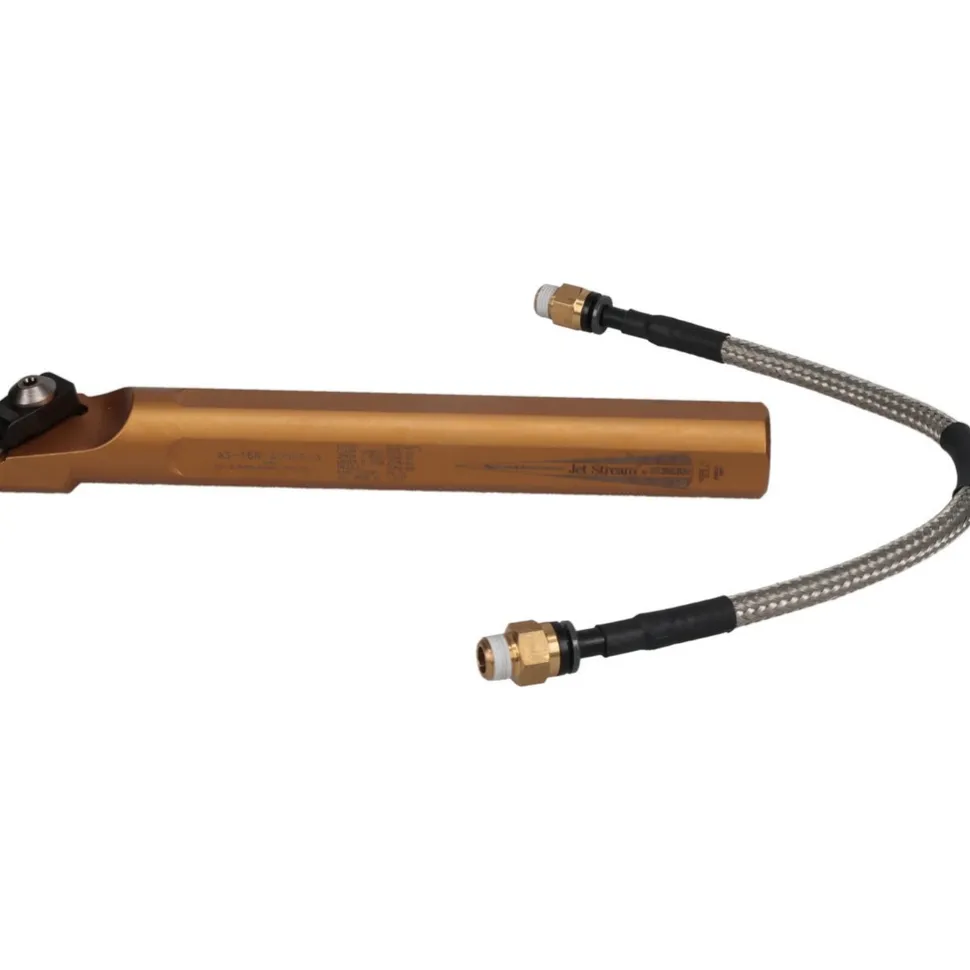

Indexable Threading Toolholder: Internal, Right Hand, 1 x 1" Shank

Indexable Threading Toolholder: Internal, Right Hand, 1 x 1″ Shank

128,89 $

SKU: SKUDQ67ZCVPlZ Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Dorian Tool Brand: Dorian Tool

Description
Reviews (0)

Specifications

Thread Type: Internal	Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 1.0000	Shank Width/Diameter (mm): 25.40
Shank Width/Diameter (Inch): 1	Toolholder Style: AS-ADNE
Insert Compatibility: NG-3L	Insert Holding Method: Clamp
Shank Height (mm): 25.00	Shank Height (Decimal Inch): 1.0000
Shank Height (Inch): 1	Overall Length (mm): 203.20
Overall Length (Inch): 8	Overall Length (Decimal Inch): 8.0000
Minimum Bore Diameter (Decimal Inch): 1.3800	Multi-use Tool: Yes
Center to Cutting Edge (Decimal Inch): 0.6900	Insert Inscribed Circle (Decimal Inch): 0.3750
Insert Inscribed Circle (Inch): 3/8	Coolant Hole Thread Size (Inch): 1/8 NPT
UNSPSC Code: 23291800	Coolant Through: Yes
Series: DorNotch Jet-Stream	Country of Origin: UNITED STATES
Thread Type: Internal
Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 1.0000
Shank Width/Diameter (mm): 25.40
Shank Width/Diameter (Inch): 1
Toolholder Style: AS-ADNE
Insert Compatibility: NG-3L
Insert Holding Method: Clamp
Shank Height (mm): 25.00
Shank Height (Decimal Inch): 1.0000
Shank Height (Inch): 1
Overall Length (mm): 203.20
Overall Length (Inch): 8
Overall Length (Decimal Inch): 8.0000
Minimum Bore Diameter (Decimal Inch): 1.3800
Multi-use Tool: Yes
Center to Cutting Edge (Decimal Inch): 0.6900
Insert Inscribed Circle (Decimal Inch): 0.3750
Insert Inscribed Circle (Inch): 3/8
Coolant Hole Thread Size (Inch): 1/8 NPT
UNSPSC Code: 23291800
Coolant Through: Yes
Series: DorNotch Jet-Stream
Country of Origin: UNITED STATES
