Sale!

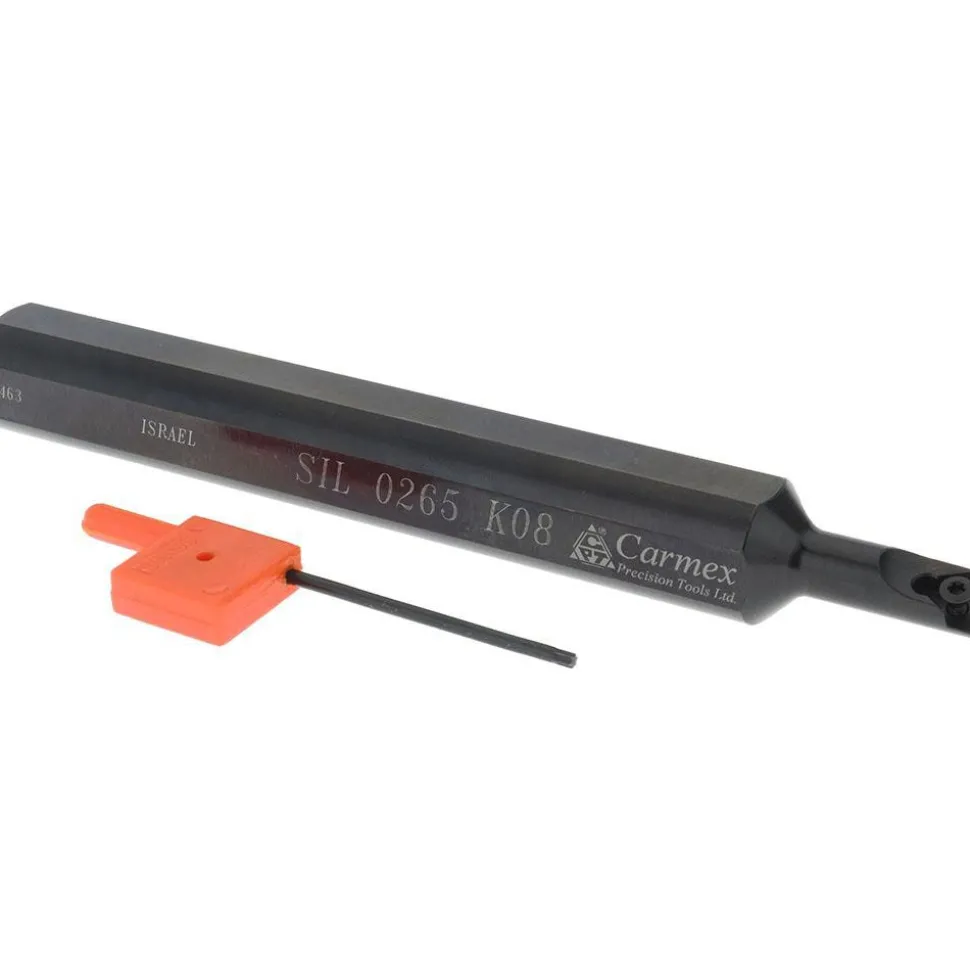

Indexable Threading Toolholder: Internal, Left Hand, 5/8 x 5/8″ Shank
Original price was: 189,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Thread Type: Internal | Hand of Holder: Left Hand |
| Shank Width/Diameter (Decimal Inch): 0.6250 | Shank Width/Diameter (Inch): 5/8 |
| Toolholder Style: SI | Insert Compatibility: 08IL |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Screw |
| Shank Height (Decimal Inch): 0.6250 | Shank Height (Inch): 5/8 |
| Overall Length (Inch): 5 | Overall Length (Decimal Inch): 5.0000 |
| Multi-use Tool: No | Cutting Tool Application: Threading |
| Head Length (Decimal Inch): 0.7000 | Maximum Depth of Cut (Decimal Inch): 0.7100 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.3070 | Center to Cutting Edge (Decimal Inch): 0.2100 |
| Insert Inscribed Circle (Inch): 3/16 | Neck Diameter (Decimal Inch): 0.2600 |
| UNSPSC Code: 23291800 | Coolant Through: No |
| Series: SIL | Country of Origin: Israel |
| Thread Type: Internal | |
| Hand of Holder: Left Hand | |
| Shank Width/Diameter (Decimal Inch): 0.6250 | |
| Shank Width/Diameter (Inch): 5/8 | |
| Toolholder Style: SI | |
| Insert Compatibility: 08IL | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 0.6250 | |
| Shank Height (Inch): 5/8 | |
| Overall Length (Inch): 5 | |
| Overall Length (Decimal Inch): 5.0000 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 0.7000 | |
| Maximum Depth of Cut (Decimal Inch): 0.7100 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.3070 | |
| Center to Cutting Edge (Decimal Inch): 0.2100 | |
| Insert Inscribed Circle (Inch): 3/16 | |
| Neck Diameter (Decimal Inch): 0.2600 | |
| UNSPSC Code: 23291800 | |
| Coolant Through: No | |
| Series: SIL | |
| Country of Origin: Israel |
| MSC# | 08716052 |
| Mfr# | SIL0265K08 |
| Big Book# | 948 |
