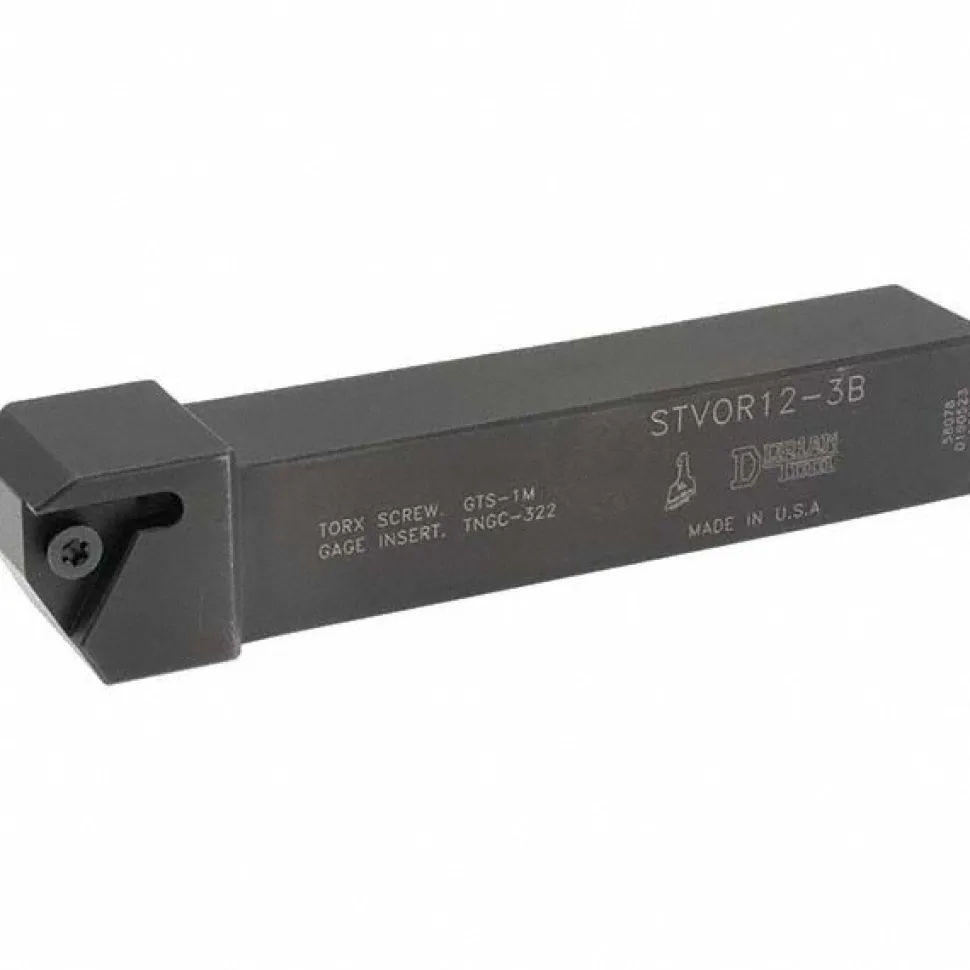

Indexable Threading Toolholder: External, Right Hand, Uses 332 Inserts, 3/4 x 3/4″ Shank
71,99 $
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: 332 |
| Shank Width/Diameter (mm): 19.05 | Shank Width/Diameter (Inch): 3/4 |
| Toolholder Style: STVO | Insert Compatibility: TNMC to 322 |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Screw |
| Shank Height (Decimal Inch): 0.7500 | Shank Height (Inch): 3/4 |
| Shank Length (Inch): 4-1/2 | Shank Length (Decimal Inch): 3.5000 |
| Overall Length (mm): 114.30 | Overall Length (Inch): 4-1/2 |
| Overall Length (Decimal Inch): 4.5000 | Multi-use Tool: Yes |
| Cutting Tool Application: Threading | Head Length (Decimal Inch): 1.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.1500 | Back of Bar to Cutting Edge (Decimal Inch): 0.8750 |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | Insert Inscribed Circle (Inch): 3/8 |
| UNSPSC Code: 23291800 | Coolant Through: No |
| Series: On Edge Jet-Stream | Country of Origin: UNITED STATES |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: 332 | |
| Shank Width/Diameter (mm): 19.05 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Toolholder Style: STVO | |
| Insert Compatibility: TNMC to 322 | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Height (Inch): 3/4 | |
| Shank Length (Inch): 4-1/2 | |
| Shank Length (Decimal Inch): 3.5000 | |
| Overall Length (mm): 114.30 | |
| Overall Length (Inch): 4-1/2 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 1.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.1500 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.8750 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| UNSPSC Code: 23291800 | |
| Coolant Through: No | |
| Series: On Edge Jet-Stream | |
| Country of Origin: UNITED STATES |
| MSC# | 47153192 |
| Mfr# | 73310158078 |
