Sale!

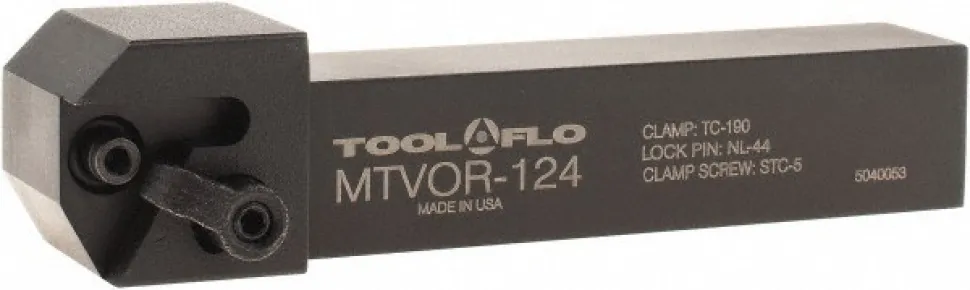

Indexable Threading Toolholder: External, Right Hand, 3/4 x 3/4″ Shank

Original price was: 128,00 $.Current price is: 84,89 $.

SKU: SKU8dOALzSEQo Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Tool-Flo Brand: Tool-Flo

Description
Reviews (0)

Specifications

Thread Type: External	Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.7500	Shank Width/Diameter (Inch): 3/4
Toolholder Style: MTVO	Insert Compatibility: T.MA/C 43
Coolant Entry Style Code: 0 – Without Coolant	Insert Holding Method: Clamp & Pin
Shank Height (Decimal Inch): 0.7500	Shank Height (Inch): 3/4
Overall Length (Inch): 4-1/2	Overall Length (Decimal Inch): 4.5000
Multi-use Tool: Yes	Cutting Tool Application: Grooving; Threading
Head Length (Decimal Inch): 1.2300	Maximum Depth of Cut (Decimal Inch): 0.2300
Back of Bar to Cutting Edge (Decimal Inch): 1.0000	Insert Inscribed Circle (Decimal Inch): 0.5000
UNSPSC Code: 23291800	Coolant Through: No
Series: On-Edge	Country of Origin: UNITED STATES
Thread Type: External
Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.7500
Shank Width/Diameter (Inch): 3/4
Toolholder Style: MTVO
Insert Compatibility: T.MA/C 43
Coolant Entry Style Code: 0 – Without Coolant
Insert Holding Method: Clamp & Pin
Shank Height (Decimal Inch): 0.7500
Shank Height (Inch): 3/4
Overall Length (Inch): 4-1/2
Overall Length (Decimal Inch): 4.5000
Multi-use Tool: Yes
Cutting Tool Application: Grooving; Threading
Head Length (Decimal Inch): 1.2300
Maximum Depth of Cut (Decimal Inch): 0.2300
Back of Bar to Cutting Edge (Decimal Inch): 1.0000
Insert Inscribed Circle (Decimal Inch): 0.5000
UNSPSC Code: 23291800
Coolant Through: No
Series: On-Edge
Country of Origin: UNITED STATES
