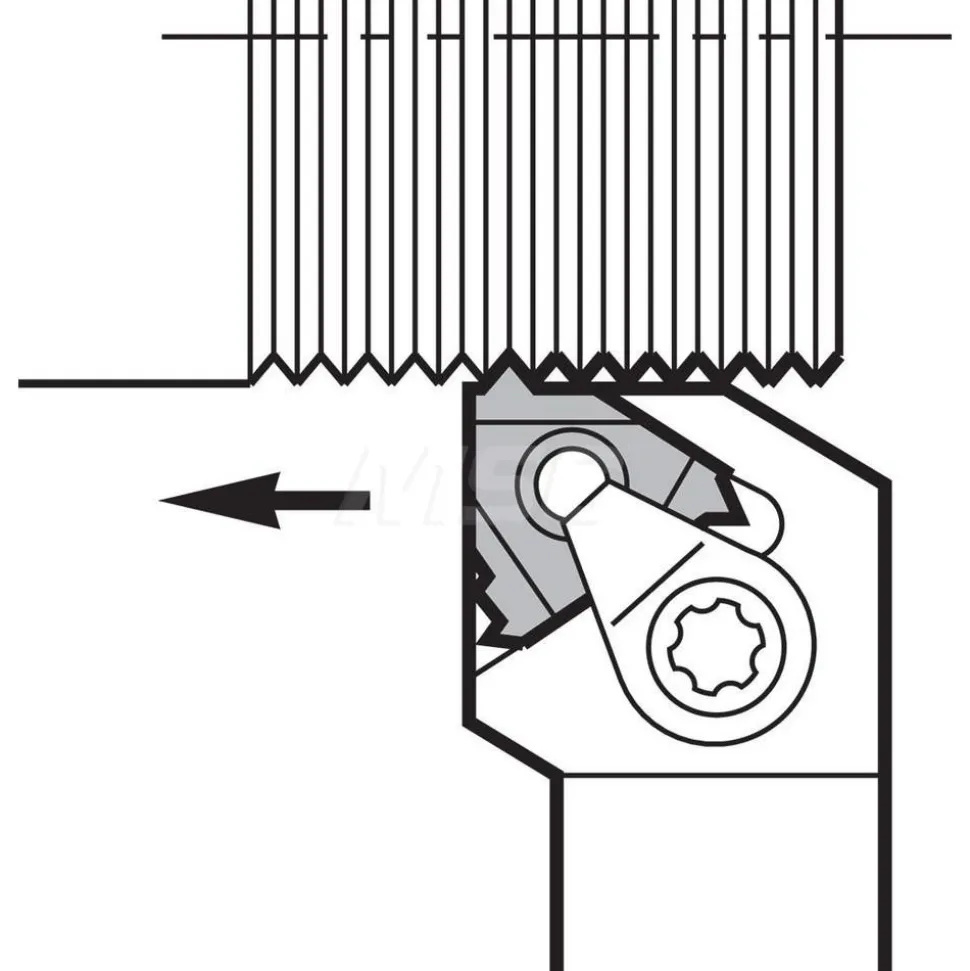

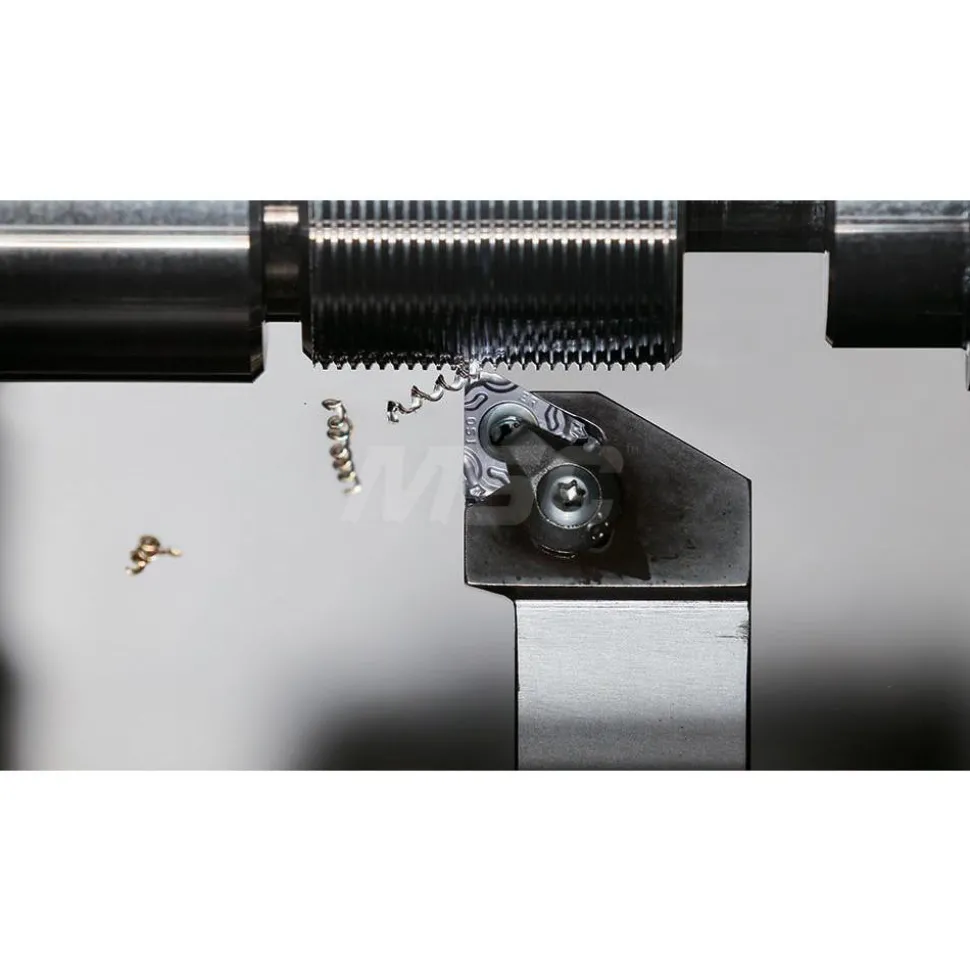

Indexable Threading Toolholder: External, Right Hand, 1 x 1″ Shank
Original price was: 293,00 $.132,89 $Current price is: 132,89 $.
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Toolholder Style: KTN |
| Insert Compatibility: 16ER/L 100ISO; 16ER/L 100ISO to TS; 16ER/L 11.5NPT; 16ER/L 11W; 16ER/L 11BSPT to TS; 16ER/L 11W to TS; 16ER/L 11BSPT; 16ER/L 100ISO to TF; 16ER/L 10UN to TF; 16ER/L 100ISO to M02; 16ER/L 050ISO; 16ER/L 11BSPT to TF; 16ER/L 11W to TF; 16ER/L 075ISO; 16ER/L 08UN to TF; 16ER/L 125ISO | Coolant Entry Style Code: 0 – Without Coolant |
| Insert Holding Method: Clamp | Shank Height (Decimal Inch): 1.0000 |
| Shank Length (Decimal Inch): 5.1300 | Overall Length (Decimal Inch): 6.0000 |
| Multi-use Tool: No | Cutting Tool Application: Threading |
| Head Length (Decimal Inch): 0.8700 | Back of Bar to Cutting Edge (Decimal Inch): 1.2500 |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | Insert Inscribed Circle (mm): 9.53 |
| UNSPSC Code: 23291800 | Toolholder Material: Steel |
| Coolant Through: No | Country of Origin: UNITED STATES |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Toolholder Style: KTN | |
| Insert Compatibility: 16ER/L 100ISO; 16ER/L 100ISO to TS; 16ER/L 11.5NPT; 16ER/L 11W; 16ER/L 11BSPT to TS; 16ER/L 11W to TS; 16ER/L 11BSPT; 16ER/L 100ISO to TF; 16ER/L 10UN to TF; 16ER/L 100ISO to M02; 16ER/L 050ISO; 16ER/L 11BSPT to TF; 16ER/L 11W to TF; 16ER/L 075ISO; 16ER/L 08UN to TF; 16ER/L 125ISO | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Clamp | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (Decimal Inch): 5.1300 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 0.8700 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (mm): 9.53 | |
| UNSPSC Code: 23291800 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Country of Origin: UNITED STATES |
| MSC# | 44932929 |
| Mfr# | THC89154 |
