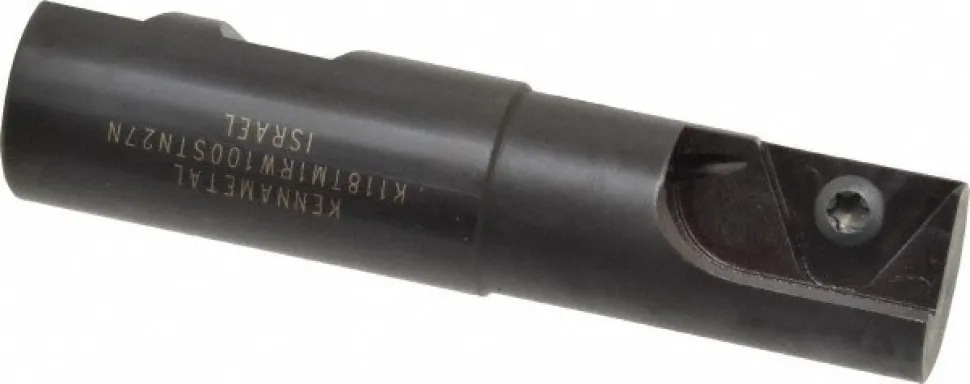

Indexable Thread Mill: 1.18″ Cut Dia, 2.03″ Max Hole Depth, Internal & External
134,89 $
Specifications
| Cutting Diameter (Decimal Inch): 1.1800 | Maximum Hole Depth (Decimal Inch): 2.0300 |
| Insert Style: STN27 | Insert Size (Decimal Inch): 1.0600 |
| Toolholder Style: K118 | Insert Holding Method: Screw |
| Number of Threading Inserts: 1 | Overall Length (Decimal Inch): 4.3800 |
| Thread Type: Internal; External | Neck Diameter (Decimal Inch): 0.9450 |
| Insert Inscribed Circle (Inch): 5/8 | Number Of Flutes: 1 |
| Coolant Through: Yes | UNSPSC Code: 23291800 |
| Country of Origin: Israel | |
| Cutting Diameter (Decimal Inch): 1.1800 | |
| Maximum Hole Depth (Decimal Inch): 2.0300 | |
| Insert Style: STN27 | |
| Insert Size (Decimal Inch): 1.0600 | |
| Toolholder Style: K118 | |
| Insert Holding Method: Screw | |
| Number of Threading Inserts: 1 | |
| Overall Length (Decimal Inch): 4.3800 | |
| Thread Type: Internal; External | |
| Neck Diameter (Decimal Inch): 0.9450 | |
| Insert Inscribed Circle (Inch): 5/8 | |
| Number Of Flutes: 1 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291800 | |
| Country of Origin: Israel |
| MSC# | 80748353 |
| Mfr# | 1280548 |
| Big Book# | 391 |
