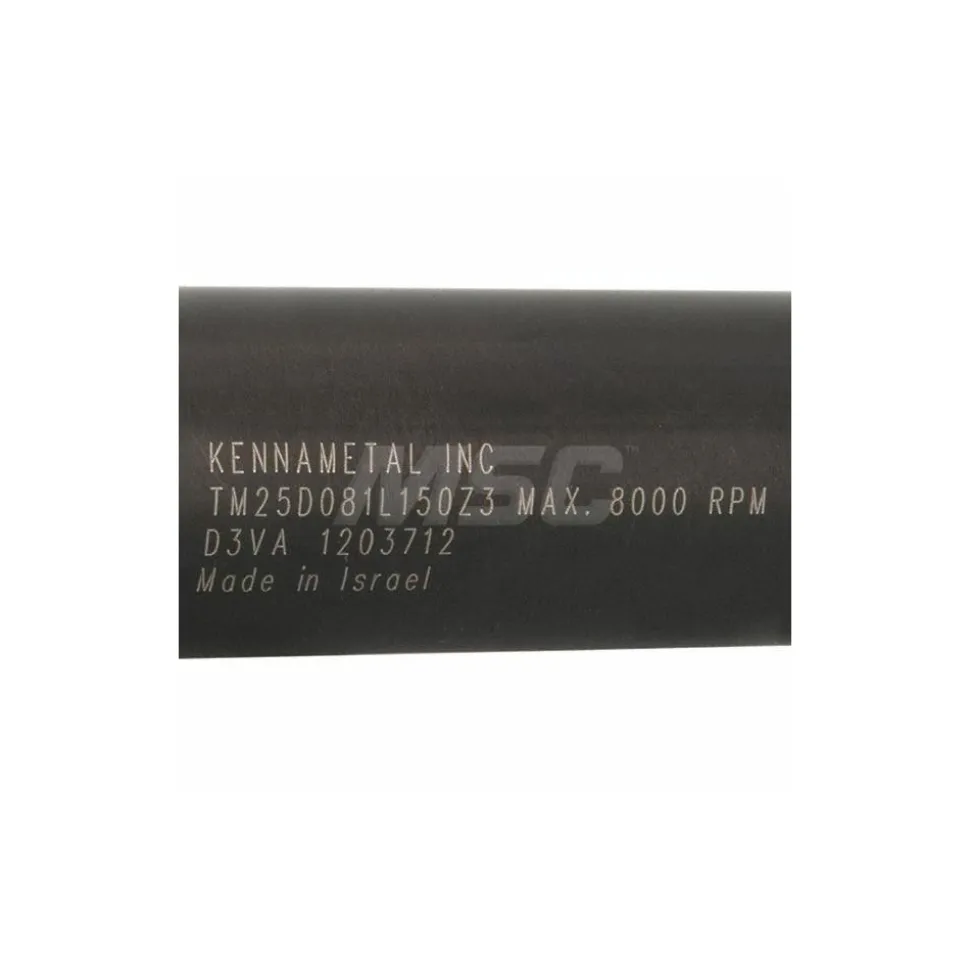

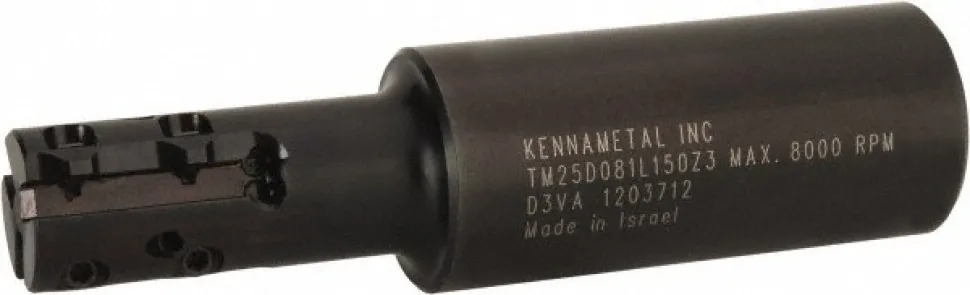

Indexable Thread Mill: 0.81" Cut Dia, 1.5" Max Hole Depth, Internal & External

Indexable Thread Mill: 0.81″ Cut Dia, 1.5″ Max Hole Depth, Internal & External

140,89 $

SKU: SKUtUyCSx52eT Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 0.8100	Maximum Hole Depth (Decimal Inch): 1.5000
Insert Style: TM25	Toolholder Style: TM
Shank Diameter (Inch): 1	Shank Diameter (Decimal Inch): 1.0000
Insert Holding Method: Screw	Number of Threading Inserts: 3
Overall Length (Decimal Inch): 3.9000	Thread Type: Internal; External
Neck Diameter (Decimal Inch): 0.6500	Number Of Flutes: 3
Coolant Through: Yes	UNSPSC Code: 23291800
Country of Origin: Israel
Cutting Diameter (Decimal Inch): 0.8100
Maximum Hole Depth (Decimal Inch): 1.5000
Insert Style: TM25
Toolholder Style: TM
Shank Diameter (Inch): 1
Shank Diameter (Decimal Inch): 1.0000
Insert Holding Method: Screw
Number of Threading Inserts: 3
Overall Length (Decimal Inch): 3.9000
Thread Type: Internal; External
Neck Diameter (Decimal Inch): 0.6500
Number Of Flutes: 3
Coolant Through: Yes
UNSPSC Code: 23291800
Country of Origin: Israel
