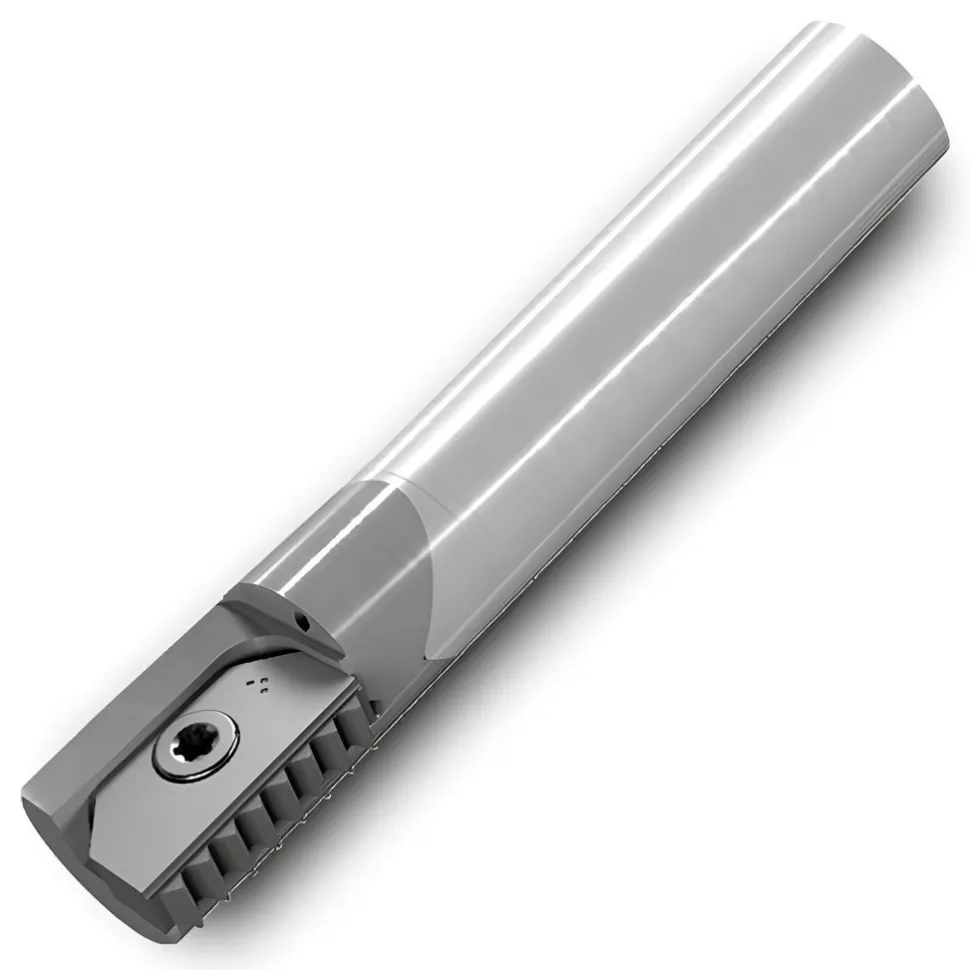

Indexable Thread Mill: 0.62″ Cut Dia, 0.551″ Max Hole Depth, Internal & External, Solid Carbide
120,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.6200 | Maximum Hole Depth (Decimal Inch): 0.5510 |
| Maximum Cutting Length (Decimal Inch): 0.5510 | Compatible Insert Style: LYEU |
| Compatible Insert Size Code: 14 | Toolholder Style: MTED-C |
| Shank Type: Cylindrical | Shank Diameter (Inch): 1/2 |
| Shank Diameter (Decimal Inch): 0.5000 | Insert Holding Method: Screw |
| Number of Threading Inserts: 1 | Overall Length (Decimal Inch): 7.0500 |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Cutting Direction: Right Hand |
| Toolholder Material: Solid Carbide | Thread Type: Internal; External |
| Series: MTED-C | Flute Type: Straight |
| Cutting Tool Application: Threading | Tool Application: Thread Milling |
| Tool Performance: General Purpose | Primary Workpiece Material: Universal |
| Number Of Flutes: 1 | Coolant Through: Yes |
| UNSPSC Code: 23291800 | |
| Cutting Diameter (Decimal Inch): 0.6200 | |
| Maximum Hole Depth (Decimal Inch): 0.5510 | |
| Maximum Cutting Length (Decimal Inch): 0.5510 | |
| Compatible Insert Style: LYEU | |
| Compatible Insert Size Code: 14 | |
| Toolholder Style: MTED-C | |
| Shank Type: Cylindrical | |
| Shank Diameter (Inch): 1/2 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Insert Holding Method: Screw | |
| Number of Threading Inserts: 1 | |
| Overall Length (Decimal Inch): 7.0500 | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Cutting Direction: Right Hand | |
| Toolholder Material: Solid Carbide | |
| Thread Type: Internal; External | |
| Series: MTED-C | |
| Flute Type: Straight | |
| Cutting Tool Application: Threading | |
| Tool Application: Thread Milling | |
| Tool Performance: General Purpose | |
| Primary Workpiece Material: Universal | |
| Number Of Flutes: 1 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291800 |
| MSC# | 90444001 |
| Mfr# | 2945171 |
