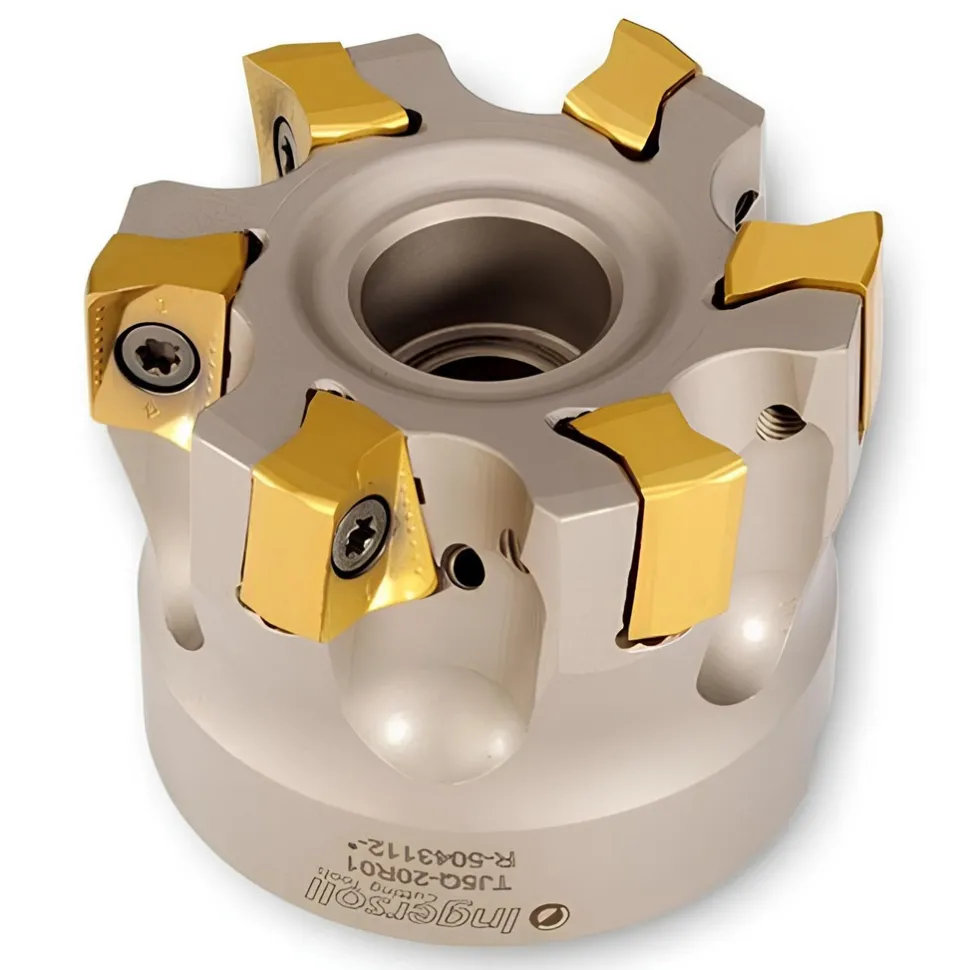

Indexable Square-Shoulder Face Mill: TJ5Q-30R01, 3” Cut Dia, 1.0000″ Arbor Hole Dia, 0.4300″ Max Cutting Depth
124,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | Minimum Cutting Diameter (Inch): 3 |
| Minimum Cutting Diameter (mm): 76.20 | Maximum Cutting Diameter (Inch): 3 |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | Maximum Depth of Cut (Decimal Inch): 0.4300 |
| Arbor Hole Diameter (Inch): 1 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: 1206 | Cutter Style: TJ5Q |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Lead Angle: 90 | Rake: Negative |
| Series: TJ5Q | Maximum Ramping Angle: 0.3 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Keyway Width (Inch): 3/8 | Keyway Width (Decimal Inch): 0.3750 |
| Pitch Type: Close | Tool Application: Facing; Helical Interpolation; Ramping; Shouldering |
| Tool Performance: General Purpose | Primary Workpiece Material: Universal |
| Primary Workpiece Material Code: O | Cutting Edge Length (Decimal Inch): 0.4300 |
| Complete Insert Compatibility: ANHU1206… | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Manufacturers Catalog Number: TJ5Q-30R01 |
| Coolant Through: Yes | Number Of Cutter Inserts: 9 |
| Number Of Flutes: 6 | |
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | |
| Minimum Cutting Diameter (Inch): 3 | |
| Minimum Cutting Diameter (mm): 76.20 | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4300 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: 1206 | |
| Cutter Style: TJ5Q | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Rake: Negative | |
| Series: TJ5Q | |
| Maximum Ramping Angle: 0.3 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Keyway Width (Inch): 3/8 | |
| Keyway Width (Decimal Inch): 0.3750 | |
| Pitch Type: Close | |
| Tool Application: Facing; Helical Interpolation; Ramping; Shouldering | |
| Tool Performance: General Purpose | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: O | |
| Cutting Edge Length (Decimal Inch): 0.4300 | |
| Complete Insert Compatibility: ANHU1206… | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Manufacturers Catalog Number: TJ5Q-30R01 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 9 | |
| Number Of Flutes: 6 |
| MSC# | 50468529 |
| Mfr# | 3031352 |
