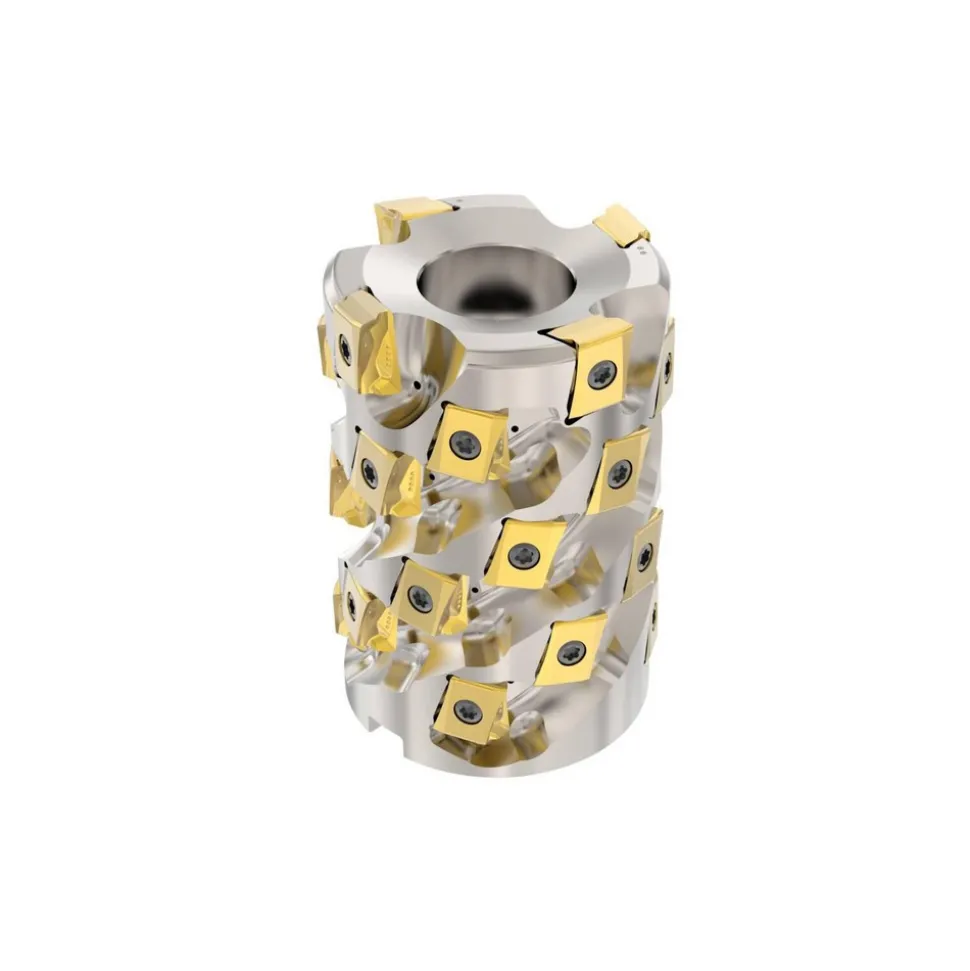

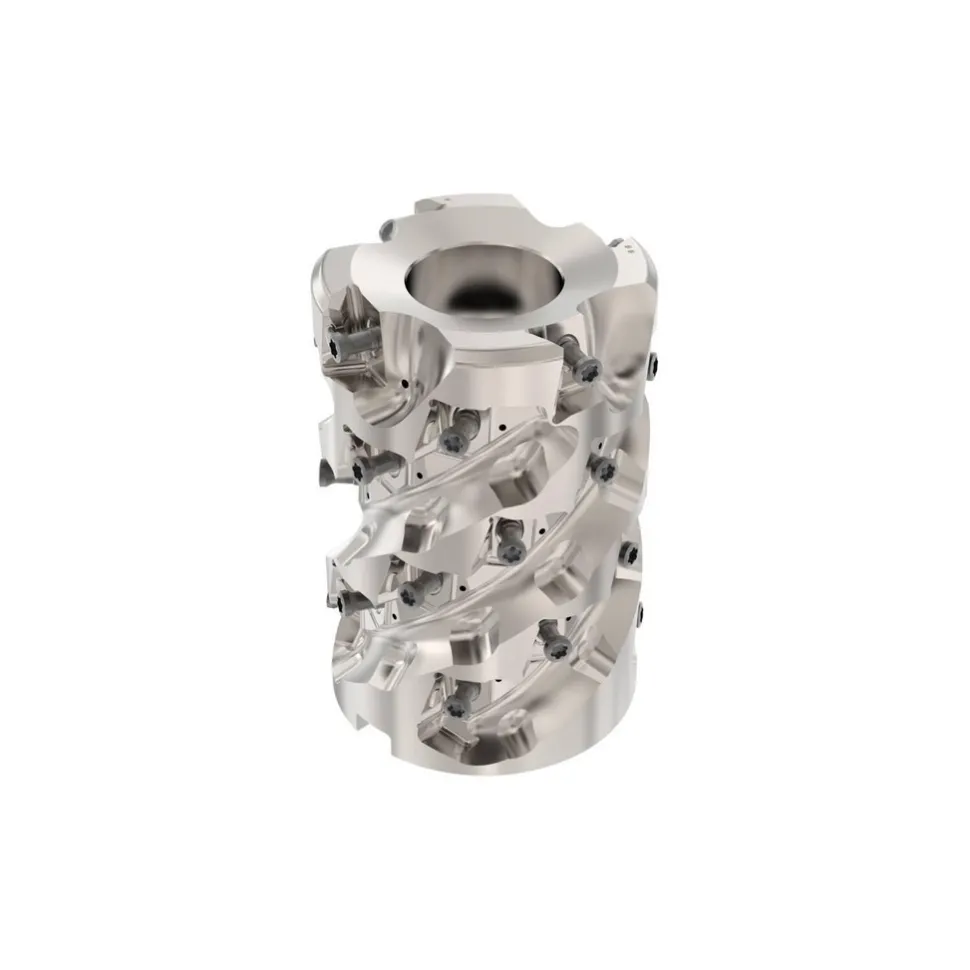

Indexable Square-Shoulder Face Mill: R220.9402.503.18LO124A, 2-1/2” Cut Dia, 1.0000″ Arbor Hole Dia, 3.1890″ Max Cutting Depth
136,89 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 2.5000 | Minimum Cutting Diameter (Inch): 2-1/2 |
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Cutting Diameter (Decimal Inch): 2.5000 |
| Maximum Depth of Cut (Decimal Inch): 3.1890 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: 1207.. |
| Cutter Style: R220.94 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 90 |
| Rake: Negative | Series: R220.94 |
| Maximum Ramping Angle: 0 | Maximum Body Diameter (Decimal Inch): 2.5000 |
| Overall Height (Decimal Inch): 3.6614 | Keyway Width (Decimal Inch): 0.3819 |
| Hub Diameter (Decimal Inch): 2.3661 | Pitch Type: Close |
| Maximum RPM: 8800 | Tool Application: Slotting; Shouldering |
| Tool Performance: General Purpose | Standards: ISO; ANSI |
| Number of Adjustable Pockets: 0 | Cutting Edge Length (Decimal Inch): 0.4720 |
| Minimum Insert Radius (Decimal Inch): 0.0160 | Complete Insert Compatibility: LOEX1207 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Manufacturers Catalog Number: 10215192 | Maximum Insert Radius (Decimal Inch): 0.2480 |
| Coolant Through: Yes | Number Of Cutter Inserts: 28 |
| Number Of Flutes: 4 | Country of Origin: France |
| Minimum Cutting Diameter (Decimal Inch): 2.5000 | |
| Minimum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.5000 | |
| Maximum Depth of Cut (Decimal Inch): 3.1890 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: 1207.. | |
| Cutter Style: R220.94 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Rake: Negative | |
| Series: R220.94 | |
| Maximum Ramping Angle: 0 | |
| Maximum Body Diameter (Decimal Inch): 2.5000 | |
| Overall Height (Decimal Inch): 3.6614 | |
| Keyway Width (Decimal Inch): 0.3819 | |
| Hub Diameter (Decimal Inch): 2.3661 | |
| Pitch Type: Close | |
| Maximum RPM: 8800 | |
| Tool Application: Slotting; Shouldering | |
| Tool Performance: General Purpose | |
| Standards: ISO; ANSI | |
| Number of Adjustable Pockets: 0 | |
| Cutting Edge Length (Decimal Inch): 0.4720 | |
| Minimum Insert Radius (Decimal Inch): 0.0160 | |
| Complete Insert Compatibility: LOEX1207 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Manufacturers Catalog Number: 10215192 | |
| Maximum Insert Radius (Decimal Inch): 0.2480 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 28 | |
| Number Of Flutes: 4 | |
| Country of Origin: France |
| MSC# | 87539904 |
| Mfr# | 10215192 |
