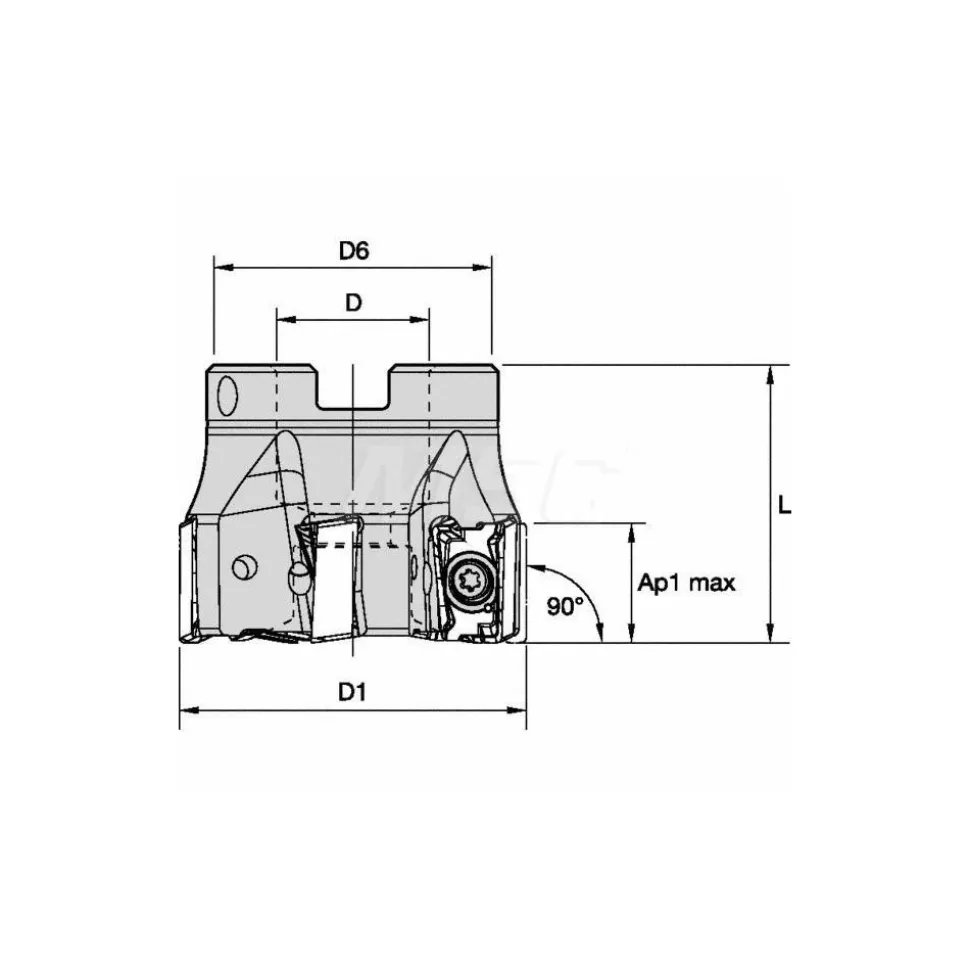

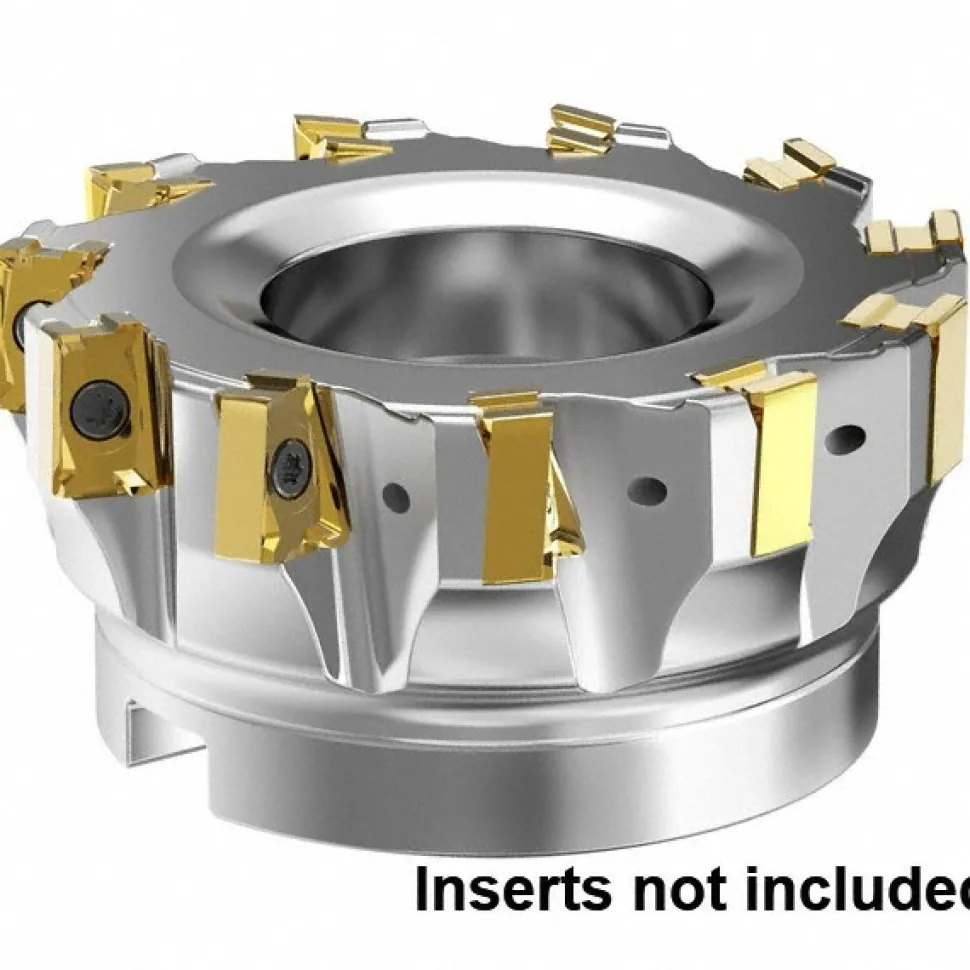

Indexable Square-Shoulder Face Mill: M4D300L1509S100L175, 3” Cut Dia, 1.0000″ Arbor Hole Dia, 0.6100″ Max Cutting Depth
128,99 $
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Cutting Diameter (mm): 76.20 | Maximum Depth of Cut (mm): 15.50 |
| Maximum Depth of Cut (Decimal Inch): 0.6100 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: LNGU15T608SRGE |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0 |
| Series: MILL 4-15 | Maximum Body Diameter (Decimal Inch): 2.8930 |
| Overall Height (mm): 44.45 | Overall Height (Inch): 1-3/4 |
| Overall Height (Decimal Inch): 1.7500 | Hub Diameter (mm): 55.63 |
| Hub Diameter (Decimal Inch): 2.1900 | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: Yes |
| Number Of Cutter Inserts: 9 | Number Of Flutes: 9 |
| Country of Origin: UNITED STATES | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Cutting Diameter (mm): 76.20 | |
| Maximum Depth of Cut (mm): 15.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.6100 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: LNGU15T608SRGE | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0 | |
| Series: MILL 4-15 | |
| Maximum Body Diameter (Decimal Inch): 2.8930 | |
| Overall Height (mm): 44.45 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Hub Diameter (mm): 55.63 | |
| Hub Diameter (Decimal Inch): 2.1900 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 9 | |
| Number Of Flutes: 9 | |
| Country of Origin: UNITED STATES |
| MSC# | 49963952 |
| Mfr# | 5568085 |
