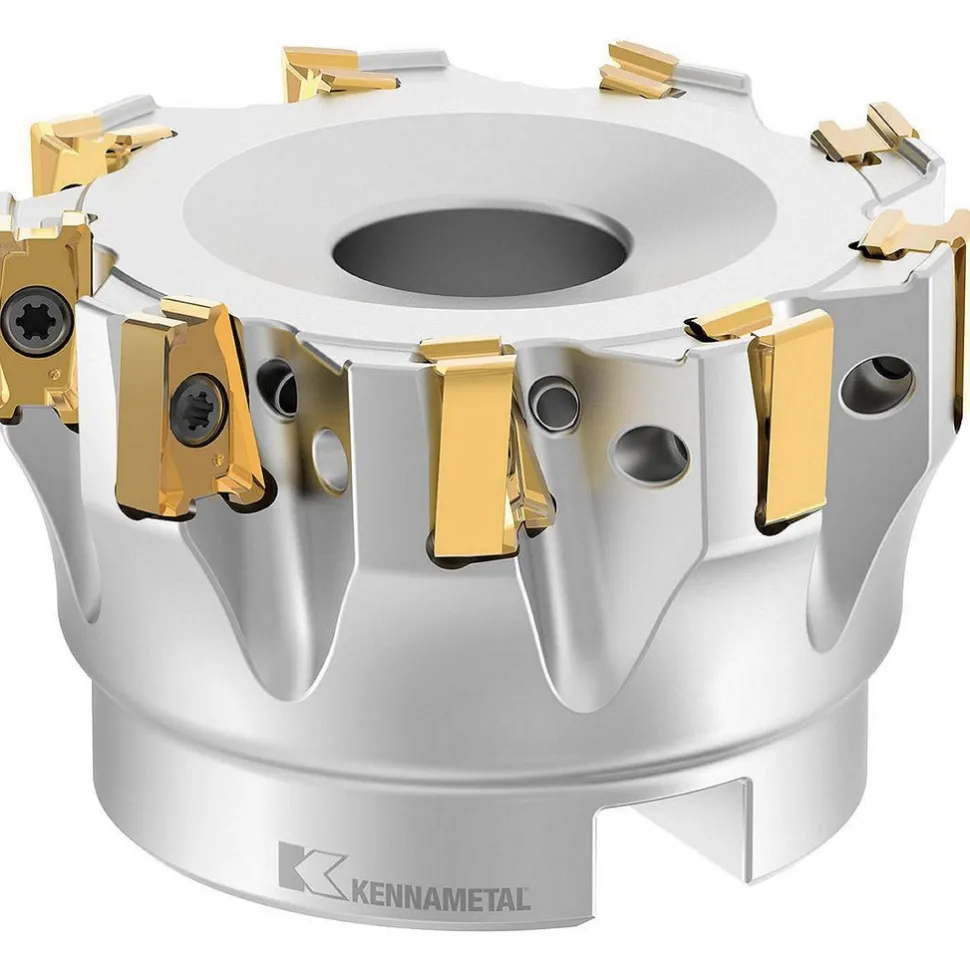

Indexable Square-Shoulder Face Mill: M4D300L1108S100L175, 3” Cut Dia, 1.0000″ Arbor Hole Dia,
Original price was: 1 042,00 $.132,89 $Current price is: 132,89 $.
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (mm): 11.00 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: LNGU110408SRGE |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0 | Rake: Negative |
| Series: Mill 4-11 | Maximum Body Diameter (Decimal Inch): 2.9170 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Coolant Hole Diameter (Decimal Inch): 0.0980 | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: Yes |
| Number Of Cutter Inserts: 8 | Number Of Flutes: 8 |
| Country of Origin: UNITED STATES | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (mm): 11.00 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: LNGU110408SRGE | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0 | |
| Rake: Negative | |
| Series: Mill 4-11 | |
| Maximum Body Diameter (Decimal Inch): 2.9170 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Coolant Hole Diameter (Decimal Inch): 0.0980 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 8 | |
| Number Of Flutes: 8 | |
| Country of Origin: UNITED STATES |
| MSC# | 38160990 |
| Mfr# | 6140063 |
