Sale!

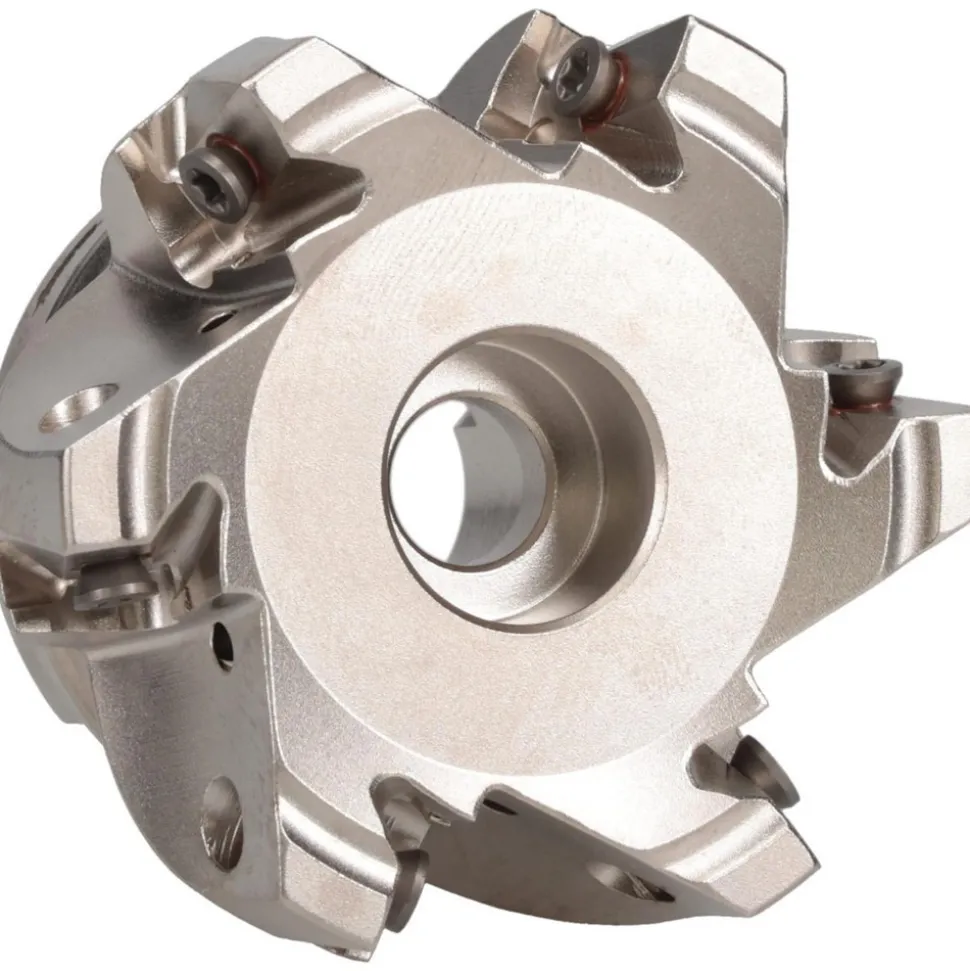

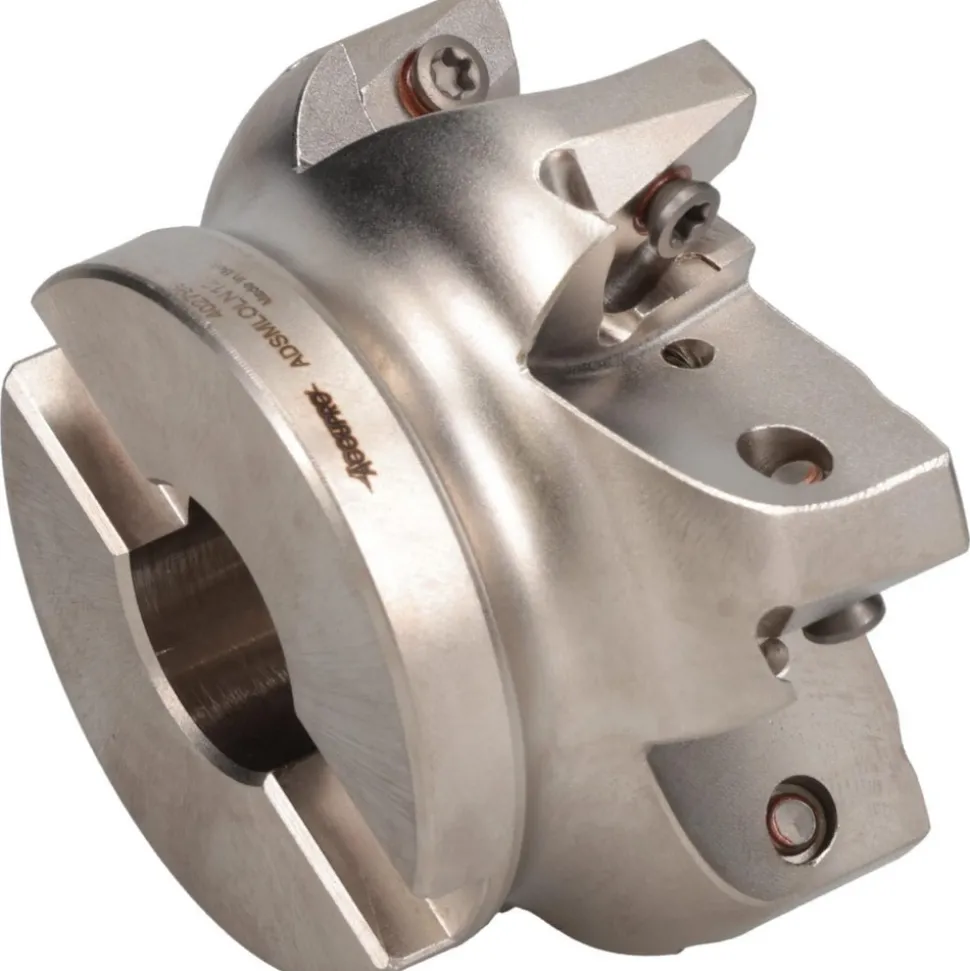

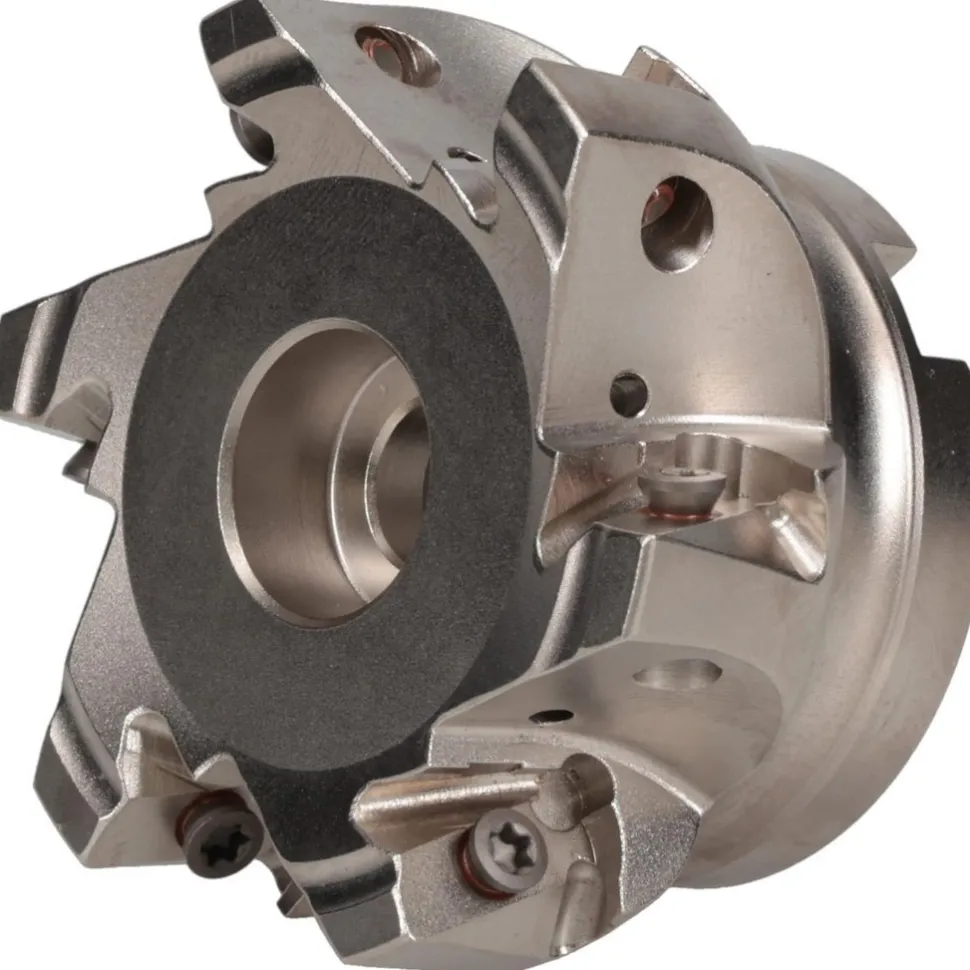

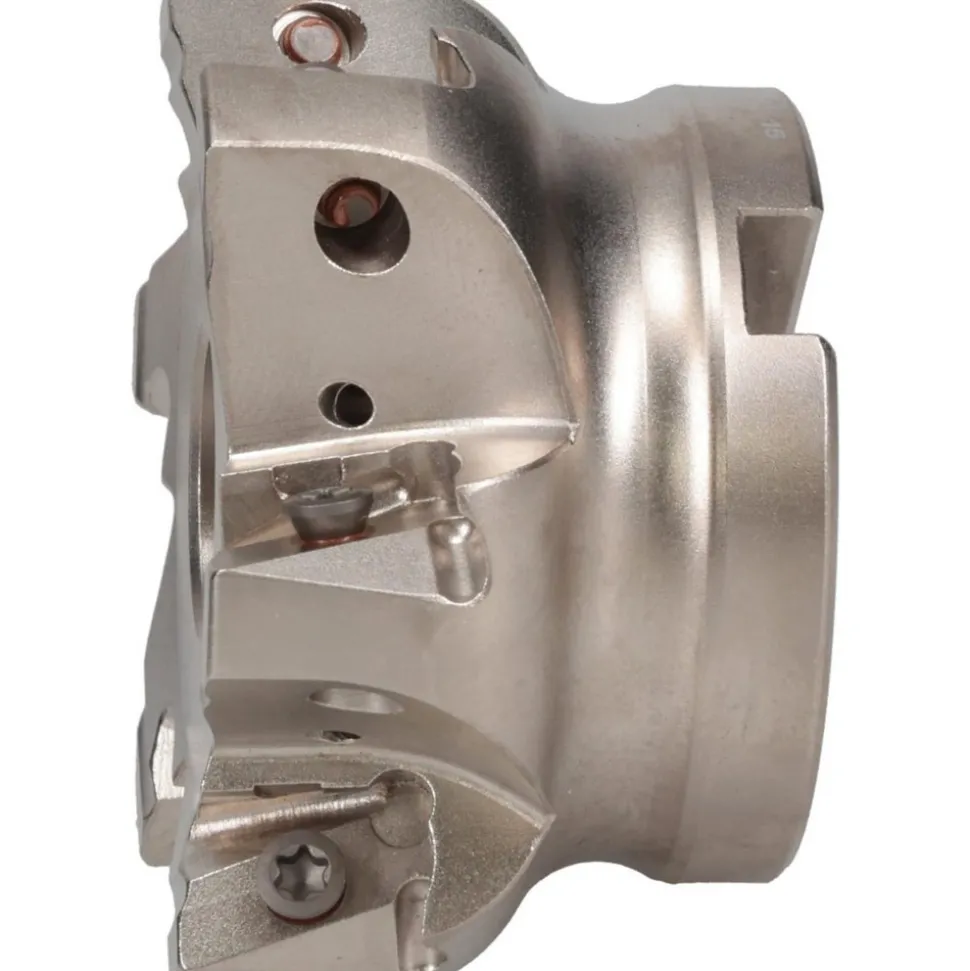

Indexable Square-Shoulder Face Mill: ADSMLOLN12250R06A07515, 2-1/2” Cut Dia, 0.7500″ Arbor Hole Dia, 0.4700″ Max Cutting Depth
Original price was: 581,00 $.136,89 $Current price is: 136,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 2.5000 | Maximum Cutting Diameter (Inch): 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch): 2.5000 | Maximum Depth of Cut (Decimal Inch): 0.4700 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: 12 | Cutter Style: ADSM |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Lead Angle: 0/90 | Rake: Positive |
| Series: CI | Maximum Body Diameter (Decimal Inch): 1.8897 |
| Overall Height (Decimal Inch): 1.5000 | Keyway Width (Decimal Inch): 0.3210 |
| Hub Diameter (Decimal Inch): 1.8897 | Maximum RPM: 13300.000 |
| Tool Application: Facing; Helical Interpolation; Plunging; Shouldering; Slotting; Ramping | Counterbore Diameter (Decimal Inch): 0.7500 |
| Complete Insert Compatibility: LOKU 552; LNKU 553 | UNSPSC Code: 31161500 |
| Toolholder Material: Steel | Coolant Through: Yes |
| Number Of Cutter Inserts: 6 | Number Of Flutes: 6 |
| Minimum Cutting Diameter (Decimal Inch): 2.5000 | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.5000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4700 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: 12 | |
| Cutter Style: ADSM | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Rake: Positive | |
| Series: CI | |
| Maximum Body Diameter (Decimal Inch): 1.8897 | |
| Overall Height (Decimal Inch): 1.5000 | |
| Keyway Width (Decimal Inch): 0.3210 | |
| Hub Diameter (Decimal Inch): 1.8897 | |
| Maximum RPM: 13300.000 | |
| Tool Application: Facing; Helical Interpolation; Plunging; Shouldering; Slotting; Ramping | |
| Counterbore Diameter (Decimal Inch): 0.7500 | |
| Complete Insert Compatibility: LOKU 552; LNKU 553 | |
| UNSPSC Code: 31161500 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 |
| MSC# | 40279903 |
| Mfr# | 40279903 |
