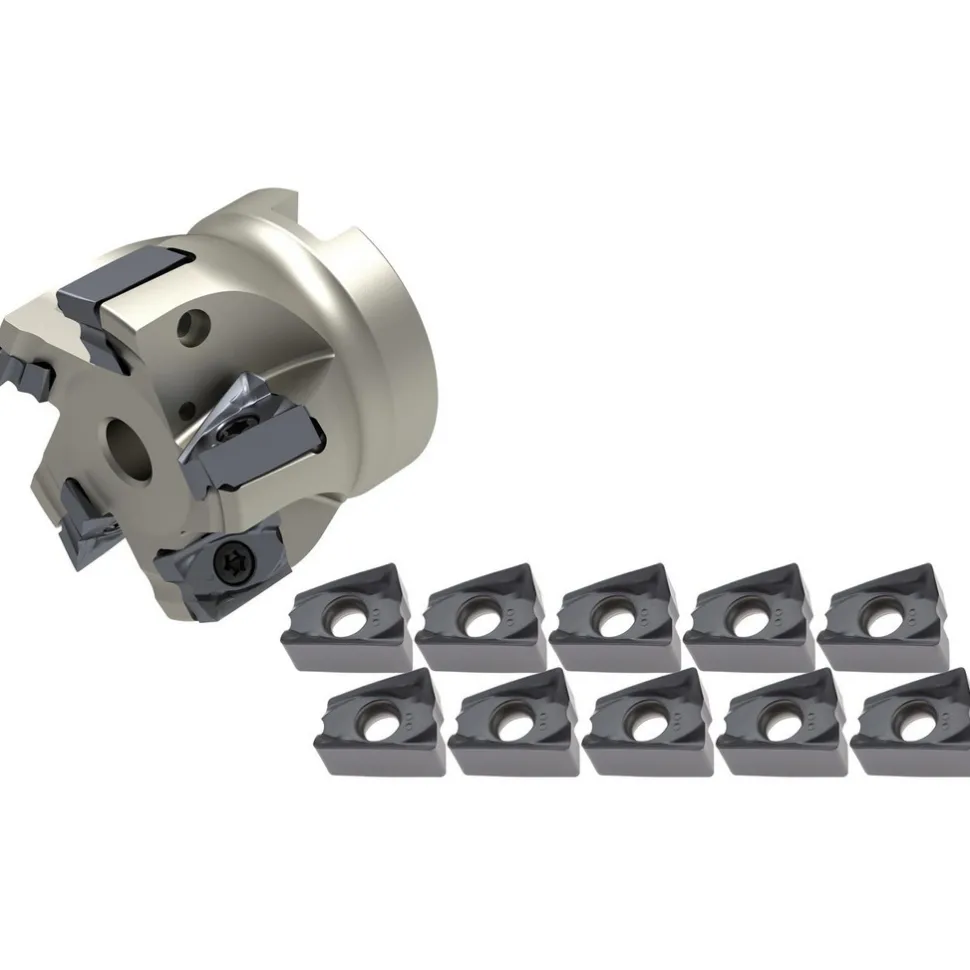

Indexable Square-Shoulder Face Mill: 11PC 40279903&ACP35M, 2-1/2” Cut Dia, 0.7500″ Arbor Hole Dia, 0.4724″ Max Cutting Depth
126,89 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 2.5000 | Maximum Cutting Diameter (Inch): 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch): 2.5000 | Maximum Depth of Cut (mm): 12.00 |
| Maximum Depth of Cut (Decimal Inch): 0.4724 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: 12 |
| Cutter Style: ADSM | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 0/90 |
| Rake: Positive | Series: CI |
| Maximum Body Diameter (Decimal Inch): 1.8897 | Overall Height (Decimal Inch): 1.5000 |
| Keyway Width (Decimal Inch): 0.3210 | Hub Diameter (Decimal Inch): 1.8897 |
| Maximum RPM: 13300 | Tool Application: Facing; Helical Interpolation; Plunging; Shouldering; Slotting; Ramping |
| Counterbore Diameter (Decimal Inch): 0.7500 | Complete Insert Compatibility: LOKU 552; LNKU 553 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: Yes | Number Of Cutter Inserts: 6 |
| Number Of Flutes: 6 | Includes: Index Square Shoulder Face Mill; (10) Carbide Milling Inserts |
| Country of Origin: Luxembourg | |
| Minimum Cutting Diameter (Decimal Inch): 2.5000 | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.5000 | |
| Maximum Depth of Cut (mm): 12.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.4724 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: 12 | |
| Cutter Style: ADSM | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Rake: Positive | |
| Series: CI | |
| Maximum Body Diameter (Decimal Inch): 1.8897 | |
| Overall Height (Decimal Inch): 1.5000 | |
| Keyway Width (Decimal Inch): 0.3210 | |
| Hub Diameter (Decimal Inch): 1.8897 | |
| Maximum RPM: 13300 | |
| Tool Application: Facing; Helical Interpolation; Plunging; Shouldering; Slotting; Ramping | |
| Counterbore Diameter (Decimal Inch): 0.7500 | |
| Complete Insert Compatibility: LOKU 552; LNKU 553 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Includes: Index Square Shoulder Face Mill; (10) Carbide Milling Inserts | |
| Country of Origin: Luxembourg |
| MSC# | 81951840 |
| Mfr# | 40279903/54029822 |
