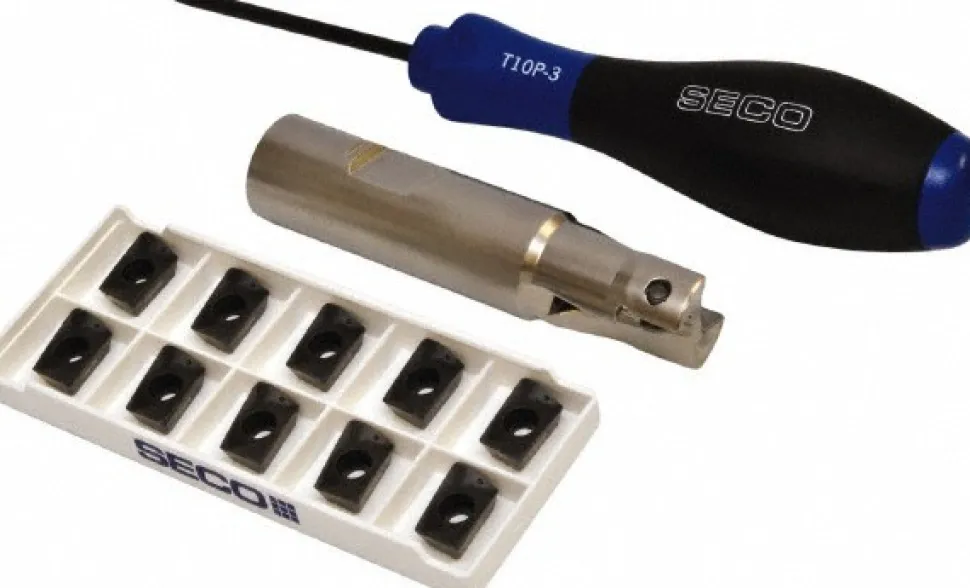

Indexable Square-Shoulder End Mill: R217.69-00.75-3-12-2A, 3/4″ Cut Dia, 0.433″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
122,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.3800 | Maximum Depth of Cut (Decimal Inch): 0.4330 |
| Cutter Style: R217.69-12A | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Series: Super Turbo |
| Lead Angle: 90 | Shank Length (Decimal Inch): 2.2000 |
| Head Length (Decimal Inch): 1.1700 | Maximum RPM: 23200 |
| Insert Compatibility: XO.X 1204.. | ISO Number: R217.69-00.75-3-12-2A |
| UNSPSC Code: 27112803 | Number Of Flutes: 2 |
| Number Of Cutter Inserts: 2 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.3800 | |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | |
| Cutter Style: R217.69-12A | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Series: Super Turbo | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.2000 | |
| Head Length (Decimal Inch): 1.1700 | |
| Maximum RPM: 23200 | |
| Insert Compatibility: XO.X 1204.. | |
| ISO Number: R217.69-00.75-3-12-2A | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 93761104 |
| Mfr# | 02628260 |
