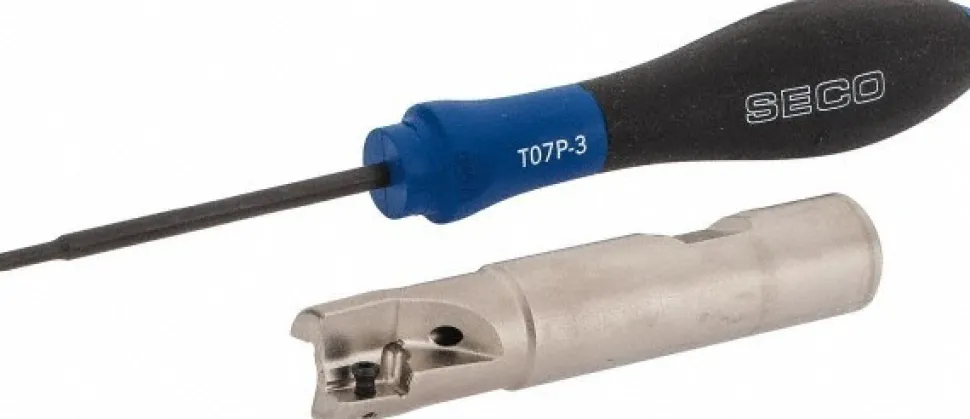

Indexable Square-Shoulder End Mill: R217.69-00.625-3-10-2A, 5/8" Cut Dia, 0.354" Max Depth of Cut, 5/8" Dia Weldon Flat Shank

Indexable Square-Shoulder End Mill: R217.69-00.625-3-10-2A, 5/8″ Cut Dia, 0.354″ Max Depth of Cut, 5/8″ Dia Weldon Flat Shank

134,89 $

SKU: SKUWKIHuiFHaZ Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Seco Brand: Seco

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 0.6250 in	Cutting Diameter: 5/8
Overall Length (Decimal Inch): 3.2520	Maximum Depth of Cut (Decimal Inch): 0.3540
Cutter Style: R217.69-10	Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.6250	Shank Diameter (Inch): 5/8
Insert Holding Method: Screw	Tool Material: Steel
Series: Turbo 10	Lead Angle: 90
Shank Length (Decimal Inch): 2.1690	Head Length (Decimal Inch): 1.0830
Maximum RPM: 29400	Tool Application: Milling
Rake: Negative	Complete Insert Compatibility: XOEX; XOMX
Insert Compatibility: XO.X 10T3..	ISO Number: R217.69-00.625-3-10-2A
UNSPSC Code: 27112803	Manufacturers Catalog Number: R217.69-00.625-3-10-2A
Number Of Flutes: 2	Usable Length (Decimal Inch): 2.2990
Number Of Cutter Inserts: 2	Coolant Through: Yes
Country of Origin: India
Cutting Diameter (Decimal Inch): 0.6250 in
Cutting Diameter: 5/8
Overall Length (Decimal Inch): 3.2520
Maximum Depth of Cut (Decimal Inch): 0.3540
Cutter Style: R217.69-10
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.6250
Shank Diameter (Inch): 5/8
Insert Holding Method: Screw
Tool Material: Steel
Series: Turbo 10
Lead Angle: 90
Shank Length (Decimal Inch): 2.1690
Head Length (Decimal Inch): 1.0830
Maximum RPM: 29400
Tool Application: Milling
Rake: Negative
Complete Insert Compatibility: XOEX; XOMX
Insert Compatibility: XO.X 10T3..
ISO Number: R217.69-00.625-3-10-2A
UNSPSC Code: 27112803
Manufacturers Catalog Number: R217.69-00.625-3-10-2A
Number Of Flutes: 2
Usable Length (Decimal Inch): 2.2990
Number Of Cutter Inserts: 2
Coolant Through: Yes
Country of Origin: India
